Specifications
1, soft drink mixing machine.2, 5000 L/H
3, automatic controlling system
4, good quality stainless steel made

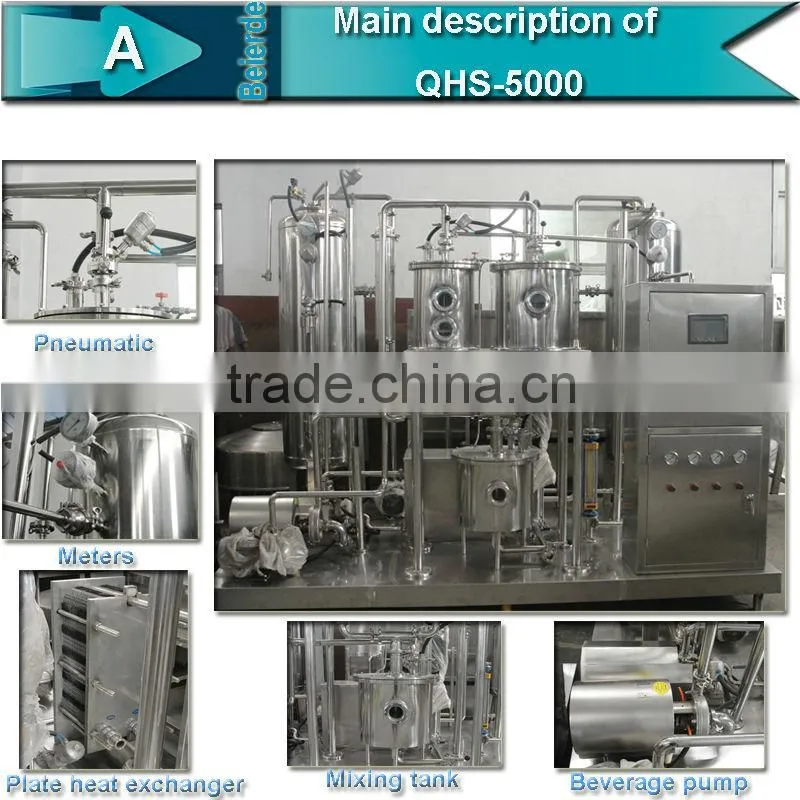

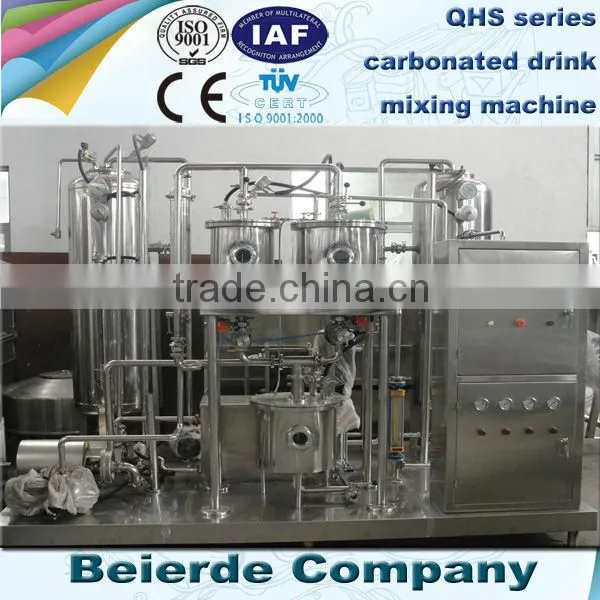

QHS-5000 series carbonated drink mixing machine is the key equipment in the carbonated drink processing line. It can mix water, syrup and carbon dioxide together. Not only mixing, it also can adjust the proportion of above mixing material. It is normally used in the lemon drink, cola drink and carbonated juice drink processing lines.
Model |
QHS-5000 |
Capacity |
5000 liters per hour |
Proportion between syrup and water |
1:3 to 1:10 |
Gas volume: (CO2:H2O) |
> 2,5:1 |
Cool water entrance temperature (°C) |
3 to 5 |
Cool water entrance pressure |
0,01 to 0,08 MPa |
Syrup entrance pressure |
0,01 to 0,08 MPa |
CO2 Entrance pressure |
0,7 to 0,8 MPa |
Carbonization pot, syrup pot pressure |
0.05 to 0.08 MPa |
Dimension (mm) |
1500×1300×1850 |
Total Power (KW) |
1.5 |
Total Weight (Kg) |
600 |
Model |
QHS-1500 |
QHS-2500 |
QHS-4000 |
Capacity (L/H) |
1500 |
2500 |
4000 |
Proportion between syrup and water |
1:3 to 1:10 |
||
Gas volume: (CO2:H2O) |
> 2,5:1 |
||
Cool water entrance temperature (°C) |
3 to 5 |
||
Dimension (mm) |
1200×800×2000 |
1500×1000×1900 |
1600×1200×1900 |
Total Power (KW) |
2.42 |
3 |
5.2 |
Total Weight (Kg) |
400 |
800 |
900 |
