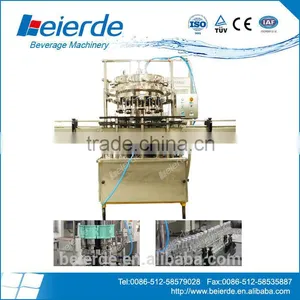

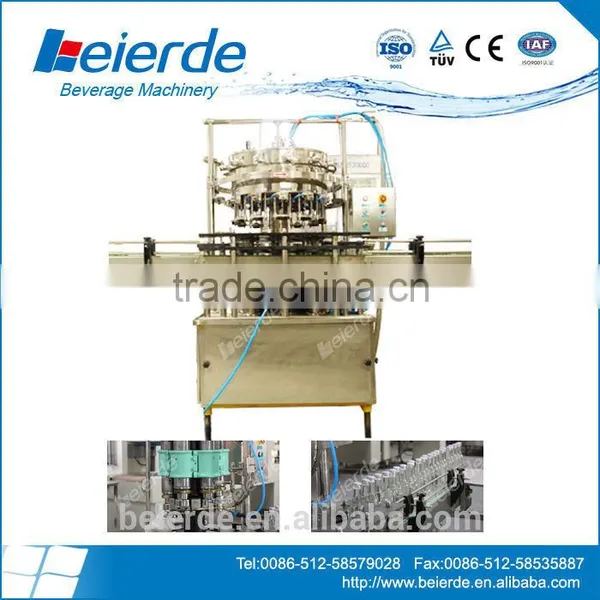

Introduction of 4000 Bottles per hour small production processing Beer filling machine
(1) This type of beer filling machine is a specific design concept which combination of three mechanical part in terms of washing, filling and sealing.
(2) Beer filling machine is applicable for plastic bottles, Glass bottles and pop top Can bottles. The range of capacity is from 2000 BPH to 3,3000BPH.
(3) Beer filling machine consists of air conveyor, base conveyor and bottle evaluator.
(4) The concept design considers three factors with regard to ease of operation, ease of cleaning and low cost.
Description of 4000 Bottles per hour small production processing Beer filling machine
1. The Washing Part
This part is used for washing the inside of the bottle (glass or PET) to ensure achieving the Hygeia standard of local nations.
2. The Filling Part
The Filling Part is composed of the filling valve, filling tank and some assistant element. It is the key component of Beer filling machine.
3. The Capping Part
The capping part is composed of 3 sets of screw head, capping transmission part, cap unscramble.
Specification of 4000 Bottles per hour small production processing Beer filling machine
| Model | BGF14124 | BGF186 | BGF248 | BGF328 |
| The number of Washing, Filling, Capping | 14-12-4 | 18-18-6 | 24-24-8 | 32-32-8 |
|
Producing capacity: The number of bottle(500ml)/hour |
2000 | 3000 | 5000 | 8000 |
| Applicable bottle specifications (mm) | H=170-320 |
Φ=50-100 (330∼1500ml) |
||
| Pressure ( MPa) | 0.25-0.3 | |||
| General power (kw) | 1.5+0.37 | 2.2+0.37 | 3+0.45+0.25 | 4+0.45+0.25 |
| Overall dimension (mm) (L×W×H) | 2300×1680×2650 | 2500×1760×2650 | 3100×2100×2650 | 3800×2800×2650 |
| Weight(kg) | 2600 | 3500 | 4800 | 6500 |
How to enquiry and place an order?
Please write you request on email and the content as more as details you can, we would respond within 24 working hours. In particular, bottle size (250ml-1500ml), bottle material (Glass bottle, PET bottle or pop top can) and production capacity.
- What kinds of beverage will you make?
- How many bottles per hour are you prefer?
- Bottle volume, Bottle material, bottle shape and the neck diameter of bottle?
- A single machine or a whole production line
- Any response within 24 hour
- Airport pick up service
- Good after sale service
