GQF series 5 gallon mineral water filling line has included the automatic cap removing machine, barrel inner and external washing, cleaning unit, water clean, drop, filling and cap sealing unit and filled bottles packing machines.
The whole unit has included the washer, dryer, filler and capper. It is used for the production of 3-5 gallon barreled drinking water. The washing process includes alkali liquid inside and outside washed by dirty remover, inside and outside washed by disinfecting water and pure water. The whole washing, filling and sealing process is controlled by PC, and has the safe device for interlock, signal and self-detection. The whole unit is made of the stainless steel and meets the demands of food hygiene, with reasonable structure, easy operation and exact action. It's the ideal equipment for the barreled water.
| Machine model | QGF-300 |
| Capacity | 300 BPH (5 gallon or 3 gallon) |
| Suitable bottle type | PC/PE 5 gallon or 3 gallon bottle |
| Suitable cap type |
HDPE cap |
| Filling liquid | drinkable water |
| Filling Precision | 1% (Liquid Level) |
| Bottle conveying type | conveying belt |
| Bottle washing type | outside washing, inside washing, sterilized water inject washing, dropping |
| Bottle filling type | normal pressure filling type, without leaking |
| Bottle sealing type | belt type cap sealing |

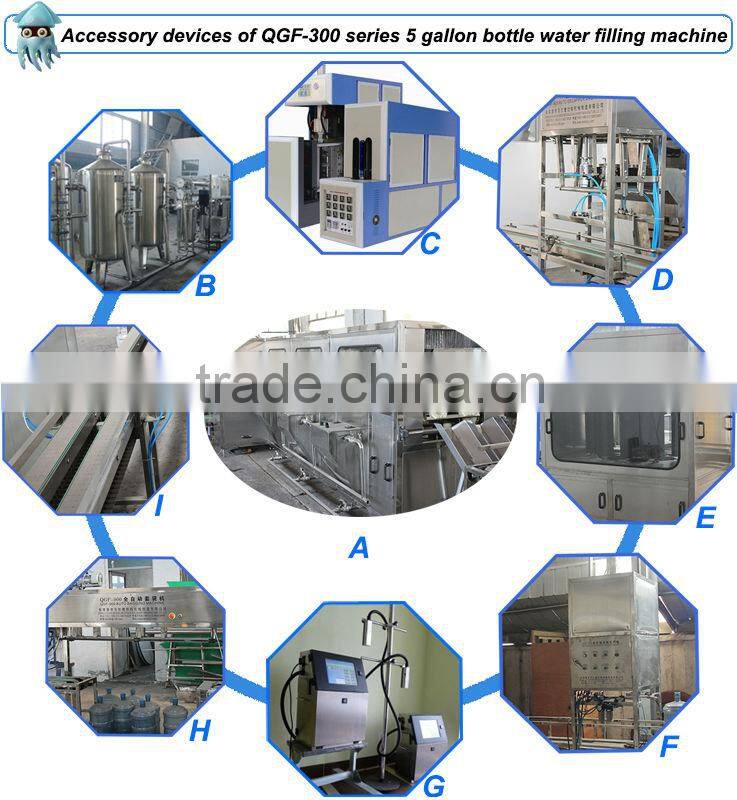

A: QGF-300 series 5 gallon/3 gallon bottled water washing,filling and capping machine
B: Water treatment system
C: 5 gallon/3 gallon bottle blowing machine
D: Automatic cap removing machine
E: Automatic bottle outside brushing and washing machine
F: Automatic bottle inside brushing and washing machine
G: Automatic date printer
H: Automatic bottle lifting and bag packing machine
I: Filled bottle conveying system
Model |
QGF-100 |
QGF-600 |
CGF-900 |
Capacity (5 gallon/ 3 gallon) |
100-120 |
600-650 |
900-950 |
Washing position |
1 |
4 |
6 |
Filling position |
1 |
4 |
6 |
Capping position |
1 |
belt type pressing capping |
|
Suitable cap |
HDPE cap |
||
Suitable bottle |
5 gallon or 3 gallon bottle |
||
Filling pressure |
normal pressure filling type |
||
Bottle/standard |
Circle bottle |
||
Overall dimensions(mm) |
3500×500×1500 |
4000×1800×1700 |
4000×2400×1700 |
Weigh(kg) |
700 |
2100 |
3500 |
Power(kw) |
1.5 |
5.5 |
7 |
Zhangjiagang Beierde beverage machinery manufacturer Co., Ltd. is a professional beverage machinery manufacturer.
Main products are:
1. 2,000-20,000 BPH Drinkable Water Bottling Line
2. 2,000-20,000 BPH Hot Bottling Line
3. 2,000-15,000 BPH Carbonated Beverage Bottling Line
4. 100-2,000 Barrels/Hour 3-Gallon & 5-Gallon Water Filling Line
5. PET Preform Injector and Bottle Blow Moulding Machine
6. 1-30 Ton per hour Water Treatment
7. 1-20 ton per hour juice and carbonated drink preparing system
