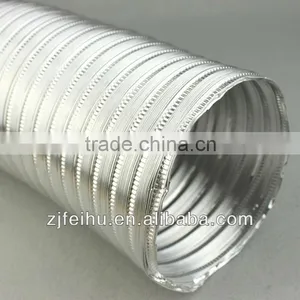

high quality aluminium foil flexible fire resistant duct hose
Material:
aluminum foil
Specifications:
1) single layer of aluminum foil strengthened with high tensile steel wire helix
2) extremely flexible and high elasticity
4) round style and easy install with oval or round connection
Quick Details:
| item no. | FH-5005S |
| brand | FeiHu/OEM |
| material | aluminum foil |
| color | silvery grey |
| standard | ROHS/ISO |
| thickness | 0.2-0.4mm |
| diameter | 75-200mm |
| length | as request |
| packing | PE or net bag |
| MOQ | 500meters |
| payment | L/C,T/T |
| delivery time | 25~30 days after received the deposit |
| application | suitable for central-conditioner,factory equipment and ventilation for kitchen |
| working temperature | -30°C to+140 °C |
article no. |
size (inch) |
I.D. (mm) |
wall thickness (mm) |
working pressure (bar) |
bursting pressure (bar) |
FH-080 |
3 |
80 |
0.4 |
5 |
20 |
FH-102 |
4 |
102 |
0.4 |
5 |
16 |
FH-120 |
4-3/4 |
120 |
0.4 |
5 |
16 |
FH-127 |
5 |
127 |
0.4 |
4 |
13 |
FH-152 |
6 |
152 |
0.4 |
4 |
12 |
FH-165 |
6-1/2 |
165 |
0.4 |
4 |
112 |
FH-202 |
8 | 203 |
0.4 |
4 |
12 |
FH-254 |
10 | 254 |
0.4 |
5 |
11 |
FH-305 |
12 | 305 |
0.4 |
5 |
11 |
FH-315 |
12-1/2 | 315 |
0.4 |
5 |
11 |
FH-352 |
14 | 352 |
0.4 |
5 |
11 |
FH-402 |
16 | 402 |
0.4 |
5 |
11 |
FH-450 |
18 | 450 |
0.4 |
5 |
11 |
FH-500 |
20 | 500 |
0.4 |
5 |
11 |
Material:
aluminum foil
Features:
1 good softness, light weight, highly flexible and compressible rate:10:1
2 single layer of aluminium foil strengthened with high tensile steel spring wire with small bending radius
3 medium pressure resistance, non-flammable, corrosion resistance, excellent resistance to chemical resistance, hydrolysis resistance,acid-alkaline resistant
4 excellent stability and flexibility under performance
5 heat and fire resistant: Class B1 (GB8624)
6 max air velocity: 30M/S
7 working pressure: 2500Pa
Working temperature range:
-30°C to+140 °C
Application:
widely used for low and medium pressure central HVAC systems and ventilation systems, industrial air movement and fume control applications, extraction of chemical fumes, transfer of hot and cold air ,ventilation and exhaust for central air conditioning, factory equipment, vehicle construction, engine construction, bathroom,confined space, tumber dryer,rangge hood, water heater, fanner, ventilator in industrial and household application, etc.
