Help CenterAluminium Spigot Truss.hight Quality,Decorative Truss
Related Products
-
Aluminium Lights Truss,curved TrussUS$ 1 - 2MOQ: 15 Meters -
Aluminum 6082-T6 Truss Stage Curved TrussUS$ 1 - 2MOQ: 15 Meters
-
New Exhibition Concert Entertainment Aluminum Stage Curved Truss Quality ChoiceUS$ 1 - 2MOQ: 15 Meters
-
Hot Selling Aluminium Used Stage TrussUS$ 1 - 2MOQ: 15 Meters
-
Lighting Decoration Aluminum Curved TrussUS$ 1 - 2MOQ: 15 Meters
Specifications
Aluminium spigot truss.hight quality,Decorative truss1Aluminum 6082-T6
2connect by conical couplers
3Building truss

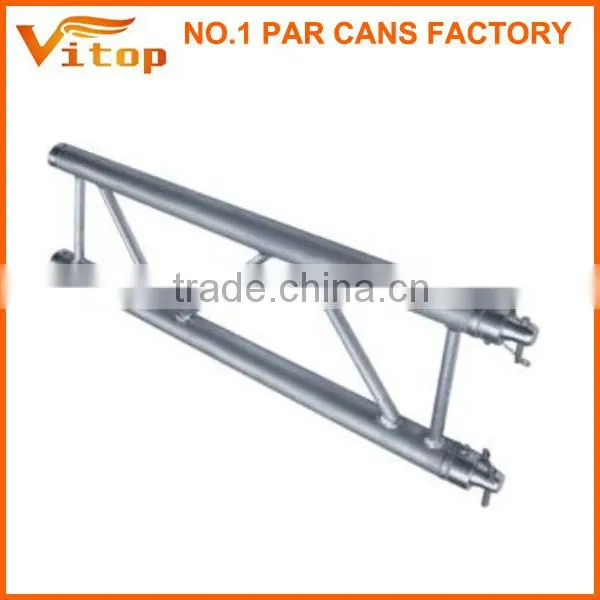

Aluminium spigot truss.hight quality,Decorative truss
Material size details:
1. 220*220mm(GF20-AD) 2. 220*220mm(GF20-AT) 3. 32*220mm(GF-AS) etc.
Spigot to connect the standard aluminum alloy
Material: Aluminum 6082/T6
Main Tube(diameter * thickness): 32 * 2.0T mm
Sub-main Tube (diameter * thickness): 10 * 2.0T mm
Brace Tube (diameter * thickness): 10 * 2.0T mm
Single length: 1m, 2m, 3m, 4m,and so on
1. 220*220mm(GF20-AD) Loading Data
| Span(meter) | 1 | 2 | |||||||||
| Centre Load | 95 | 10 | |||||||||
| Deflection | 20 | 25 | |||||||||
| Separately Load | 95 | 8 | |||||||||
| Deflection | 20 | 38 |
2. 220*220mm(GF20-AT)
| Span(meter) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Centre Load | 225 | 196 | 138 | 103 | 80 | 64 | 52 | 44 | 38 | 31 | 27 | 28 |
| Deflection | 1 | 2 | 5 | 10 | 15 | 22 | 29 | 39 | 46 | 58 | 70 | 87 |
| Separately Load | 325 | 160 | 91 | 49 | 29 | 23 | 20 | 12 | 9 | 8 | 6 | 4 |
| Deflection | 1 | 3 | 7 | 12 | 19 | 27 | 37 | 46 | 58 | 72 | 88 | 98 |
3. 32*220mm(GF20-AS)
| Span(meter) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Centre Load | 370 | 358 | 336 | 248 | 193 | 160 | 138 | 116 | 100 | 86 | 76 | 68 |
| Deflection | 1 | 3 | 6 | 11 | 17 | 25 | 34 | 45 | 57 | 70 | 85 | 101 |
| Separately Load | 370 | 183 | 116 | 87 | 68 | 50 | 39 | 30 | 23 | 19 | 14 | 12 |
| Deflection | 1 | 3 | 8 | 14 | 22 | 31 | 43 | 56 | 71 | 87 | 101 | 118 |
Style:straight frame, round frame, arc frame
Color: Optional.
Connection: screw or bolt
Canopy:sun canopy ,rain canopy. no canopy
Remark:
we have advanced facility, technology and experience management system, specialized in various truss.we design, making-up, setting-up to meet your satisfaction, we can assure that design the most suitable truss for you. If you are interested in our products, please kindly add my skype:vitoplight1 tele:13539847625/13686781703.
Product of decorative truss:
Truss shape:
Successsful project:
