Aluminium Bolts Truss / Light Truss / Heavy Duty Volt Truss Quality Choice

Specifications

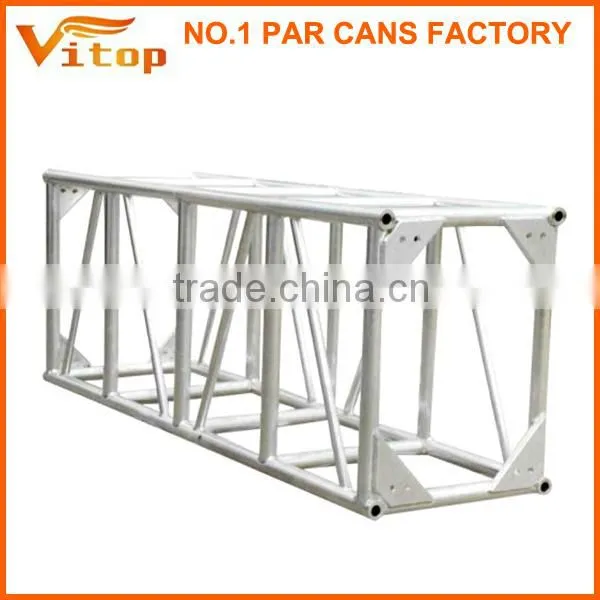

Aluminium Bolts Truss
1.Extremely hign tensile Aluminium material
2.Highly polished surface
3.Safe reliable and stable

Aluminium Bolts Truss / Light Truss / Heavy Duty Volt Truss



1. Aluminum Bolt Square Truss/ heavy duty truss

2. mian tube: 50x4/3mm, vice tube: 50x3/2mm, brace tube: 50x2mm

3. Truss material: aluminum 6061-T6.

4. It is use for move hand light, speraker and audio.

5. Connect way: bolt accessories

6. Length: 0.5m to 4m.

7.Size:500X600mm

8.Truss Roof Project Span Length: 12m, 14m, 15m, 16m, 18m, 20m, 23m, 26m

9.Loading: 300kg, 380kg, 475kg, 500kg, 550kg, 600kg, 1000kg, 1500kg

10.Conector: Bolt, Conical Coupler

11. Cross Section type: Flat, Triangle, Square



Truss Fuction:

Truss system	to hold events
booth truss	to hang Led
fair truss	to hang lamps
expo truss	to hang laser lights
exhibition truss	to hang par lights
lamp truss	to hang spotlight
lighting shelf	for LED

Light exhibition truss	150*150mm	200*200mm	250*250mm	287*287mm	300*300mm
Medium size truss	300*400mm	350*350mm	400*400mm	450*450mm	400*500mm
Heavy duty truss	500*500mm	500*600mm	550*550mm	520*760mm	600*950mm
Main Tube	50*4mm	50*3mm	50*2.5mm	50*2mm	50*5mm
Brace Tube	30*3mm	30*2mm	25*3mm	25x2mm
Length	1m	2m	2.5m	...................	As the size of truss

Aluminum screw truss detail:

Circle Truss types:

Aluminum spigot truss detail:



Outdoor large concert tent covering truss:
