natural gas tip-over protection gas heaters TBK-GE01

Specifications

natural gas tip-over protection gas heaters
1) Gas & electrical room heater
2) Mobile heater
3) With quartz tube
4) Safety

Model TBK-Ge01



natural gas tip-over protection gas heaters



Features of mobile gas heater with quartz tube

1.Electric and Gas room heater

2.Infrared, fast heating, energy saying, safty

3.Heating area:30-60 aquare meters

4.With piezo-electric ignition, easy operation Pulser ignition using battery is optional

5.Equiped with flame-failure protection device

6.Space for gas cylinder up to 15kg

7.Gas pressure:2.8-3.7 kpa

8.Castors for easy moving

9.Tip-over switch is optional

10.Slim back cover is optional(whole body thickness is only 28cm)

11.Electric heating using 3 quartz heating tubes, three power setting (440W/880W/max.1320W)

12.Gas heating, with 3 ceramic heating plates, three power setting(1400W/2800Wmax.4200W)

13.Gas heater lpg

14.Gas heaters vented







Technical Data

.

Model	TBK-Ge01
Gas type	LPG/Butane-Propane/Natural gas
Electric Rated Power	1320W/880W/440W
Gas Input	4200W/2800W/1400W
Gas Consumption	300g/h(max)/200g/h(mid)/100g/h(min)
Heating Area	30-60sqm
Product Size	730*430*370mm(slim model 730*430*280mm)
Packing Size	755*460*410mm(slim model 755*460*320mm)
Net/Gross weight	10.5/11.5kg(slim model 10.1/11.1kg)
Loading Qty	510pcs/40hq,210pcs/20ft(slim model 625pcs/40hq,260pcs/20ft)

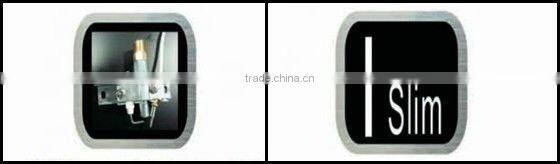

Compoment



           Piezo-electric ignition(standard)                     Pulser ignition(optional)





                    3 powers selection                                      Tip over swith(optional)





      ODS(oxygen-deficiency safety)          Slim version is optional(only 28cm thick)

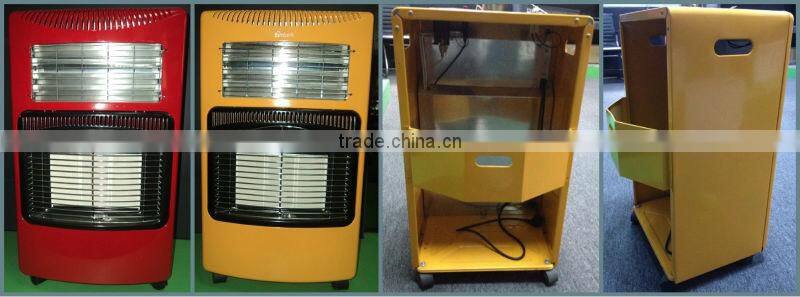

Product photo
