TBK020 Series Appearance Design Patent No.2041111

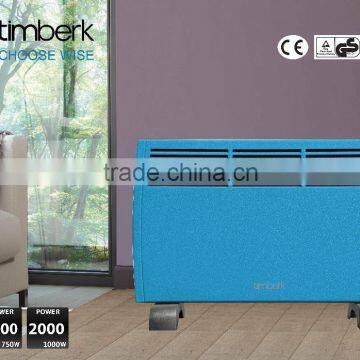

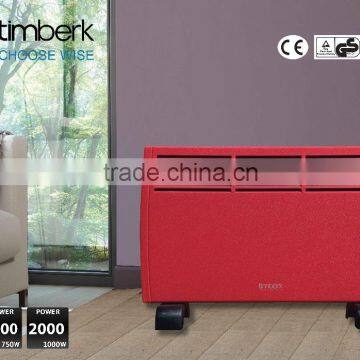

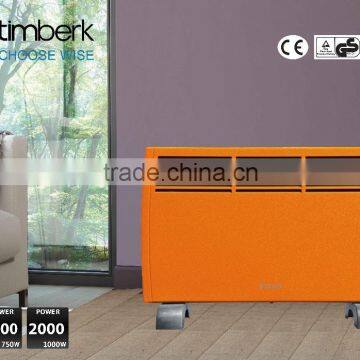

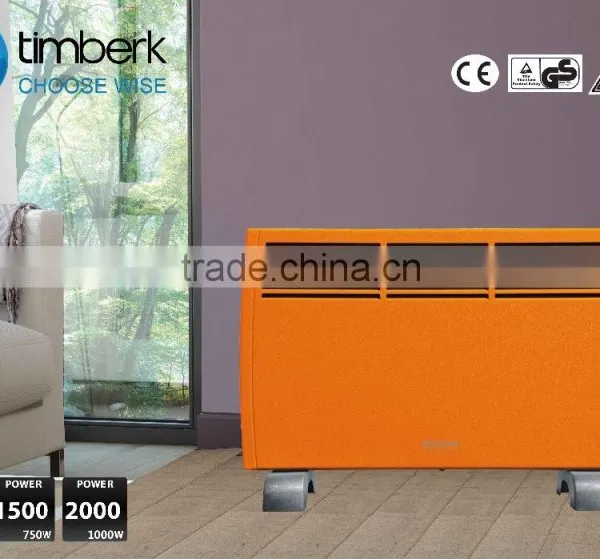

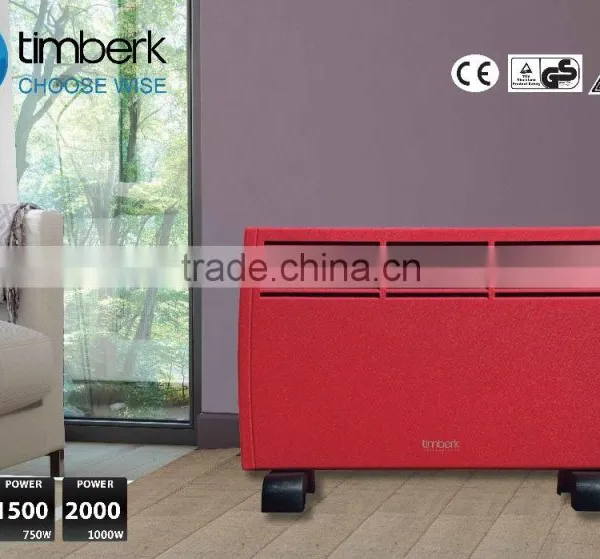

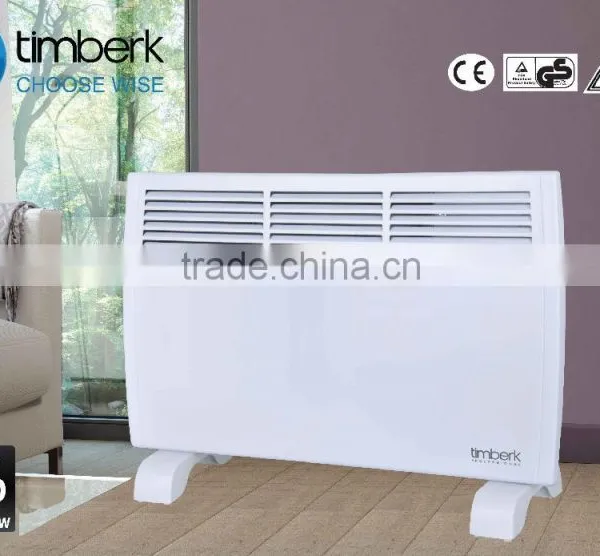

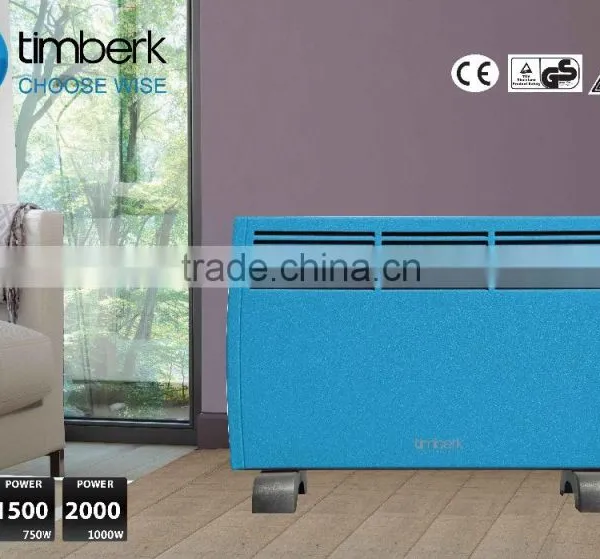

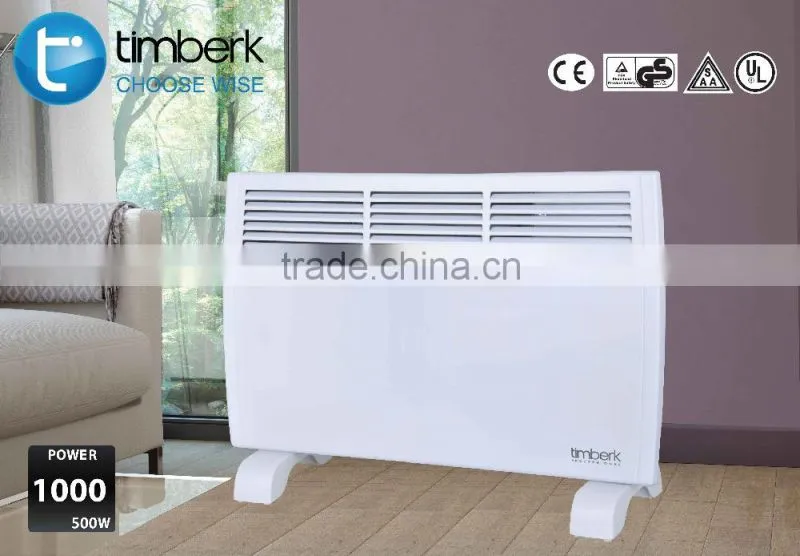

Silent bedroom panel electrical heater
Model TBK020-M05
Features of Silent bedroom panel electrical heater
1.Scandinavian size design, Slim and compact, Unique structure, body thickness is only 57mm
2.Sheathed aluminum heating element for durability and efficient heating transfer
3.Working silently, with rapid, wide-spread and even airflow transfer
4.Water splash proof,IP24 approval, can be installed in bathroom(optional)
5.Over-heat safety protection
6.With electronics thermostat for temperature setting
7.LED Digital control with remote control for easy operation. Also there's mechanical control type for easy control(optional with lower price)
8.Ionizer for heath care and nature environment (optional)
9.Humidifier lets you feel comfort, avoid dry air (optional)
10.Tip-Over safety protection for floor-standing type, back handle for easy and safety moving(optional)
11.Towel dryer for rapid clothes drying (optional)

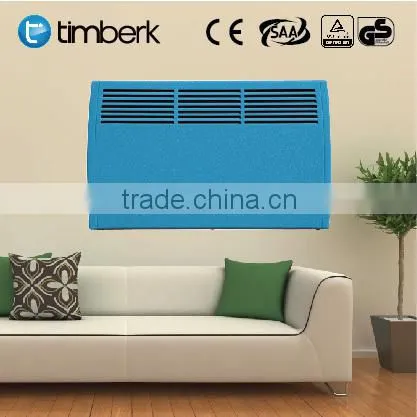

12.Easy to install by wall mounted bracket or castors for free standing (optional)

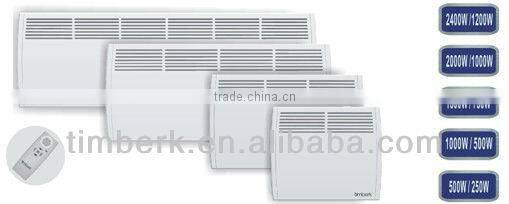

Model |
TBK020-M05/E05/D05 |
TBK020-M10/E10/D10 |
TBK020-M15/E15/D15 |
TBK020-M20/E20/D20 |
TBK020-M25/E25/D25 |
Power(2 mode) |
500W/250W |
1000W/500W |
1500W/750W |
2000W/1000W |
2500W/1250W |
Heating Area(sqm) |
10-14 |
14-16 |
18-20 |
22-26 |
26-30 |
Product Size(mm) |
476x57x400 |
656x57x400 |
930x57x400 |
1267x57x400 |
1267x57x400 |
N.W.(Kg) |
4.7 |
5.7 |
6.8 |
8.7 |
8.8 |
Control Panel |
Mechanical Panel; LED panel(for option); LCD panel(for option) |
||||
|
Optional function & parts |
IP 24 additional protection; Remote Control(Additional for LED control); Tip-over switch function for free-standing type; Ionizer function; Towel dryer rack / Humidifier box; |
||||
LED Panel with remote control
1. LED display
2. Adjustable temperature in Normal and Economic setting modes
3.Thermostat for temperature setting and automatic control (5°C-30°C)
4.Timer 24 hours
5.User setting memory function
6.Anti-frost function
7.3 power selection:Economy, Normal,Express
8.Child safety lock
9.Convenient remote control
Mechanical Panel
1. ON/OFF switch
2. 3 power mode(economic mode, normal mode) for selection by knob
3. Temperature adjusting control by knob
LCD Panel control
1. LCD display
2. Adjustable temperature in Normal and Economic setting modes
3.Thermostat for temperature setting and automatic control (5°C-30°C)
4.Timer 24 hours
5.12 pre-set programs available, 1 user setting program
6.Program and real-time clock memory function
7. Seven days(one week) * 24 Hours consecutive working
8.Anti-frost function
9.3 power selection:Economy, Normal,Express
10.Child safety lock
Floor standing type: Back handle, plastic standing legs, tip-over switch
(Standard wall mounted. If floor standing type with above parts, there will be $2.7 additional cost)
1. Back handle: there's wall-mounted frame as standard equipments. After installing this back handle, you can take it up with one hand easily.
2. Plastic standing legs: there's stable standing legs that is not easy to fall down
3. Tip-over switch: with tip-over switch in the heater body,
Humidifier box(optional $1.2)
1.Any heater working, it wil make room air become dry.
2.Timberk heater totally solve this problem by our patent design-Timberk humidifier.
3.Timberk special heater humidifier can realize water into air along with heater woking.let you enjoy fresh nature air in your room.
Ionizer(optional $1.5)
1.Bring forest to your home-Timberk lonizer.
2.Eliminate bad smells,adverse materials(for example; formaldehyde from house decoration) and smokes in air, refuse second-hand smoking.
3.Collect dusty and floated pellets in air, make air clear, Cut off bacteria spreading.
4.Creat active oxygen, remove your body tired, inspire yourself.
Towel Dryer(optional $0.9)
1.Luxury design with stainless steel or chromed steel.
2.Convenient for installing and hiding on heater body.
3.Rapidly make your towel, clothes to be dry.
Silent bedroom panel electrical heater packing details:
Model |
TBK020-M05/E05/D05 |
TBK020-M10/E10/D10 |
TBK020-M15/E15/D15 |
TBK020-M20/E20/D20 |
TBK020-M25/E25/D25 |
Packing |
Plastic bag & color box for each piece, protected by foam |
||||
G.W.(Kg) |
5.7 |
/6.8 |
7.0 |
9.2 |
9.2 |
Packing Size(mm) |
616x115x453 |
796x115x453 |
1070x115x453 |
1396x112x440 |
1407x115x453 |
Loading Qty(20ft) |
840 pcs |
652 pcs |
485 pcs |
393 pcs |
368 pcs |
Loading Qty(40ft) |
1777 pcs |
1375 pcs |
1023 pcs |
828 pcs |
778 pcs |
Loading Qty(40hq) |
2088 pcs |
1616 pcs |
1202 pcs |
975 pcs |
915 pcs |
Silent bedroom panel electrical heater
1.Are you manufacture or trade company ?
Reply:We are manufacture,we've been in the field of small fans,electric heaters & gas heaters for 6 years.
2.How many workers are there in your factory?
Reply: 150 workers when peak season, other season 50 workers.
3.How big is your factory ?
Reply:Our factory has 8000 sq.m workshop which is equipped by modern facilities. We have 2 assembly line, 1 spare parts assembly line & 1 grill mesh production branch. Also we have 2 testing rooms for normal testing & lifespan testing.
4.How's your production capacity ?
Reply:Annual production capacity is over 8000,000 pcs of heaters range and 2000,000 pcs fan range.
5.Is there quality insurance for the product?
Reply:Most of our products have CE certification. And all our products are 100% tested before packing for functional test, technical test & safety test. Also there will be spot testing during production & after production.
*1 year guarantee
*Quality insurance
*Delivery time insurance
*Any color for your choice
*OEM service is available
