NK1410AH Medical High Scan Monitor
I. Brief Introduction:
It is the high definition gray level monitor which is special designed for matching of medical and industrial image display. This monitor adopts special display tube and image signal process technology that makes image has high contrast ratio, rich details and different scanning systems, which can be matched with different fluoroscopy application system.
II. Application:
It is application to the image displays of X-ray image intensifier TV system and C-arm angiography etc medical image system.
III. Main Technological Parameters:
1. Power Supply:
(1) Voltage: AC 220V±10%
(2) Frequency: 50±1Hz
(3) Screen Size: 35 cm
(4) Scanning System: CCIR: 1249/50, Progressive Scan
2. Video Input:
(1) Interface Type: BNC
(2) Level Resolution: Center ≥1000 Horizontal; Edge ≥800 Horizontal
(3) Input Impedance: 75Ω
(4) Input Video Signal Amplitude: 0.5~2Vp-p
(5) Picture Format Ratio: 4:3
(6) Brightness Discrimination: ≥16 grade
(7) -3dB Video Bandwidth: ≥12.5MHz
(8) Light Spot Diameter: ≤0.25mm
(9) Max Brightness: ≥100cd/m2
(10)Geometric Distortion: ≤3%
(11)Nonlinear Distortion: ≤5%
(12 Power Supply Consumption: ≤45VA
3. Outline Dimension: 32cm×30cm×30cm
4. Weight: 10 kg
IV. Standard Configuration:
1. Monitor: 1 set
2. Power Cord: 1 piece
3. Service Manual: 1 copy
4. Quality Certificate: 1 copy . Remark:
V. Remark:
It needs to make special production if the picture format ratio is 1:1 or the screen size is 12 inch.

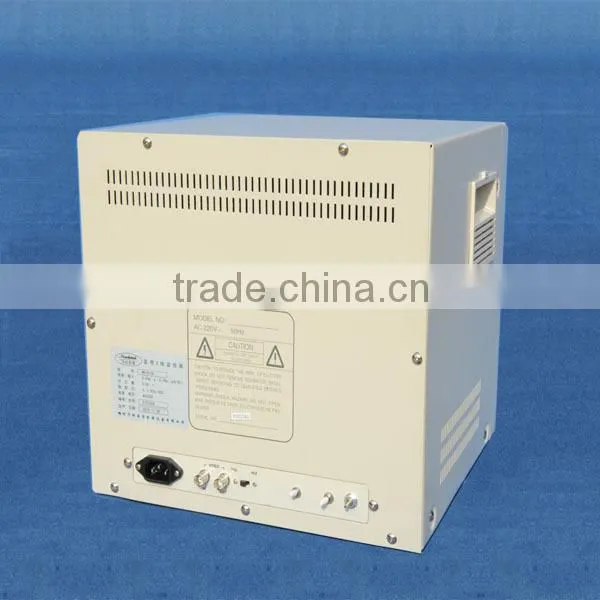

VI. Detail Pictures:
I. Packing: carton, 47cm*44cm*44cm, NW11KG, GW12.5KG
II. Shipmet: by express, DHL/UPS/TNT, by air
III. Delivery period: within 3 days after receiving the payment
High quality with competitive price, stable performance with technological support.
Weifang Newheek Medical Image Equipment Co.,Ltd.
Weifang Newheek Electronic Technology Co.,Ltd.
Address:No.13426 of Yuqing East Street, Weifang, Shandong, China
Tel: 86- 536-8882360 Fax:86-536-8882360
http:
Contact: Wendy Wang Sales Director
Mobile: 86 13791899922
