Digital Image Workstation System for X-ray Machine Update

 Image Workstation for X ray Machine Update

I. Brief Introduction
It is the image system which converts x-ray into the relevant visible light image and makes TV transmission. It is the important assembly of x-ray machine. It mainly includes CCD camera, image workstation and LCD displayer three parts, which can be matched with image intensifiers and assembled into different fluoroscopy x-ray machine.It can be connected with film printer directly.
II. Main characters
1. provide no-flicker, clear and delicate soft image that near to film;
2. intelligent image optimization system;
3. large capacity image storage when interrupt power supply;
4. image management in files;
5. English input; one press for print output; window interface, keyboard and mouse coordination operation method etc.
6. multiple grades noise reduction, last frame frozen, image positive/negative film polarity conversion.
III. Application
It is manly used on the hospital fluoroscopy checkup of chest, belly, bone and soft tissue as well as industrial test.
IV. Main Technological Parameters
1. System performance parameters
(1) Central space resolution: >16Lp/cm
(2) Contrast range: >30dB
(3) Image brightness discrimination level: >10 grade
(4) Low contrast resolution: <1.8%
(5) Image distortion: <10%
(6) SNR: >50dB
2. CCD Camera
(1) Floating pixel wide dynamic black and white CCD camera
(2) Scan system: CCIR
(3) Resolution: 570 TV Lines
(4) Lowest illuminance: 0.003Lux, F1.4
(5) SNR: >50dB
(6) Power supply: AC 220V±10%, 50Hz±1Hz
3. Display
(1) 23” LCD monitor
(2) Resolution: 1920*1080P
(3) Power supply: AC 220V±10%, 50Hz±1Hz
4. Image signal processor
(1) Video frequency input system: CCIR
(2) Video frequency output total pixel: 1,05 million
(3) Sampling and processing digits: 8 bit sampling; 16bit processing; 8 bit output
(4) Power supply: AC 220V±10%, 50Hz±1Hz, 15W
V. Main functions
1. Image processing function:
(1) Multiple grades noise reduction: with 5 grades optional noise reduction, they are 0, 1, 2, 3, 4 respectively;
(2) Intelligent image optimization: use the mouse to choose the interesting part, the system will automatic make the optimization of gray level;
(3) The gamma curve correction: it divides gamma 1, gamma 2 and gamma 3 three ways;
(4) Image sharpness multilevel correction;
(5) Image positive and negative switch;
(6) Last frame image optimization frozen, which is convenient for image output.
2. Special function:
(1) Image information interrupt save (it can store 1,400 patients that above 10 thousand image files, which can expand storage capacity according to requirement );
(2) Radiological image report edit;
(3) File type image management;
(4) English intelligent input;
(5) One press for print output;
(6) Window interface;
(7) Support PACS system and connection with laser camera;
(8) Keyboard and mouse coordination operation method.

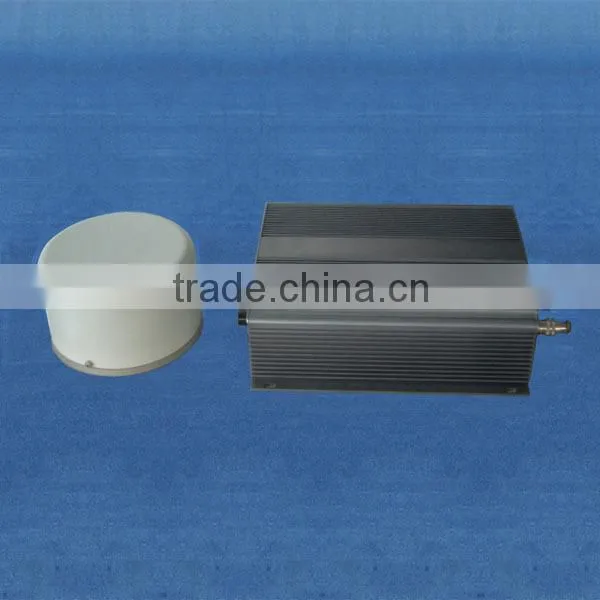

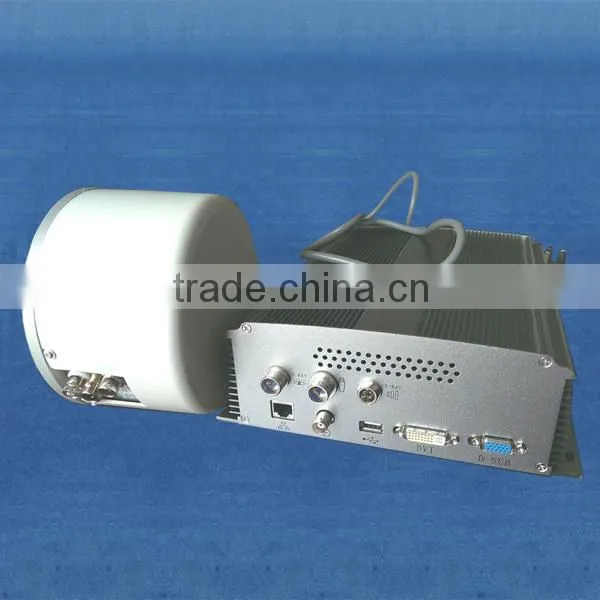

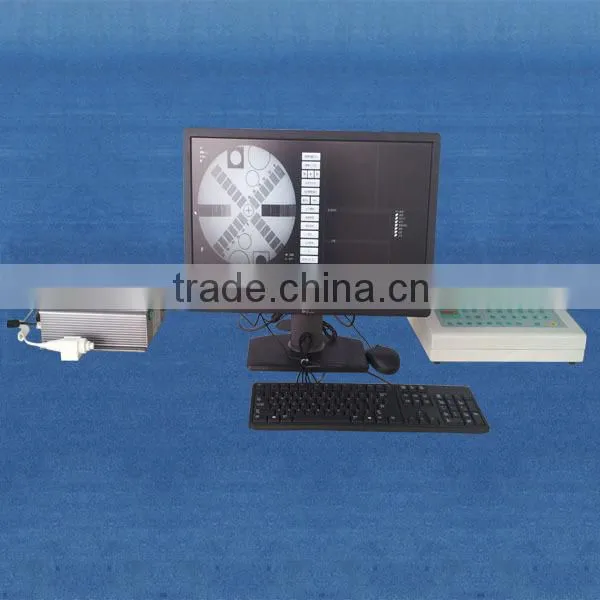

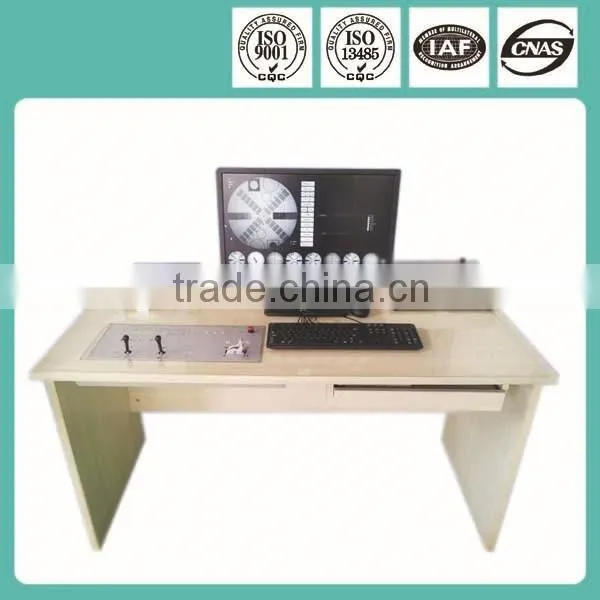

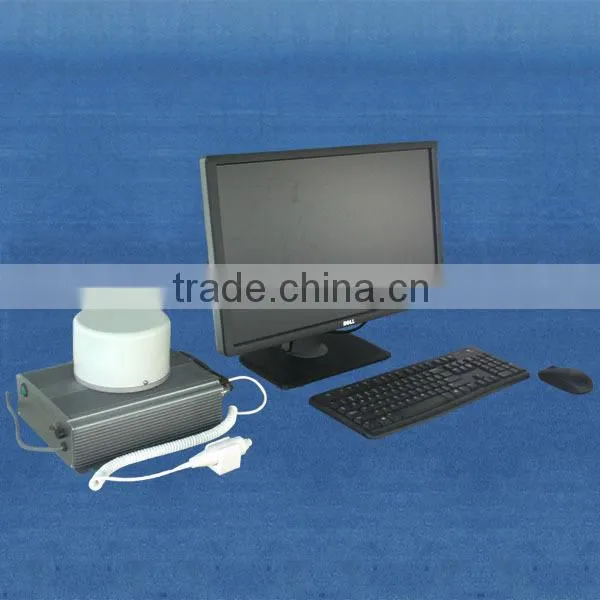

V. Detail pictures

I. Packing: carton, two boxes, one is 61cm*22cm*41cm, NW:12kg, GW:14kg, the other is 45cm*28cm*33cm, NW:4.5kg, GW:5.6kg.

II. Shipment: by express, DHL, TNT, UPS; by air

III. Delivery period: within 3 days after receiving the payment

  High quality with competiive price, stable performance with technological support.
