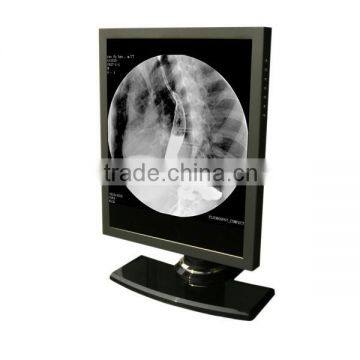

Newheek NK1410AH Medical X-ray High Scan Monitor
I. Brief Introduction:
It is the high definition gray level monitor which is special designed for matching of medical image display. This monitor adopts special display tube and image signal process technology that makes image has high contrast ratio, rich details and different scanning systems, which can be matched with different fuloroscopy application system.
II. Application:
This monitor is application to the image displays of medical X-ray image intensifier TV system and C-arm angiography etc medical image system.
III. Main Technological Parameters:
1. Power Supply:
(1) Voltage: AC 220V±10%
(2) Frequency: 50±1Hz
(3) Screen Size: 35 cm
(4) Scanning System: CCIR: 1249/50, Progressive Scan
2. Video Input:
(1) Interface Type: BNC
(2) Level Resolution: Center ≥1000 Horizontal; Edge ≥800 Horizontal
(3) Input Impedance: 75Ω
(4) Input Video Signal Amplitude: 0.5~2Vp-p
(5) Picture Format Ratio: 4:3
(6) Brightness Discrimination: ≥16 grade
(7) -3dB Video Bandwidth: ≥12.5MHz
(8) Light Spot Diameter: ≤0.25mm
(9) Max Brightness: ≥100cd/m2
(10)Geometric Distortion: ≤3%
(11)Nonlinear Distortion: ≤5%
(12 Power Supply Consumption: ≤45VA
3. Outline Dimension: 32cm×30cm×30cm
4. Weight: 10 kg
IV. Standard Configuration:
1. Monitor: 1 set
2. Power Cord: 1 piece
3. Service Manual: 1 copy
4. Quality Certificate: 1 copy
V. Remark:
It needs to make special production if the picture format ratio is 1:1 or the screen size is 12 inch.

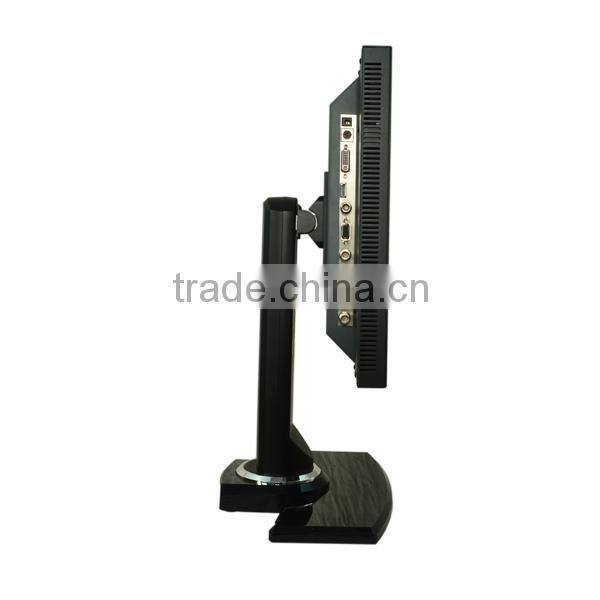

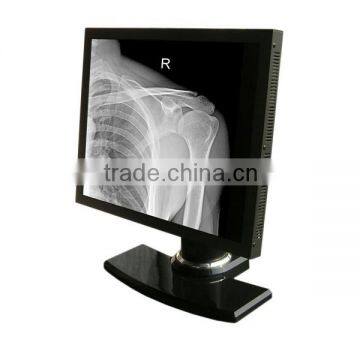

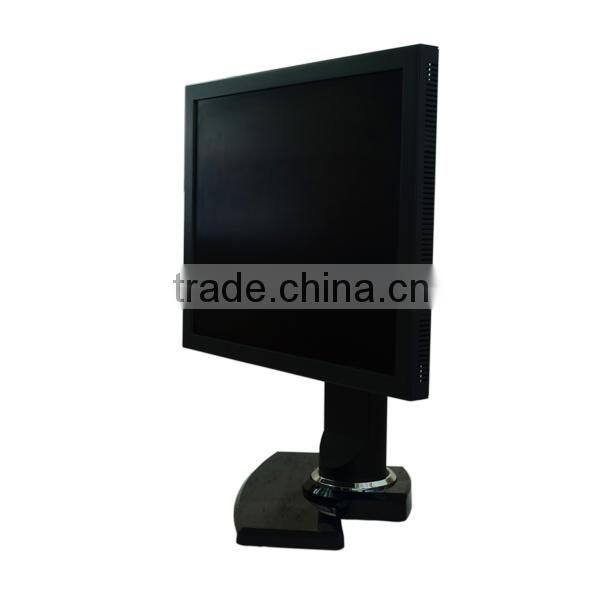

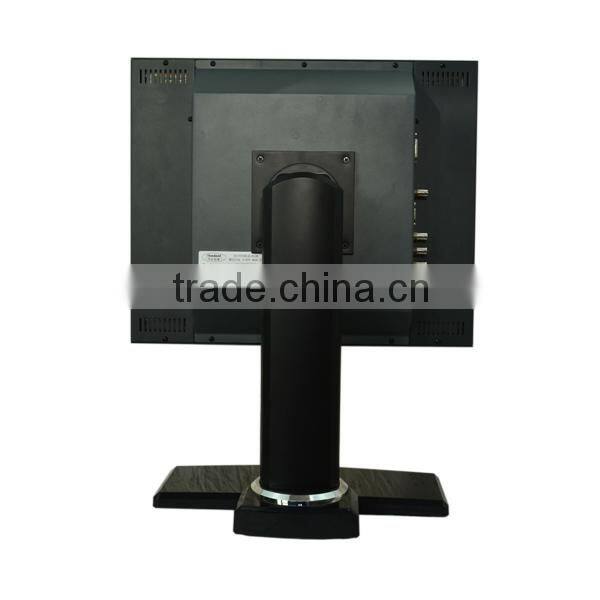

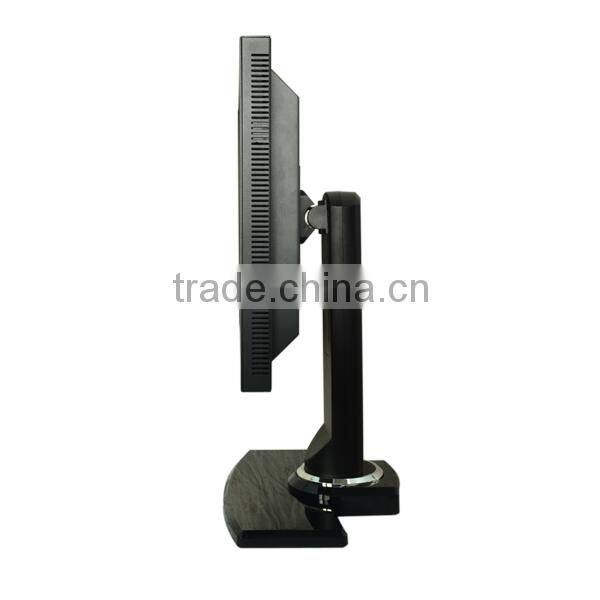

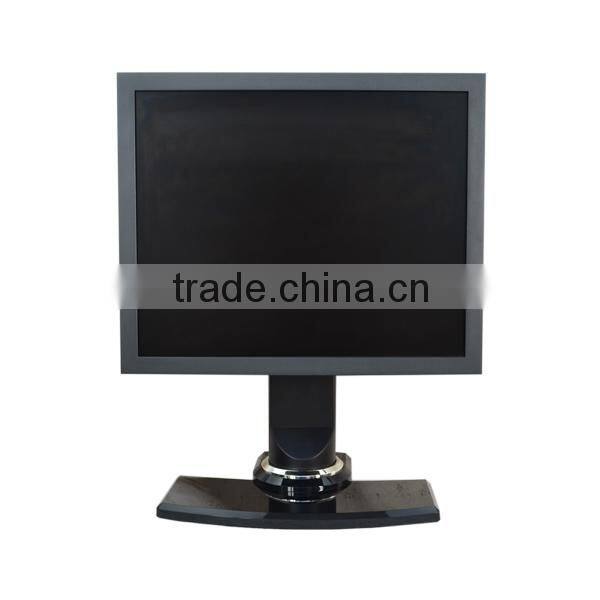

VI. Detail Pictures

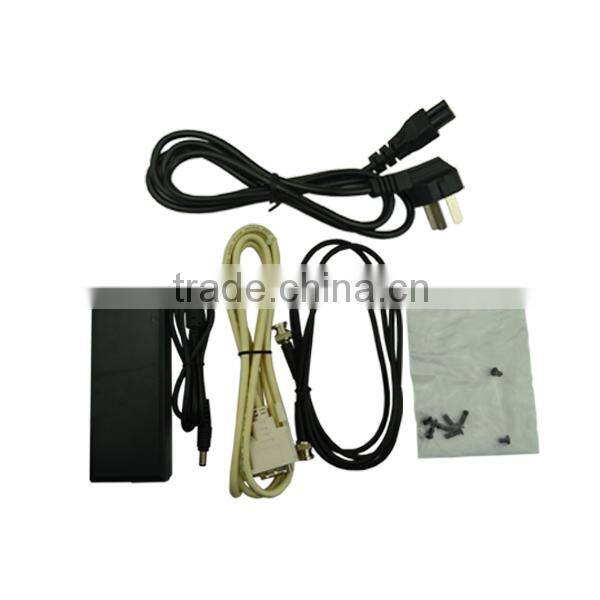

Standard Configuration:
1. Monitor: 1 set
2. Power Cord: 1 piece
3. Service Manual: 1 copy
4. Quality Certificate: 1 copy
Packing Detail:Carton, 47cm*44cm*44cm, NW:11kg, GW: 12.5kg.
Delivery Period:
Within 3 days after receiving the payment
Original manufacturer of image intensifers TV system, high quality with competitive price, stable performance with technological support.

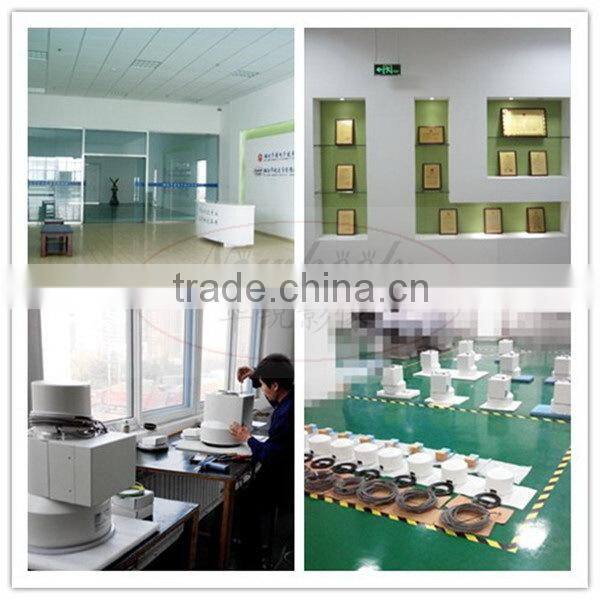

Founded in 1999, Weifang Newheek Medical Image Equipment Co., Ltd. produces high technology and fine quality medical x-ray equipments professionally, include image intensifier TV systems and other image equipments assemblies, which is matched with perfect service system and complete quality-control system. We will offer you extremly competitive price and fulfill all your specific needs. We insist that attention creates speciality! Warmly welcome to contact us and visit our factory. International service hotline (+86-536-8882360) is available all the day.
Contact:
Weifang Newheek Electronic Technology Co.,Ltd.
Address:No.13426 of Yuqing East Street, Weifang, Shandong, China
Contact: Lina Zhang
Tel: +86-15628738102
Mobile: +86 15653608205
Fax:+86-536-8882360
Skype: Lina Zhang-Newheek
