Specifications
1. Electrical performance: 16A-250V/AC2. Temperature range: 0-320 degree
3. Life: >100,000
4.TUV,UL certification.
Product Description:
1.H point temperature/OFF:50±3°C
DIFF:3±2°C
2.Rated voltage:250VAC Rated current:16A
3.Electric strength 2000VAC/1min/0.5mA
4.Contacts resistance:<50mΩ
5.Insulation resistance :>100ΜΩ
6.Main body maximum temperature:125°C
7.Senor highest temperature :70°C
8.Lifetime of product:>100,000 times
9. Copper sensing bulb.

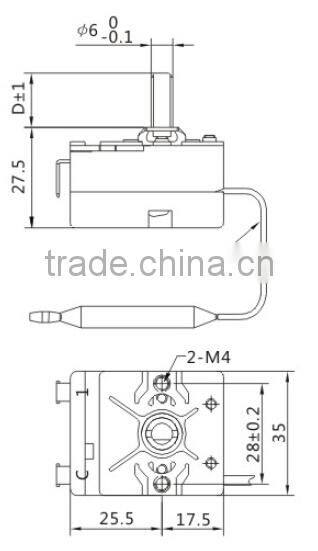

Product outside drawing:
Principle of performance and Application:
1.When the temperature of the controlled object is changed,the inner working substance of
thermostat sensible bulb produce a corresponding thermal expansion and contraction
physical phenomenon (the working substance volume change),
2.At which connected withthe diaphragm sensible bulb produce expansion or contraction.
Through the leverage to drive switch on/off actio the purpose is to achieve
constant temperature.
3. WYE-050-0005 thermostats have temperature control accurate, reliable, small differential,
temperature adjustmentrange, and large overload current performance characteristics.
Usage:
To be applied to home Appliances industry(shower bath fitting,tumbling-box washing
machine, fan heater), electrical heating appliance(Stainless steel automatic
water boiler, built-in electric oven,frying pan, food machinery, armarium,),
Refrigeration industry(kitchen refrigerator,chiller, cold,storage, ice
maker,fishpond, Beverage machine, heater) for temperature control use.
Certificate:
