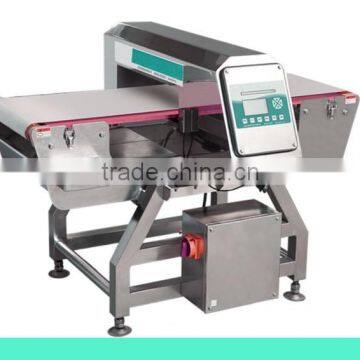

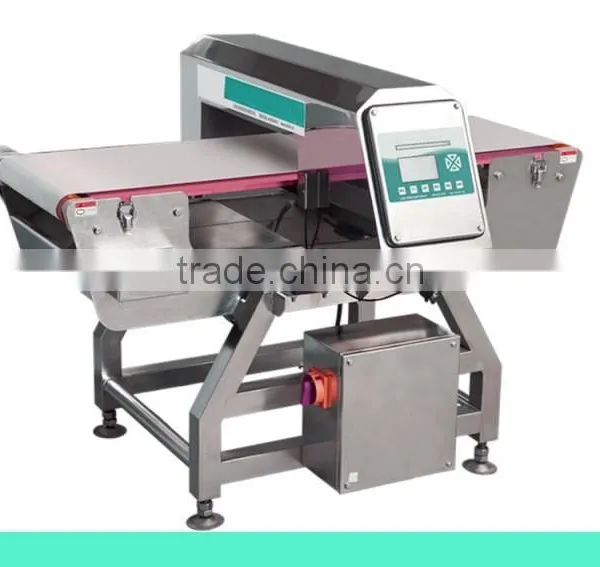

GYD-II Series Conveyor Belt Metal Detector

GYD-II Series Conveyor Belt Metal Detector thumbnail-1
GYD-II Series Conveyor Belt Metal Detector photo-1
US$ 4,500 - 8,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
goodrain
Model Number:
GYD-II series
Contact Supplier Request Quote Chat Now
Wuhan Good Rain Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai or others
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name goodrain
Model Number GYD-II series
Product Description

Application fields:

Foods, Rice ,Grain, Flour , Fruit, Vegetables, Chemicals, Cosmetics, etc..



Metal detector can detect all kinds of metals in food such as ferrous metals (Fe ), Non-ferrous metals (Cu, Al) , even foods with aluminum foil packing could be applied.

Main Characteristics:

1. Keep stable and high sensitive detect performance by adopting phase discriminating technology

2. Aptitude and auto-learning ability, quick realize products property and finish device self auto-configuration

3. Belt backtrack function (optional)

4. With product databases , Max. 52 kinds of products could be stored in memorizer.

5. With LCD display, both Chinese & English operating menu, easy to operation and use

6. Fairly good waterproof and dustproof ability. Easy to be cleaned





Compared with GYD-1 Series, GYD-2 had following advantage :

1.  More stable and  sensitive detect performance

2.  Longer lifetime

3.  More than 100 kinds of products can be stored in the database

4.  USB and  Ethernet interface available

5.  A wider range of products can be detected

6.  Level of protection can reach IP66


Technical Parameter for model selection :



GYD-2 Series
  GYD-2-80 GYD-2-120 GYD-2-150 GYD-2-180 GYD-2-200 GYD-2-250 GYD-2-300
Sensitivity Fe(mm) 0.5 0.6 0.7 0.8 0.8 1 1.2
Sensitivity SUS(mm) 0.8 1 1.2 1.5 2 2.3 2.5
Detection Width(mm) 400 500
Detection Height(mm) 80 120 150 180 200 250 300
Belt Width (mm) 360 460
Belt Speed (m/min) 10~50(Adjustable)   Frequency Control optional
Loading capacity(kg) 10 100
IP code IP66
Alarm Method Alarm to stop transfer or reject setting





Note:



  1. The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. The sensitivity would be affected according to the products being inspected and working condition.
  2. Requirements for different sizes by customers can be fulfilled.
