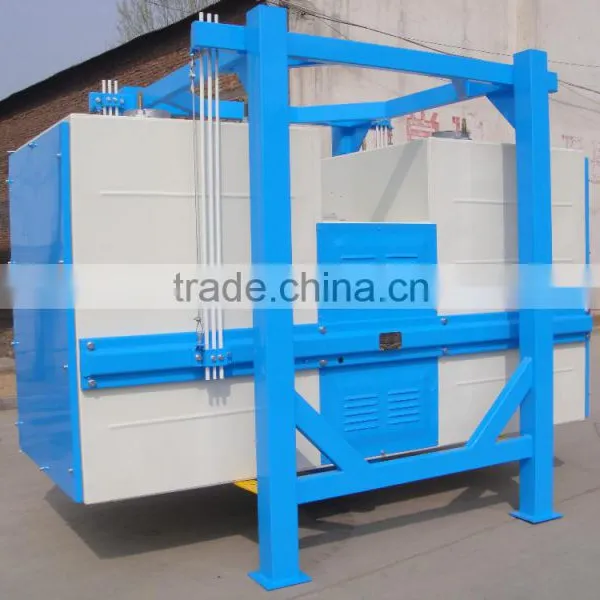

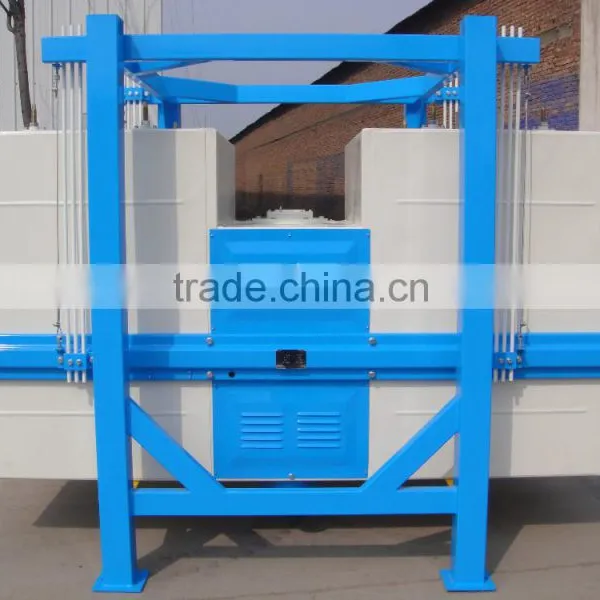

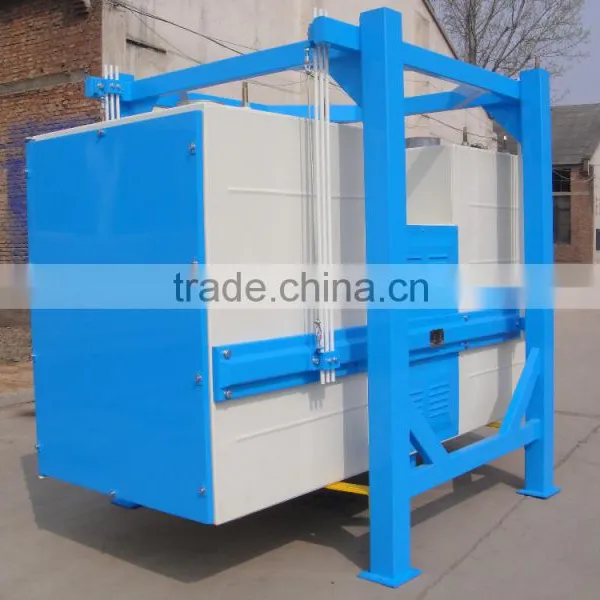

Double Bin Plansifter | Goodrain Flour Machinery
The FSFS series double bin plansifter is mainly used for flour inspection, and it is also capable of sifting and grading materials after grinding process. Aside from flour processing industry, this product is commonly adopted in rice milling, chemical engineering, medicine manufacturing, wine producing and other fields that involve in powder sifting and grading.
Features
1. The sieve frame and mesh are both constructed by aluminum alloy, and they are precise and hard to deform.
2. The connecting positions are handled using sealing strips, and the excellent tightness ensures that the dust inside won't spread to the ambient environment.
3. Our product adopts self-balanced transmission, and the transmission device is set under the sieve. The motor drives the eccentric rotor to rotate through V-belt, and the sieve will do planar rotation as a result of the centrifugal force. This design is simple but reasonable, while low noise and beautiful appearance are both achieved.
4. This double bin plansifter allows convenient and flexible installation. For example, it can be mounted on the ground or hanged to the girder on the ceiling.
Technical Parameters
Model |
FSFG2×10×63 |
FSFG2×10×70 |
FSFG2×10×83 |
FSFG2×10×100 |
FSFG2×10×83 |
FSFG2×10×600 |
Bin QTY |
2 |
2 |
2 |
2 |
2 |
2 |
Sieve QTY |
8-12 |
8-12 |
8-12 |
8-12 |
8-12 |
8-12 |
Sieve area |
4.2 |
6.2 |
8.5 |
13.5 |
11.5 |
17 |
Speed |
260 |
260 |
260 |
260 |
260 |
260 |
Capacity |
2-2.5 |
3-3.5 |
5-10 |
8-14 |
8-12 |
10-16 |
Turning radius (mm) |
22.5~27.5 |
|||||
Power |
1.1 |
1.1 |
1.5 |
2.2 |
1.5 |
2.2 |
Weight |
550-580 |
650-670 |
730-1000 |
1200-1600 |
900-1000 |
1400-1800 |
Dimensions |
1680×1270×1500 |
1840×1270×1760 |
2386×1678×2250 |
2856×1811×2250 |
2386×1678×2250 |
2856×1811×2250 |
- Main machine will be packied in wooden box;
- Accessories will be together with main machine in container;
- We provide full line design;
- We provide excellent shippment arrangement;
- We provide installation;
- We provide people training;
- We provide life time after-sales service and spare parts.
Wuhan Good Rain Machinery Co., Ltd is a Young company but our goal is like the good rain always mooistening the life also human forever.
Our Mission: Provide Cleaning, safty, friendly, healthy grain and food processing solution.
Our Vision: Help more poor people and rich boss. Trust more, more trust!
Q: Electricity Voltage, frequency only can be 380V, 50Hz or others all avaible?
A :Yes, we can customized as your requirement.
Q: Sieve hole size can be customized or not?
A: Yes!
Q: LCL or FCL which you prefer?
A: We can provide LCL and FCL shipping service, but LCL cost is really lower for you and us!
