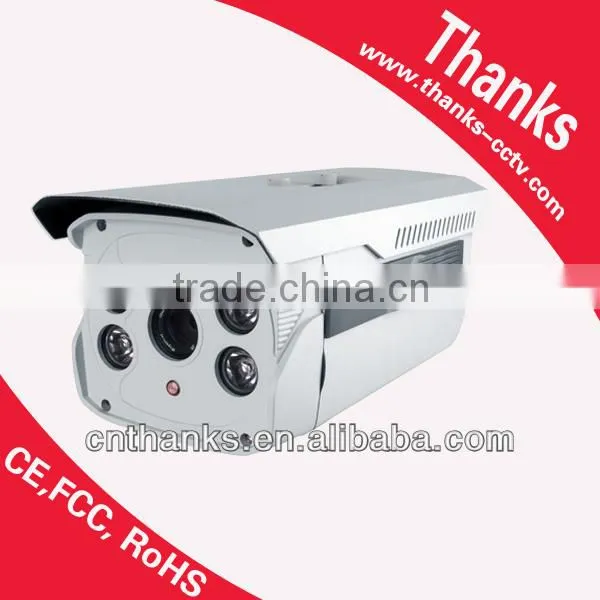

New Design Weatherproof IR ip Camera, Ip66 Poe ip Camera

Name: New Design Weatherproof IR ip Camera, Ip66 Poe ip Camera
Brand: Thanks
SKU: 101158019
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Thanks

Model Number:

AK-1000N100

Guangzhou Thanks Electronic Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Thanks

Model Number AK-1000N100

Type Digital Camera

Style Bullet Camera

Sensor CMOS

Technology Infrared

new design weatherproof IR ip camera, ip66 poe ip camera

New design ir ip camera

poe ir ip camera

onvif ir ip camera

720P Full HD ONVIF IP Camera

Product Key Features:

• H.264 Main Profile @level 3

• 1.0Megapixel Resolution

• Dual H.264 Stream, resolution, frame rate, bit rate adjustable

• Support RTSPCompatible with VLC Media Player

• Onvif Compliant

• Support plug in & play, Web based 16-CH Video Management

• Support Two Way Audio

• Build in Motion Detection

• 1/3" CMOS Sensor Progressive Scan

• 12mm CS lens 1.3 Mega Pixel included

• Vandal-proof housing

model	Model		AK-1000N100
	Item		Megapixels IR dome IP camera 80M IR distance
Camera	Sensor		1.0Megapixel 1/3" Progressive Scan CMOS Sensor
	Signal system		PAL/NTSC
	Min. Illumination		0.5Lux @(F1.2,AGC ON),0 Lux with IR
	Shutter		Auto
	Lens		12mm lens@ F1.2 Horizontal field:85°~18°
	Lens Interface		Φ14
	Angle Adjusted		Horizontal:0°~ 360°,Vertical:0°~ 75°,Rolling:0°~ 360°
	Day/Night		ICR
	WDR		N/A
compress standard	Video Compression		H.264 main profile level 3
	Compression Input Bitrate		32 Kbps~4Mbps
image	Max. Resolution		1280×720
	Fps	50HZ	Main Stream:25fps (1280×720),Sub Stream:25fps(320x240)
		60HZ	Main Stream:25fps (1280×720),Sub Stream:25fps(640x360),25fps(320x180)
	Image Control		Saturation, Luminance and Contrast can be adjustable by PC or IE browser
network function	Storage		Support NAS(ISCSI optional)
	Dual Stream		Support
	Intelligent Alarm		Motion Detection(4 zones can be set up)
	Network Protocol		TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP
	General Function		One-click restoring, Flicker Filter, Heartbeat, password protection, 3-Axis adjustable
interface	Communication Interface		One interface RJ45 10M/100M Adaptive POE port
basic parameter	Working Environment		Temperature -10°C~60°C,Humidity <90%(No condense)
	Power Input		DC12V±10%
	Power Consumption		5.5W MAX
			-I:7W MAX(When ICR exchange,7.5W MAX)
	IR Distance		-I:15-20m
	Dimension(mm)		Φ260*120
