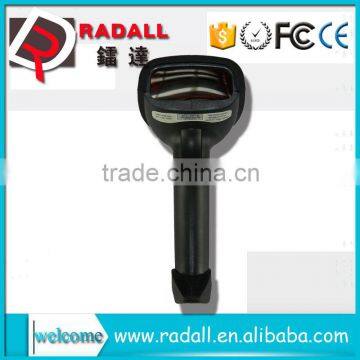

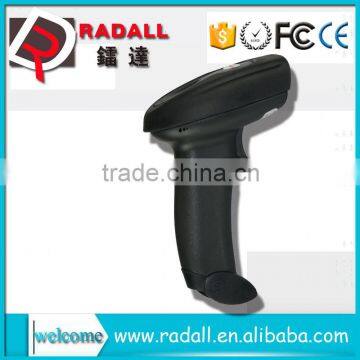

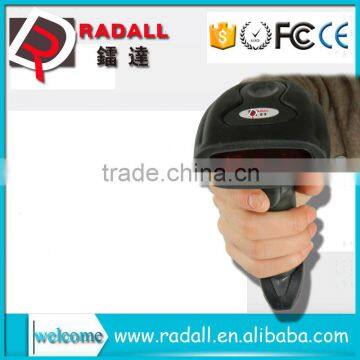

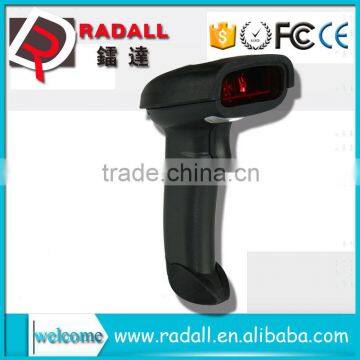

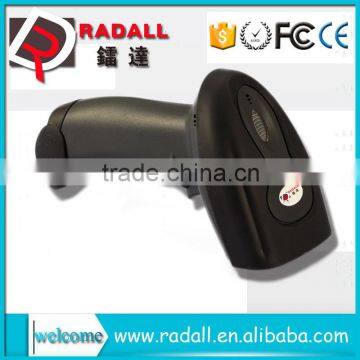

RD-2016 automatic barcode scanner code reader code gun reader code reader auto scanner
Key Specification :
| RD-2016 Wired Laser Bar code Scanner | |
| Specifications: | |
| Performance | |
| Type of illuminant | 650nnm laser ( safe visible light ) |
| Supported interfaces | RS232 / PS2 keyboard / USB |
| Decode Capability |
Code 39, Full ASCⅡ, Code bar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 93, Code 128, Code 32, Standard code 39, EAN 128, MSI, EAN 8&13, UPCA & E, Plessey, Databar14, TELEPE |
| Operation | Manual/Automatic |
| Precision | ≥4 mil (0.10mm) |
| Depth of scan field | 10-800mm |
| Decode speed | 120 times/second |
| Decode error rate | Less than 1/5 million |
| Print Contrast Signal | ≥30° |
| Light intensity | Daylight, 4000Lux Max |
| scan angle | Yaw(Skew)45°& Pitch60° |
| Safety | Full quakeproof, waterproof, dustproof, antiknock-design and EMI Shielding |
| Mechanical/Electrical | |
| Power voltage | DC 5V |
| Current | Operation 120mA; Idle 10mA |
| Scanner Material | Eco-friendly, ABS+Rubber |
| Physical | |
| Exterior dimension | L*W*H (mm): 170*75*106 |
| Materials | Plastic |
| Weight | 165g (cable not included) |
| Environment | |
| Operating humidity | 5%-85% |
| Storage humidity | 5%-85% |
| Operating temperature | -20°C-45°C |
| Storage temperature | -20°C-45°C |
| Safety performance | ROHS class 2 laser product, FCC class B and CE |
Features:
- 1.Unique trigger design, very comfortable operation sense.
- 2. Fast and accurate in reading all 1D codes.
- 3.Programmed to better read incomplete and fuzzy codes.
- 4.Service life of button reaches up to 5 millions times
- 5.Supporting keyboards of over 20 countries and regions.
- 6.360°all direction-adjustable stainless steel cradle.(optional)
- 7.Full quakeproof, waterproof, dustproof, antiknock-design and EMI Shielding; Suitable with each kind of industrial environment.
Packing List:
- Barcode scanner ×1
- Cable (RS232 / USB/ PS2 )×1
- User's manual ×1
- Cradle (optional) ×1
Applicable Scope:
|
Commercial POS system(supermarket, store, shop, mall)
Warehousing and logistics
Libraries
Banks and Telecom
Transportation
Postal service
Industrial and manufacturing management |
