Specifications
1, 12V lifepo4 motorbattery2, lifepo4 48V motor battery
3, 48V lifepo4 motor battery
4, 24V motor lifepo4 battery, 24Vmotor

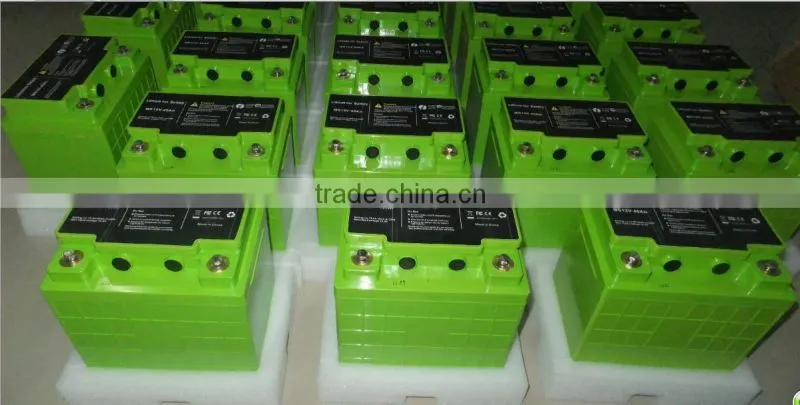

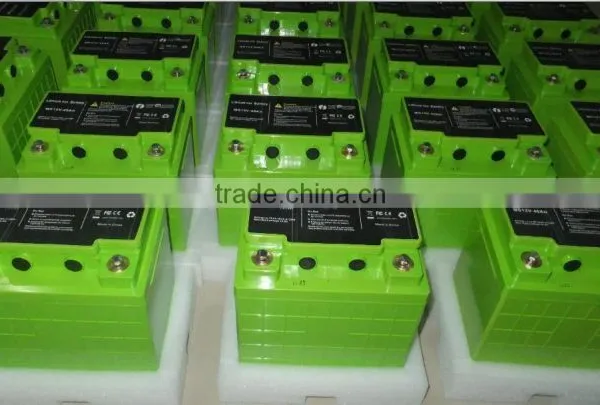

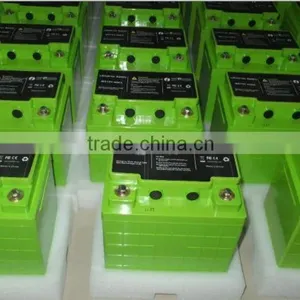

24 V and 48V High power LiFePO4 Battery Module with compact designed Green housing, built-in BMS and LED indicator, Long lifecycle 24V motor lifepo4 battery for Direct replacement on SLA battery. 24V motor battery, 12Vmotor lifepo4 battery, and lifepo4 24Vmotor battery packs, and lifepo4 12Vmotor battery, 12V lifepo4 motor battery and 24V lifepo4 motor battery with built in BMS, hard/plastic housing and LED indicator.
SHENZHNE LITHPOWER provides a vertical supply chain from LiFePO4 single cells, battery packs to Battery modules with matched BMS as well Chargers as a completely turn-key power solution. We provides a vertical supply chain from LiFePO4 single cells, battery packs to Battery modules with matched BMS as well Chargers as a completely turn-key power solution for our customers.
UL/CE approved LiFePO4 cells; MSDS testing on modules, qualified built-in BMS; Good record in quality and UN38.3 for dangerous goods transportation. Our standard 12V40Ah, 60AH and 120AH LiFePO4 battery module with internal BMS and LED to directly drop-in replacement on SLA battery
| Model | LP-4S400E | LP-4S600E | LP-4S120E |
| Normal Voltage | 12.8V | 12.8V | 12.8V |
| Normal Capacity | 40Ah | 60Ah | 120Ah |
| Charge-Cut-Off Voltage | 14.6V | 14.6V | 14.6V |
| Charge Current | 5-8A | 8-10A | 10-20A |
| Constant Discharger Current | 30A | 30A | 30A |
| Battery Housing | Hard/Plastic case with internal BMS | Hard/Plastic case with internal BMS | Hard/plastic case with internal BMS |
| LED | N/A | LED indicator/ SMbus | LED/SMbus |
| Lifecycle | 2000 cycles | 2000 cycles | 2000cycles |
| Weight | 4Kg | 6Kg | 15Kg |
| Size | 196X135X176mm | 131X197X182mm | 260X172X225mm |
| Certificaton | CE/MSDS and UN38.3 | CE/MSDS and UN38.3 | CE/MSDS and UN38.3 |
|
|
|
|
Battery Comparison :
- Smaller size, normally 1/3 as large as conventional SLA battery;
- Lighter weight, normally 1/3 as conventional SLA battery;
- Longer cycle-life, SLA battery is about 300cycles while LiFePO4 battery can be 2000 cycles or more;
- Good performance in deep discharge,LiFePO4 battery can be 100%DOD while SLA battery is 60%∼70%DOD,which means LiFePO4 battery will need less capacity in the same condition;
- Totally environmental-friendly
Features:
A. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.
B. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of Lead acid battery.
C. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
D. Good performance at high temperature and high temperature resistance
E. Low self-discharge rate, less than 3% monthly.
F. No memory effects and highly efficient charge.
G. Environment friendly: Clean and Green energy poses no pollution on our environment.
Lithpower offers different 36vmotor battery, lifepo4 48Vmotor battery, and 48Vmotor lifepo4 battery, 48V lifepo4 motor battery, and motor 36V lifepo4 battery. all in green housing with built-in BMS and LED indicator.
LITHPOWER offers different 12Vlifepo4 battery packs, 12V40aH lifepo4 module and 12V60AH lifepo4 pack, lifepo4 12V120AH, 100Ah and 200AH packs. all with hard/plastic case, IP56 box, LED indicator and internal BMS capable for RS485 and SMbus protocol communicaiton.
♣ Long lifecycle: more than 2000cycles with 1C rate, nearly 8 times of lead acid battery.
♣ Low self-discharge: < 3% monthly
3C |
LiFePO4 |
Lead Acid |
Ni-Cd |
Ni-Mh |
Self-discharge/month |
less than 3% |
10% |
13%~15% |
25~35% |
♣ High power output
♣ No memory effect: can be recharged efficiently with no reduction of capacity.
♣ Wide working temperature range: -20~65°C
♣ Lighter weight and smaller dimension: 1/2 size and 1/3 weight of lead acid battery, 70% size of Ni-MH Ni-Cd battery
Application
♣ Electric propelling applications: engine starting battery; Slow Speed Car; intellectual robots; electric bicycle/motorcycle/scooter; golf trolley/carts/ sightseeing car; power tools.
♣ Energy storage: solar and wind power system; city on/off grid; community and family, RV Caravan, Marine yachts.
♣ Back-up system and UPS: telecom base, CATV-system, computer server center, medical instrument, military equipment.
♣ Other applications: security and electronics; mobile POS, mining light/torch/LED light/emergency light.
Excellent service
1.2 years' warranty on our LiFePO4 Battery
2. Fast Delivery service.
3. Quick response to your any inquiry within 12 hours.
4. Customized design is available, OEM and ODM are welcome.
5. Shipment by Air Express (door to door service), by Air Flight and by Vessel, all Available.
6. Offer the highest quality with the best price.
7. Professional Pre-sales service with Whole-hearted After-sales service.
Your inquiry will be warmly welcomed, looking forward to our long term cooperation.
