HK-180V

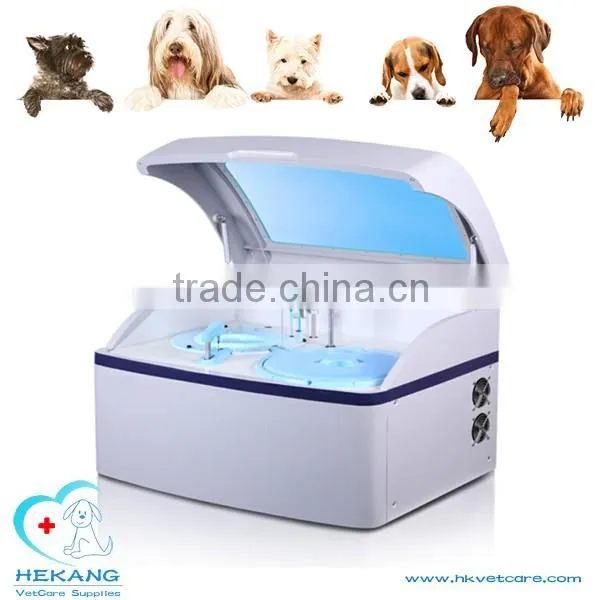

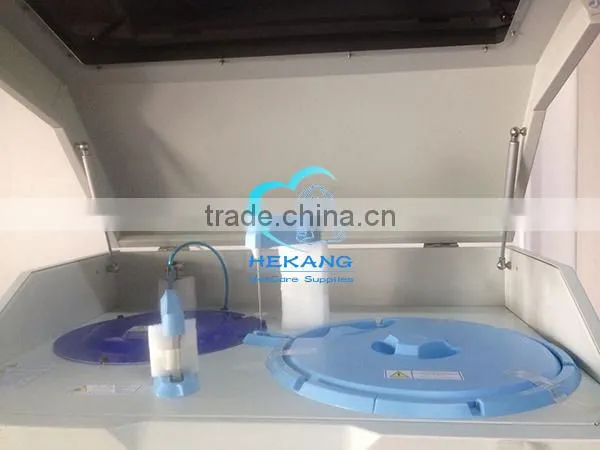

Automatic Chemistry Analyzer

Specifications

Analyze System

Throughput

Maximun 300T/h,Constant 180T/h(non-ISE)

Theory

Absorption spectronmetry,Transmission turbidimetry

Methodology

End-point,Fixed-time,Kinetic,Monochromatic/bichromatic

Test according set up,random access

Reaction plate

Contain 81 reaction cuvettes

Miximun reaction time: 15 minutes

Minimum reaction volume: 150 ul

Material of cuvettes

Special UV-transparent optical glass

Can to be chose one-off cuvettes or automatically cuvettes washing

Optical System

Light Source

Halogen-tungsten lamp

Photometer

Reversed optics

Wavelength

340nm-900nm wavelength option

Absorption

0-4 Abs

Reagent/Sample Handling

Sample volume

2-100 ul,step by 0.1 ul

Sample plate

Contain 60 sample positions

Reagent/Sample Probe

Automatically checked,patent technology liquid level detection,collision protection probe cleaning:Automatic washing for both inside and outside

Samples cup

Support one-off blood cuvettes,micro cups,plastic cuvettes

Reagent volume

20-500 ul,step by 0.1 ul

Reagent plate

Contain 60 reagent positions

Sample/reagent probe

Collision protection liquid level detection;Internal and external probe washing;Probe depth adjustment automatically

Reagent bottle

15ml & 30ml; Dead volume less than 0.5 ml

Temperature Control

Maintenace free heater elements

Temperature maintainance within 3 minutes

Temperature fluctuation: ±0.1°C

Reaction temperature:

37±0.1°C

Temperature of reagent compartment : 2-10°C

Operation system

Software :WindowsXP,2000

Database: SQL Server

Data Storage

Automatic store & copy;No time and volumn limit;Lifetime preservation

Print format

Can be set up,offer several standard format

Calibration mode

Linear curce type:Single-point linear,two-point linear and multi-point linear none linear;Curve type:Logistic-Log 4P,Logistic-Log5p,Spline,index automatically use best calibration curve and standard

QC Methods:Real time,within day & between day

Quality Control Diagram: L-J,cumulative,twin plot

Control software

Random set up,default westgard multi-rule

Status display

Real time monitoring of reagent residual volume. Running status of reagent tray,samples tray

Adjustment

Dynamic and real time display of running status;Intelligent carry over settings to adjust test sequence;Original reaction data record;Detail profile of alert messages

Setting

Operation permission setting,Item setting,cross polution setting,cuvette blank setting

Others

Water consumption:Less than 2 L per hour

Power Supply: AC 220V±22V 50Hz±1Hz

Frequency:Maximun 600VA

Dimension:782mm×581mm×545mm

Weight:60kg

Accessory: Software
