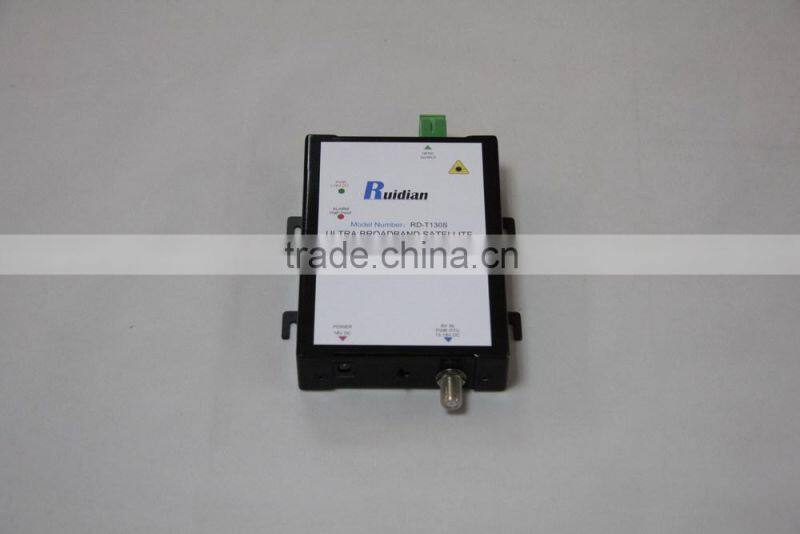

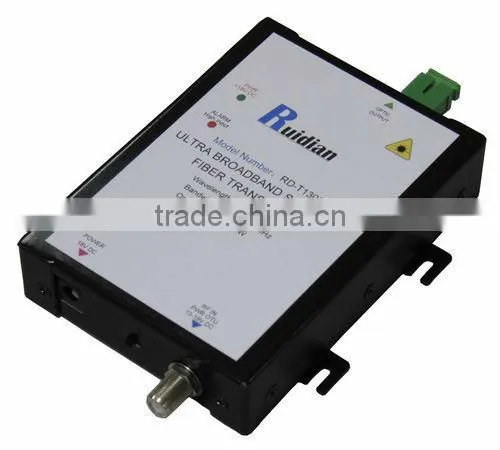

1310nm single fiber satellite optical transmitter

Specifications

1.L-Band satellite fiber transmitter
2.Standard type
3.1310nm single fiber
4.950~2600MHz
5.DFb laser



L-Band satellite fiber transmitter 1310nmSingle Fiber

The RD-130 S L-Band Satellite Transport System provides an economical solution for transporting digital signals for numerous
satellite distribution, and distribution of digital broadcast systems (DBS). The system utilizes a cost-effective coaxial cable
configuration to distribute the RF signals from the dish to the transmitter and from the receiver to the headed. The single-mode
optical fiber between the RD-13 0S transmitter and receiver allows transmission distances to 15Km at 131 0nm. Furthermore ,
using LNB power from the transmitter decreases the need for additional equipment at the dish site, RF alarm and indicator
LEDS allow for a quick assessment of the link ’ s operational status. The RD-130 S L-Band Satellite Transport System, whether
used in an antenna remoting application of in a satellite distribution role, provide for transmission of the entire DBS spectrum in
a simplified, flexible installation environment at one of the lowest costs found today ’s market.

RF Typical Performance
Parameter	Units	Min   Typical   Max     Supplement
Frequency	MHz	950			2600
Input Level	dBµv	55			78
Flatness	dB		±1.75				950~2600MHz
Port			1
RF port			F-female
Return loss	dB		-13
Output Impedance	Ω		75
CNR	dB	40
IMD	dB	40
Feeding LNB	V	13/18VDC
Optical Typical Performance
Parameter	Units	Min   Typical   Max      Supplement
Wavelength	nm	1300	1310		1320		DFB
Return loss	dB		≥55
Out optical power	mW	1			2
Optical connector		SC/APC					SC/APC or FC/APC
General feature
Parameter	Units	Min   Typical   Max     Supplement
Power supply	V		18
Power consume	mA	110	120		130
Work temp	°C	-20			+55
Storage temp	°C	-40			+85
Size	cm	16*10.5*2.8					W×D×H

Key Features  High bandwidth 950~2600MHz

1310nm DFB laser

Wall-mounted metal housing

Transmits singals in excess of 15Km

Offers LNB +13DVC or +18VDC

F-female 75ohm RF input

Main application

Satellite FTTH networks

L-Band fiber distribution networks
