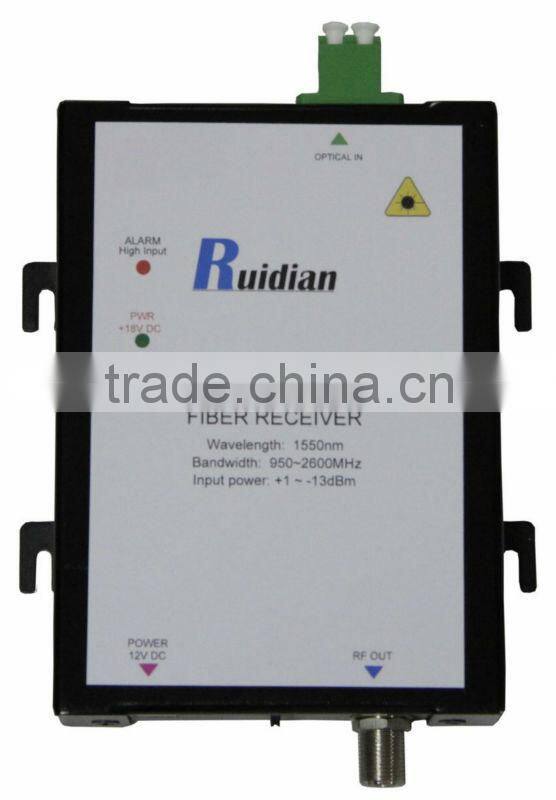

2600MHz L band CWDM satellite optical receiver RD-120D
(Build-in CWDM)
Description
The RD-120D L-Band Satellite Product Series is a kind of SAT-IF Optical Receiver with high performance and high index. Working in 950-2600MHz bandwidth, with low power consumption, suitable for FTTH, FTTP fiber access network. It is really an excellent cost performance DBS network ONU.
RF Typical Performance |
|||||||
Parameter |
Units |
Min Typical Max Supplement |
|||||
Frequency |
MHz |
950 |
2600 |
||||
Output Level |
dBµv |
68 |
88 |
||||
Flatness |
dB |
±1.75 |
950~2600MHz |
||||
Port |
1 |
||||||
RF port |
F-female |
||||||
Return loss |
dB |
-13 |
|||||
Output Impedance |
Ω |
75 |
|||||
CNR |
dB |
40 |
|||||
IMD |
dB |
40 |
|||||
Optical Typical Performance |
|||||||
Parameter |
Units |
Min Typical Max Supplement |
|||||
Wavelength |
nm |
1530 |
1550 |
1570 |
|||
Responsivity |
A/W |
≥0.9 |
|
||||
Return loss |
dB |
≥55 |
|||||
Input optical power |
dBm |
-13 |
+2 |
||||
Optical connector |
LC/APC |
SC/APC or LC/APC |
|||||
General feature |
|||||||
Parameter |
Units |
Min Typical Max Supplement |
|||||
Power supply |
V |
12 |
|||||
Power consume |
mA |
80 |
90 |
100 |
|||
Work temp |
°C |
-20 |
+55 |
||||
Storage temp |
°C |
-40 |
+85 |
||||
Size |
cm |
16*10.5*2.8 |
W×D×H |
||||
Key Features |
High bandwidth 950~2600MHz |
Low light-receiving -13dBm |
Build-in CWDM |
Operating Wavelength 1550nm |
Wall-mounted metal housing |
F-female 75ohm RF Output |
Main application |
Satellite FTTH networks |
L-Band fiber distribution networks |
We are manufacturer of all CATV optical equipments such as FTTH optical receivers, Optical transmitters, Optical amplifier-EDFA , SAT-IF optical transmitters and receivers, Optic Transceiver Module and Optical Fiber Test instruments.
If you need satellite optical receiver,please contact with me without hesitation!
