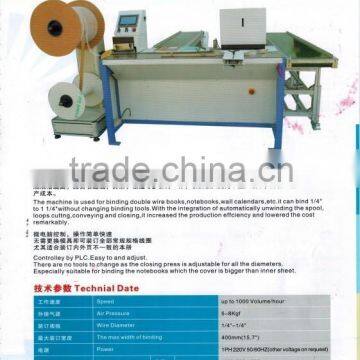

WNB-400 Twin wire binding machine without mould
Double wire binding machine was researched&developed on the base of Japanese&South Korea's advanced technology.it is the best multifunctional binding machine with the highest efficiency in China.
Twin wire binding machine's advantages:
1: can bind notebook speed up to 1000 books per hour
2: can bind double wire diameter 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8" 1" 1-1/4" pitch 3:1 &2:1 with one machine no need change mould
3:can bind book width 70-360mm
4: machine has auto error reminder function
5:Multi language interface design according to customer requested
6:Automatic transmission books,and allow workers to easy operate
7:the actuating element of the machine to switch to new side type to ensure long life and stability
Twin wire binding machine Specifications:
Feeding mode: Manual Wire Specifications:Automatic cutting,insertion&Closing
Max Binding width:360mm
Min.Paper Width:75mm Working speed(times/hour)1000
Power:220v/1ph/50hz/60hz/0.2kw
Air Compressor(not included)kw:1.5 Air pressure(bar):6-8
Net weight:400kg machine dimension:1800*760*1230mm
Our company advantages: we can supply after printing all kinds of full binding system:
1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture
double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.
2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil
and binding notebook at the same time
3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.
Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it.firstly after
you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small
problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send
master to your company help you to solve
