Specifications
1.FTTH four ways CATV Fiber optic receiver built in CWDM2.With AGC
3.Wall type
4.45~1002MHz
5.Output level 95~97dBuV
FTTH Two Ways CATV Fiber Optic AGC Receiver build in CWDM RDH2090D
Description

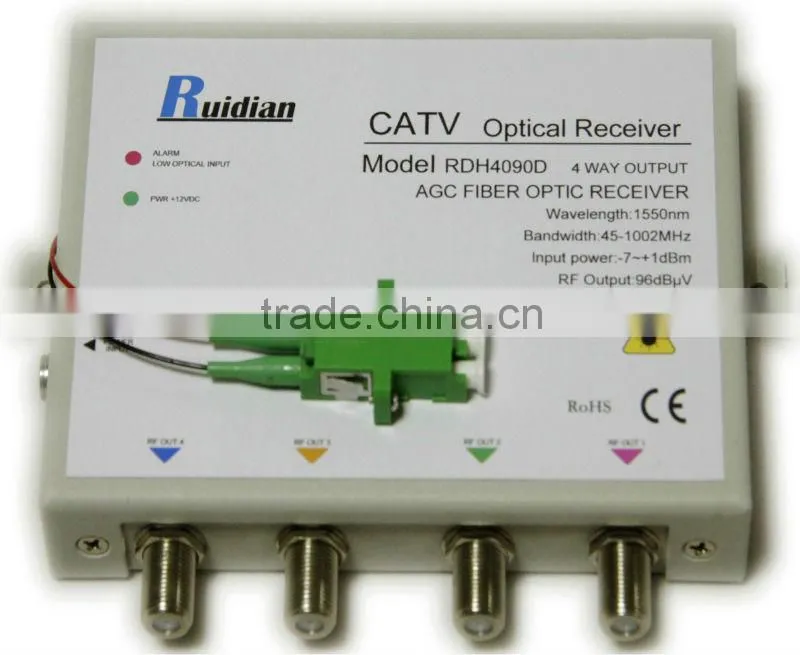

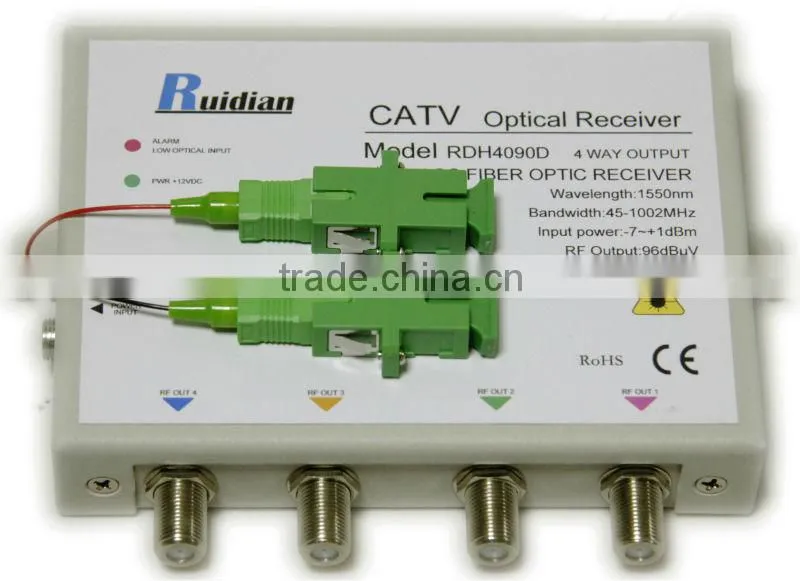

The RDH4090D FTTH 4 Ways output CATV AGC receiver with work bandwidth 45-1002MHz, AGC function, output level Vo=96dBµV±1dB(Pin=-7~+1dBm), applies to xPON system, it is a low power consume, high performance ONU for RFTV broadcast network. DH4090D adopt high sensitivity optical receiving tube and Ruidian specialized low noise match circuit, 3.5%modulate full channel transmit power receiving and the CNR can reach high index 46dB. RDH4090R has three types according to different functions. RDH4090R is standard type, RDH4090F is build-in filter, RDH4090D is build-in WDM widely used in PON systems. Customer could choose the suitable model according to their systems application.
RF Typical Performance |
||||||
Parameter |
Units |
Min Typical Max Supplement |
||||
Frequency |
MHz |
45 |
1002 |
|||
Flatness |
dB |
±0.75 |
||||
AGC |
dB |
±1 |
Pin:-7~+1dBm |
|||
Port |
4 |
|||||
RF port |
F-female |
|||||
Output level |
dBµv |
95 |
96 |
97 |
Pin:-7~+1dBm |
|
Return loss |
dB |
-16 |
||||
Output Impedance |
Ω |
75 |
||||
CNR |
dB |
46 |
||||
CSO |
dB |
66 |
||||
CTB |
dB |
68 |
||||
Optical Typical Performance |
||||||
Parameter |
Units |
Min Typical Max Supplement |
||||
Wavelength |
nm |
1540 |
1550 |
1560 |
Pass wavelength |
|
Responsivity |
A/W |
≥0.9 |
1310~1490nm |
|||
Return loss |
dB |
≥55 |
||||
Receiving power |
dBm |
-7 |
+1 |
|||
Optical connector |
LC/APC |
LC/APC or SC/APC |
||||
General feature |
||||||
Parameter |
Units |
Min Typical Max Supplement |
||||
Power supply |
V |
11 |
12 |
13 |
||
Power consume |
W |
620 |
630 |
640 |
||
Work temp |
°C |
-20 |
+55 |
|||
Storage temp |
°C |
-40 |
+85 |
|||
Size |
cm |
14*10*2.4 |
W×D×H |
|||
Key Features |
Optical CATV home receiver |
Ultra low noise technology |
Very low distortion |
Wide range of optical input power |
Single-mode fiber high return loss |
F-female 75 ohm RF output |
Main application |
CATV HFC networks |
FTTH FTTP networks |
xPON system |
