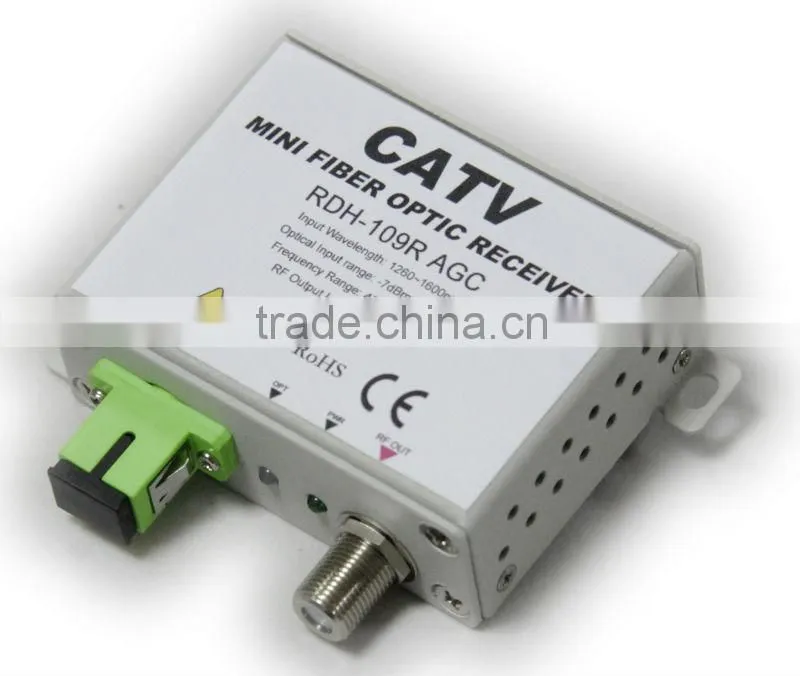

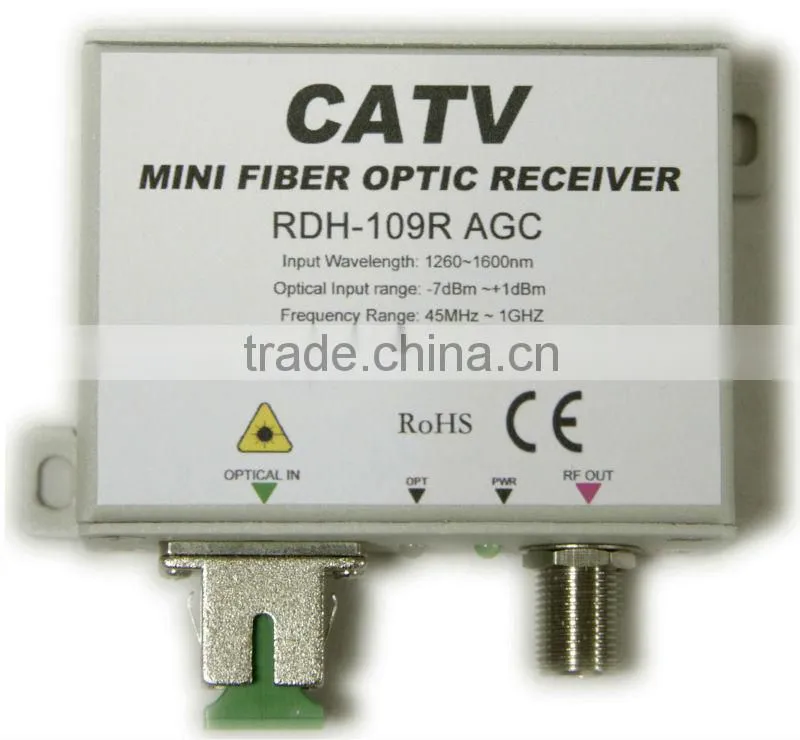

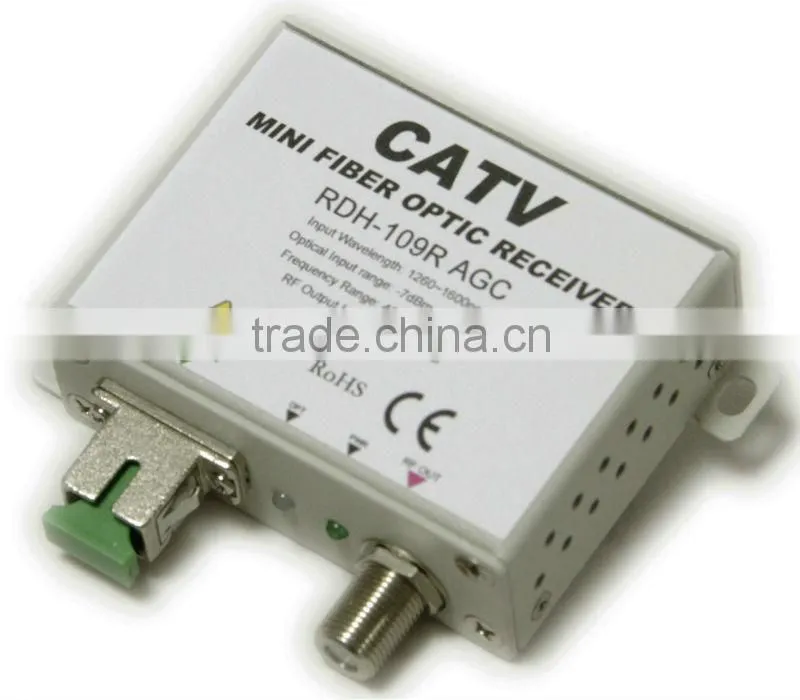

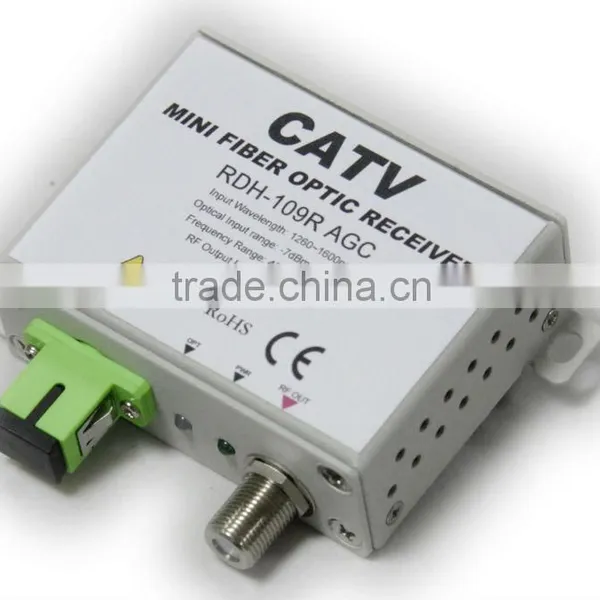

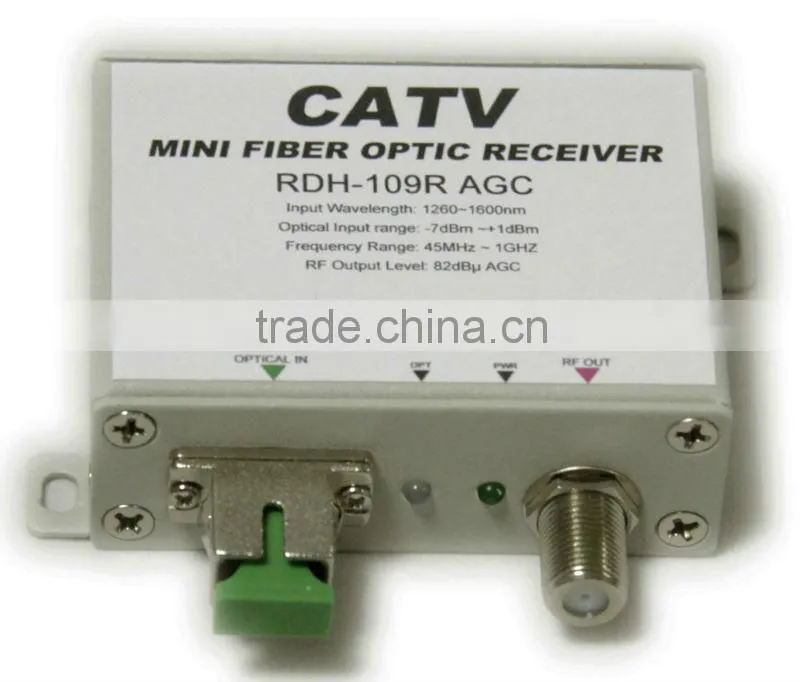

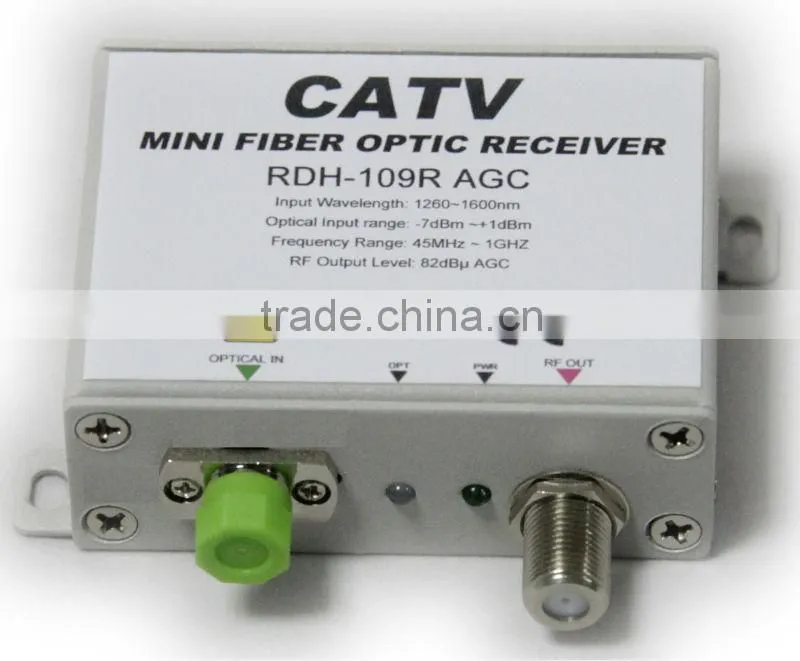

FTTH CATV AGC Fiber Optic Receiver Built in Filter RDH-109R
Description
The RDH-109R FTTH 1 Ways output CATV AGC receiver with work bandwidth 45-1000MHz, AGC function, output level Vo=82dBµV±1dB(Pin=-7~+1dBm), applies to FTTH system, it is a low power consume, high performance ONU for RFTV broadcast network. RDH-109R adopt high sensitivity optical receiving tube and Ruidian specialized low noise match circuit, 3.5%modulate full channel transmit power receiving and the CNR can reach high index 46dB. RDH-109F has two types according to different functions. RDH-109R is standard type, RDH-109F is build-in filter,
RFTV operating in 1550nm. Customer could choose the suitable model according to their systems application.
RF Typical Performance |
||||||
Parameter |
Units |
Min Typical Max Supplement |
||||
Frequency |
MHz |
45 |
1000 |
|||
Flatness |
dB |
±0.75 |
||||
AGC |
dB |
±1 |
Pin:-7~+1dBm |
|||
Port |
1 |
|||||
RF port |
F-female |
|||||
Output level |
dBµv |
81 |
82 |
83 |
Pin:-7~+1dBm |
|
Return loss |
dB |
-16 |
||||
Output Impedance |
Ω |
75 |
||||
CNR |
dB |
46 |
||||
CSO |
dB |
65 |
||||
CTB |
dB |
67 |
||||
Optical Typical Performance |
||||||
Parameter |
Units |
Min Typical Max Supplement |
||||
Wavelength |
nm |
1260 |
1600 |
|
||
Responsivity |
A/W |
≥0.9 |
|
|||
Return loss |
dB |
≥55 |
||||
Receiving power |
dBm |
-7 |
+1 |
|||
Optical connector |
SC/APC |
SC/APC or FC/APC |
||||
General feature |
||||||
Parameter |
Units |
Min Typical Max Supplement |
||||
Power supply |
V |
11 |
12 |
13 |
||
Power consume |
W |
2 |
||||
Work temp |
°C |
-20 |
+55 |
|||
Storage temp |
°C |
-40 |
+85 |
|||
Size |
cm |
8*7*2.4 |
W×D×H |
|||
Key Features |
Optical CATV home receiver |
Ultra low noise technology |
Very low distortion |
Wide range of optical input power |
Single-mode fiber high return loss |
F-female 75 ohm RF output |
Main application |
CATV HFC networks |
FTTH FTTP networks |
