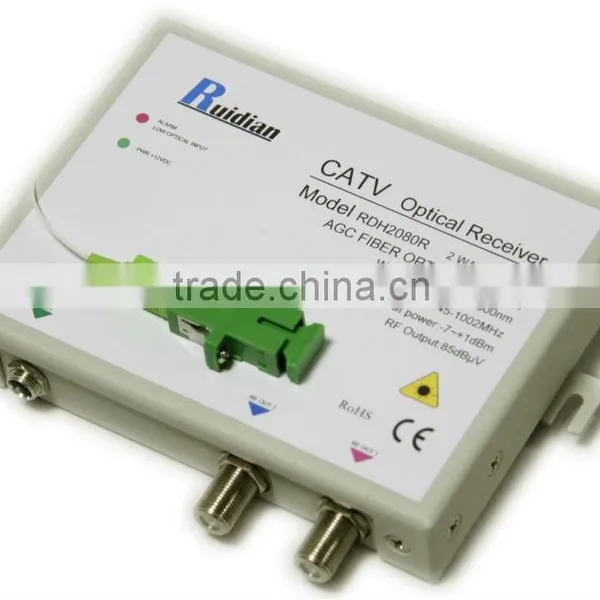

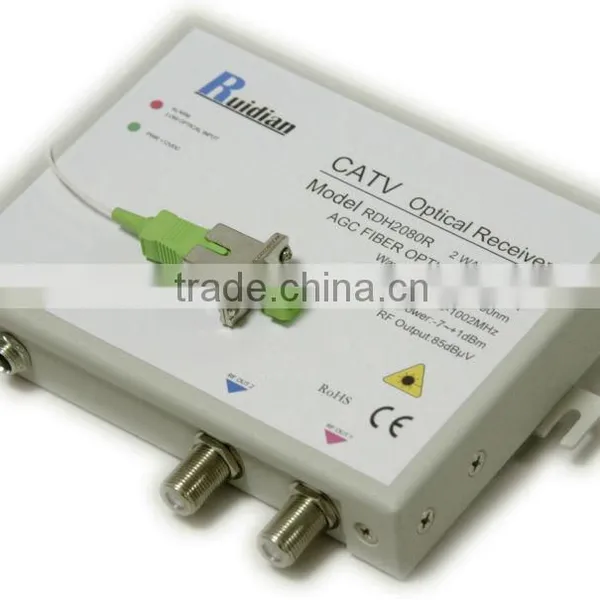

FTTH CATV Two Ways Fiber Optic AGC Receiver/Fiber Optic Node/catv equipment

RF Typical Performance

Parameter

Units

 Min   Typical   Max     Supplement

Frequency

MHz

45

1002

Flatness

dB

±0.75

AGC

dB

±1

Pin:-7~+1dBm

Port

2

RF port

F-female

Output level

dBµv

84

85

86

Pin:-7~+1dBm

Return loss

dB

-16

Output Impedance

Ω

75

CNR

dB

                    46

CSO

dB

                    66

CTB

dB

                    68

Optical Typical Performance

Parameter

Units

 Min   Typical   Max      Supplement

Wavelength

nm

1260

1600

Responsivity

A/W

≥0.9

Return loss

dB

≥55

Receiving power

dBm

-7

+1

Optical connector

SC/APC

 SC/APC or FC/APC

General feature

Parameter

Units

 Min   Typical   Max     Supplement

Power supply

V

11

12

13

Power consume

W

3

Work temp

°C

-20

+55

Storage temp

°C

-40

+85

Size

cm

14*10*2.4

W×D×H

Key Features

Optical CATV home receiver

Ultra low noise technology

Very low distortion

Wide range of optical input power

Single-mode fiber high return loss

F-female 75 ohm RF output

Main application

CATV HFC networks

FTTH FTTP networks
