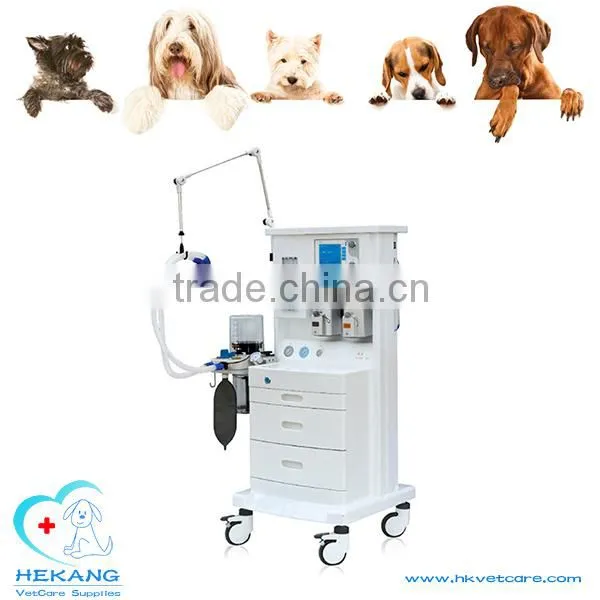

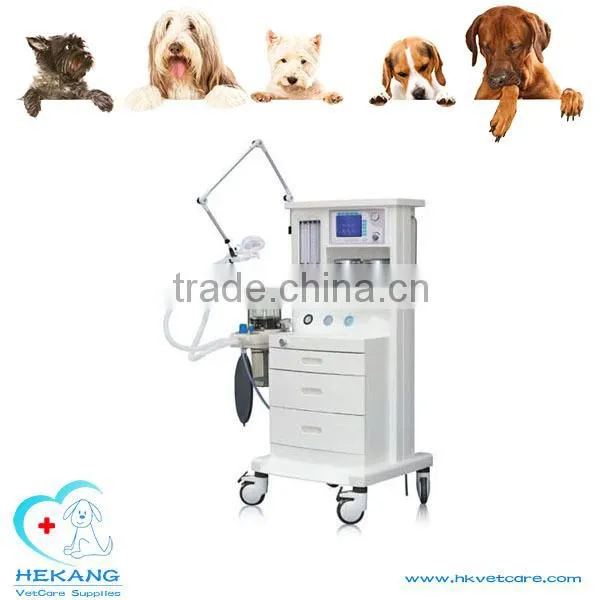

HK-560B4V good quality mobile anesthesia machine
model: HK-560B4V
Specifications
High-strength engineering plastic rack, light,beautiful and corrosion resistan
anesthesia machine HK-560B4V
| Main body | High-strength engineering plastic rack, light,beautiful and corrosion resistant | |
| Scope of application | adult, child | |
| Gas source | O2: 0.27~0.55MPa N2O: 0.27~0.55MPa | |
| Flow meter | O2: 0.1~1.0L/min 1.1~10L/min | |
| N20: 0.1~1.0L/min 1.1~10L/min | ||
|
O2, N2O linkage and N2O Stopper When using nitrous oxide, oxygen concentration>25%; When the oxygen pressure<0.2Kpa, the flow of nitrous oxide would be cut off. | ||
| Flow rate of rapid oxygen supply | 25~75L/min | |
| Low oxygen pressure alarm |
There will be sound alarm when the oxygen pressure < 0.2MPa |
|
| Vaporizer |
it has the function of automatic compensation based on pressure, temperature, and flow rate. The regulation range of evaporator concentration is 0~5 vol%. Among Halothane,Enflurane,Isoflurane and Sevoflurane,two can be chosen for application as required by the customer. And vaporizers that are imported with original packaging are also available. |
|
| Respiratory circuit |
working mode: all-close, semi-close, semi-open APL: 0.5~7 kPa |
|
| Respiratory Bellows |
bellows for adults, bellows for children tidal volume range:0~1,500 ml |
|
| Ventilator | ||
| Display mode | High-definition 5.7” LCD screen display | |
| Ventilation mode | IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH | |
| Ventilation parameters | Tidal volume | 50~1500 ml |
| Rate | 2~99 bpm | |
| SIMV rate | 2~20 bpm | |
| I E | 2 1~1 8 | |
| Inspiratory trigger pressure | -1.0~2.0 kPa | |
| PEEP | 0~2.0 kPa | |
| Pressure range | 1.0~6.0 kPa | |
| SIGH | 1.5 times the inspiratory time | |
| Parameters for ventilation monitoring | tidal volume, ventilation volume, IPPV rate,SIMV rate, total respiratory rate, I/E, peak pressure of airway, pressure - time waveform, flow rate - time waveform, PEEP, inspiratory trigger pressure | |
| Monitoring of oxygen concentration | (21%~100%) |
|
