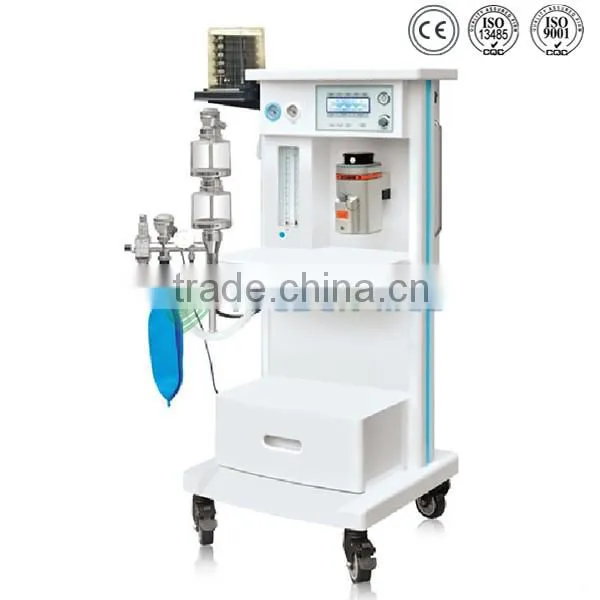

Vet Anesthesia Machine With Portable Medical Ventilator Price

Main body

High-strength engineering plastic rack, light,

beautiful and corrosion resistant

Scope of application

adult, child

Gas source

O2: 0.27~0.55MPa

Flow meter

O2: 0.1~2L/min    2.5~10L/min

Flow rate of rapid oxygen supply

25~75L/min

Low oxygen pressure alarm

There will be sound alarm when the oxygen

pressure < 0.2MPa

Vaporizer

It has the function of automatic compensation based on pressure,temperature,and flow rate.The regulation range of evaporator concentration is 0~5 vol%.Among Halothane,Enflurane,Isoflurane and Sevoflurane,one can be chosen for application as required by the customer.

Respiratory circuit

working mode: all-close, semi-close, semi-open

releasing pressure: 0.5~7 kPa

Respiratory bellows

bellows for adults, bellows for children

tidal volume range:0~1500 ml

Ventilator

Display mode

Ventilation  mode

IPPV, MANUAL (Manual monitoring of tidal

volume, ventilation volume, respiratory rate)

Ventilation parameters

Tidal volume                50~1500ml

Rate                           2~99 bpm

SIMV rate                    2~20 bpm

I:E                             2:1~1:8

Inspiratory trigger pressure     -1.0~2.0 kPa

Pressure range                      1.0~6.0 kPa

Parameters for ventilation monitoring

tidal volume, ventilation volume, IPPV rate,

I/E, peak pressure of airway, inspiratory

trigger pressure, pressure - time waveform

Security Alarm System

Airway pressure alarm

upper limit setting range        1.0~6.0 kPa

low limit setting range          0.4~2.0 kPa

Per-minute ventilation volume alarm

upper limit setting range        3.0~30L/min

low limit setting range          1.0~10L/min

Sustained high-pressure alarm

it will give alarm when stress have consistently

been higher than 2.5 kPa

Suffocation alarm

it will give sound and light alarm if there is

no tidal volume input in 15s

Power alarm

Power

AC 220V±10%     50Hz±1Hz.
