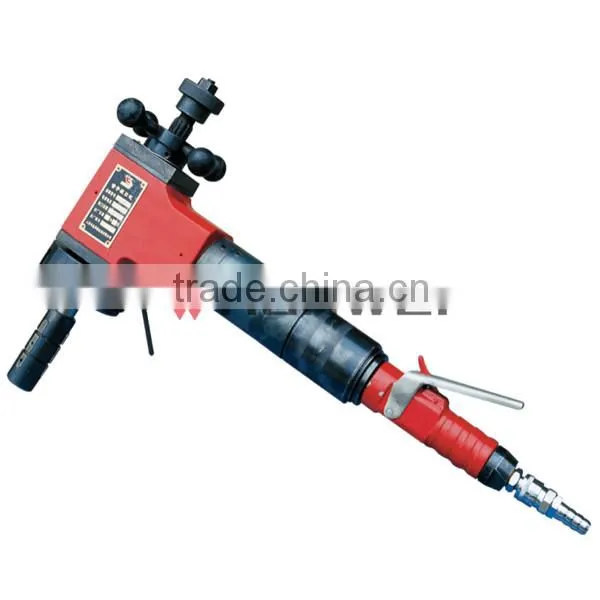

GPK-80 Pneumatic pipe beveller
1.This series machines are driven by blade type pneumatic motor and run with low speed of torque obtained from planetary gear set.
2.The blade holder is equipped with automatic feeding unit.The bevel angle of this series is within 0-37degree.
|
Order NO. |
Model NO. |
Input Air Pressure (motor)MPA |
Air Consumption | Diameter of pipe | MAX width of beveling MM | Milling speed |
MAX Flange Range | Weight |
| HW5501 | GPK-28 | 0.6 | 900 | 16-28 | 8 |
53 | 25 | 7.8 |
| HW5502 |
GPK-80
|
0.6 | 900 | 28-80 |
15 |
100 | - | 13.6 |
| HW5510 |
GPK-150 |
0.6 |
900-1100 | 65-159 | 15 |
34 | - | 30.8 |
| HW5515 | GPK-250 | 0.6 | 900-1100 | 80-240 | 15 | 23 | - | 45.2 |
| HW5516 | GPK-250-II | 0.6 | 900-1100 | 80-240 | 75 | 23 | 145 | 54.2 |
| HW5520 | GPK-351-! | 0.6 | 900-1100 | 159-351 | 15 | 14 | - | 58.2 |
| HW5521 | GPK-351-II | 0.6 | 900-1100 | 159-351 | 75 | 14 | 145 | 66.4 |
| HW5530 | GPK-630-! | 0.6 | 900-1200 | 351-630 | 15 | 10 | - | 119.3 |
| HW5531 | GPK-630-II | 0.6 | 900-1200 | 351-630 | 75 | 10 | 145 | 115.3 |
| HW5534 | GPK-630-III | 0.6 | 3600 | 610-820 | 15 | 13.5 | 54 | 152 |
1.After quality testing,our products will be well packed.
First plastic film inside
Then Packed by EPE foam
Free fumigation wooden carton outside
The enterprise of Huawei start at 1983 when we produced the first set of electrode dryer. Shanghai Huawei Welding & Cutting Machine Co., Ltd.was incorporated at 1995, which is the leading enterprise in domestic industry and has always specialized in R&D and manufacturing of cutting & welding machinery for 30 years. Our featured products are gas cutting machine series, CNC cutting machine, welding tractor,beveling machine, electrode dryer and oven, and other welding & cutting accessories.
The Company covers an area of 26, 000 m2 and the construction area is 32, 000 m2. There are more than 450 employees and 72 technicians in total together with Shanghai Welding & Cutting Tool Works and Jiangsu Haoguanjia Rubber Industry Co., Ltd. The Company has solid technical force and advanced test equipment. Since its incorporation, the Company has passed ISO9001 Quality Management System Certification and CE
Product Certification successively. Based on the complete selling network and after-sale service, the Huawei brand products gradually occupy the international market and win the trust of customers at home and abroad.
The tenet of the Company is "Strives for the survival by quality, pursue efficiency by the management and seek development with science and technology". We warmly welcome customers to visit our company.
