Home > Manufacturing & Processing Machinery > Metallurgy Machinery > ISY-80 Electric Pipe Beveler Machine

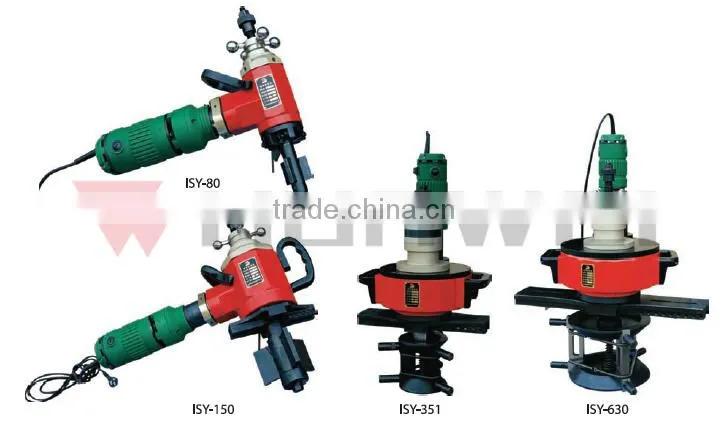

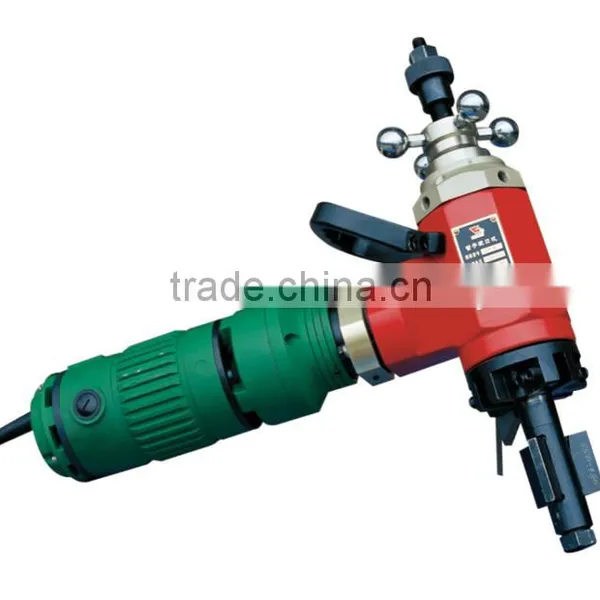

ISY-80 Electric Pipe Beveler Machine
US$ 480 - 550
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
HUAWEI
Model Number:
ISY-80
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CHP-30 Walking Style Plate Beveling MachineUS$ 1,000 - 2,000MOQ: 1 Set -
CHP-17 Walking Style Plate Beveling MachineUS$ 1,000 - 2,000MOQ: 1 Set
-
CHP-17 Milling Machine for SaleUS$ 1,000 - 2,000MOQ: 1 Set
-
CHP-17 Universal Milling Machine PriceUS$ 1,000 - 2,000MOQ: 1 Set
-
CHP-30 Small Milling MachineUS$ 1,000 - 2,000MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
HUAWEI
Model Number
ISY-80
After-sales Service Provided
Overseas service center available
Pipe Beveling machine
ISY series machine powered by 220 Voltage, features internal expanding structure and easy for operating. It is mainly applied in
the beveling process for different requirements.
Machine specification
| Model No. | I.D of Beleling Pipe | O.D of Beveling | Width of Beveling | MAX.Thickness | Range of Feeding | Weight (kg) |
| ISY-28 | 16-28mm | 18-32mm | ≤8mm | 25mm | 0.15 | 8.5 |
| ISY-80 | 28-76mm | 32-80mm | ≤15mm | 35mm | 0.15 | 16.6 |
| ISY-150 | 65-159mm | 73-180mm | ≤15mm | 50mm | 0.15 | 33.8 |
| ISY-250 | 80-240mm | 90-270mm | ≤15mm | 50mm | 0.15 | 51.2 |
| ISY-250-II | 80-240mm | 90-270mm | ≤50mm | 50mm | 0.15 | 60.2 |
| ISY-351 | 150-330mm | 163-351mm | ≤15mm | 55mm | 0.15 | 61.3 |
| ISY-351-II | 150-330mm | 163-351mm | ≤75mm | 55mm | 0.15 | 69.4 |
| ISY-630 | 280-600mm | 300-630mm | ≤15mm | 55mm | 0.15 | 122.3 |
| ISY-630-II | 280-600mm | 300-630mm | ≤75mm | 55mm | 0.15 | 118.3 |
| ISY-850-II | 610-820mm | 630-850mm | ≤15mm | 54mm | 0.175 | pa 162 |
