Ignition Pulse Sensor

Ignition Pulse Sensor photo-1

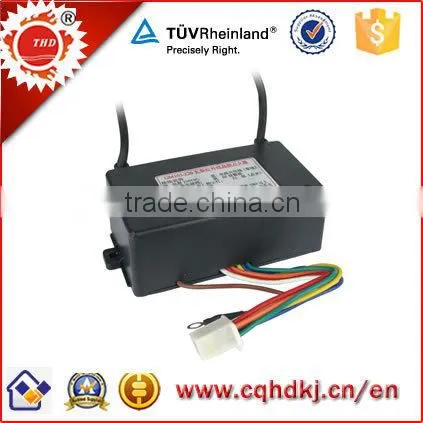

Ignition Pulse Sensor photo-2

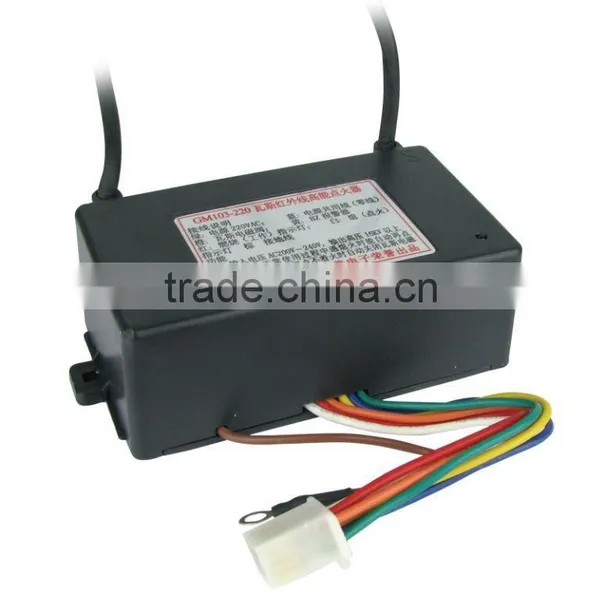

Ignition Pulse Sensor photo-3

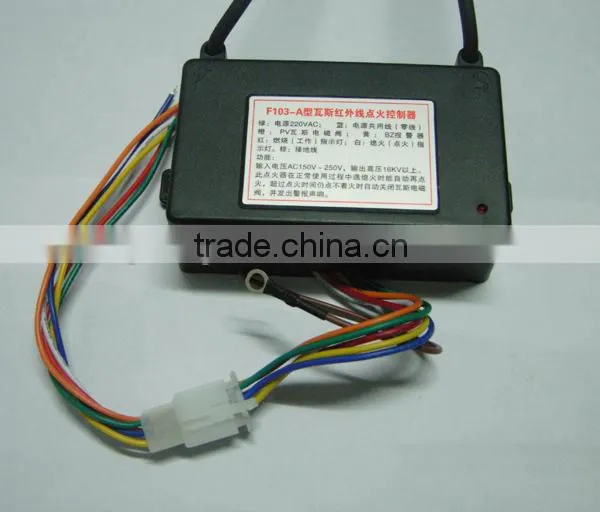

Ignition Pulse Sensor photo-4

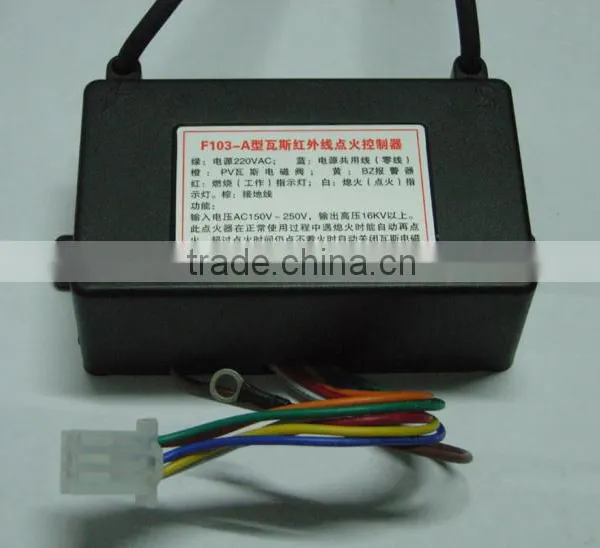

Ignition Pulse Sensor photo-5

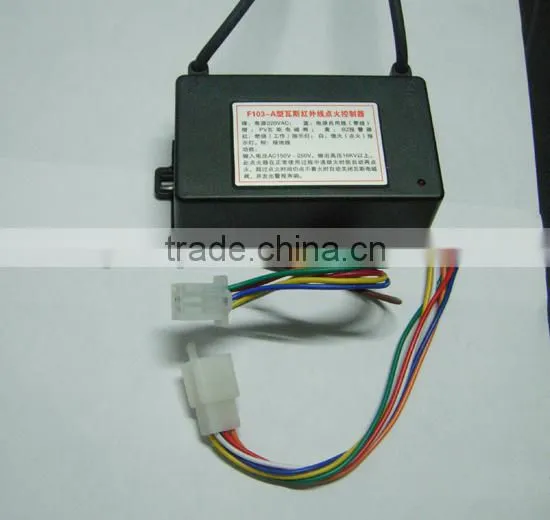

Ignition Pulse Sensor photo-6
US$ 10 - 30 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
THD
Model Number:
F103
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Chongqing, China
Brand Name THD
Model Number F103
Usage Gas Sensor
Theory Resistance Sensor
Output Other

Ignition pulse sensor

Company Information





Product Description

 Product Purpose :

This product is mainly used for the ignition and control of industrial equipment with the energy of liquefied petroleum gas, natural gas and coal gas.



Features:

    Electric ignition or switching control ignition

    Ignite the gas again automatically if the fire went out accidentally.

    Automatic monitoring or photoelectric control. If the fire went out, it can give warning automatically.

    If it failed to ignite the gas or the fire went out accidentally, it can cut off the gas supply immediately.

    Technology of Single-chip and digital microcomputer

    lightning proof



Technical Parameter:

No

Items

Quotas

Remarks

1

Rated operational voltage

VAC



2

Discharge frequency

50HZ



3

Arcing distance

≥6mm



4

Duration of ignition

10s

It can be adjusted according to your requirements

5

Duration of rekindling

10s



6

Discharge energy

≥4J



7

Discharge cycle

≤400ms



8

Width

≥12μs



9

Deferent high pressure

≥15KV

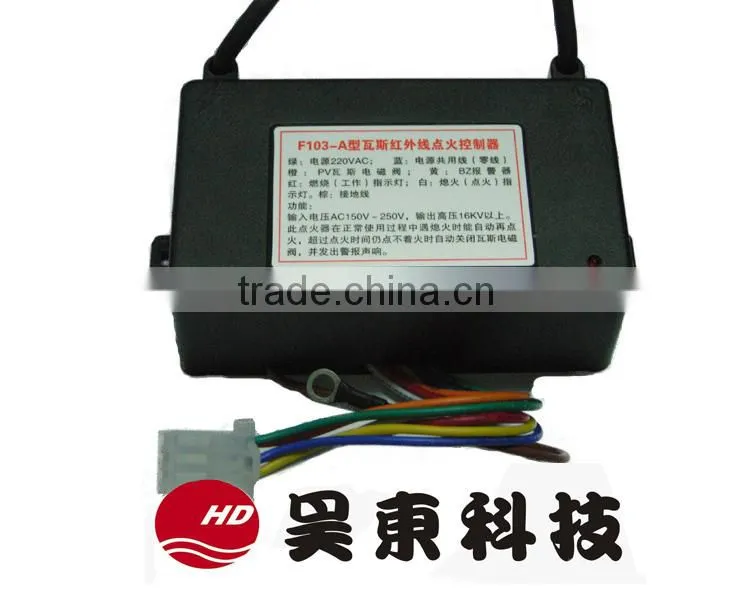

Detail picture for Ignition pulse sensor

 Ignition pulse sensor

Technical parameter:



No

Items

Quotas

Remarks

1

Rated operational voltage

110/220VAC



2

Discharge frequency

50HZ



3

Arcing distance

≥6mm



4

Duration of ignition

10s

It can be adjusted according to your requirements

5

Duration of rekindling

10s



6

Discharge energy

≥4J



7

Discharge cycle

≤400ms



8

Width

≥12μs



9

Deferent high pressure

≥15KV
