Diaphragm Valve 220 Volt Solenoid Valve 2W200-20
US$ 10 - 110
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Control
Pressure:
Low Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12 Volt Solenoid Valve 2W160-25US$ 50 - 110MOQ: 10 Pieces -
24 Volt Solenoid Valve PU220-04US$ 50 - 110MOQ: 10 Pieces
-
Normally Closed Brass Solenoid 12 Volt Water Valve 2W160-15US$ 10 - 60MOQ: 10 Pieces
-
Gas/Oil/Watrer/Air Solenoid ValveUS$ 6 - 12MOQ: 10 Pieces
-
Factory Price DC, AC Direct Drive Water Solenoid ValveUS$ 9 - 50MOQ: 10 Pieces
Standard or Nonstandard
Standard
Structure
Control
Pressure
Low Pressure
Power
Solenoid
Material
Brass
Temperature of Media
Normal Temperature
Media
Gas
Port Size
3/4inch
Place of Origin
Zhejiang, China
Model Number
2W200-20
Brand Name
NBFYD
Application
General

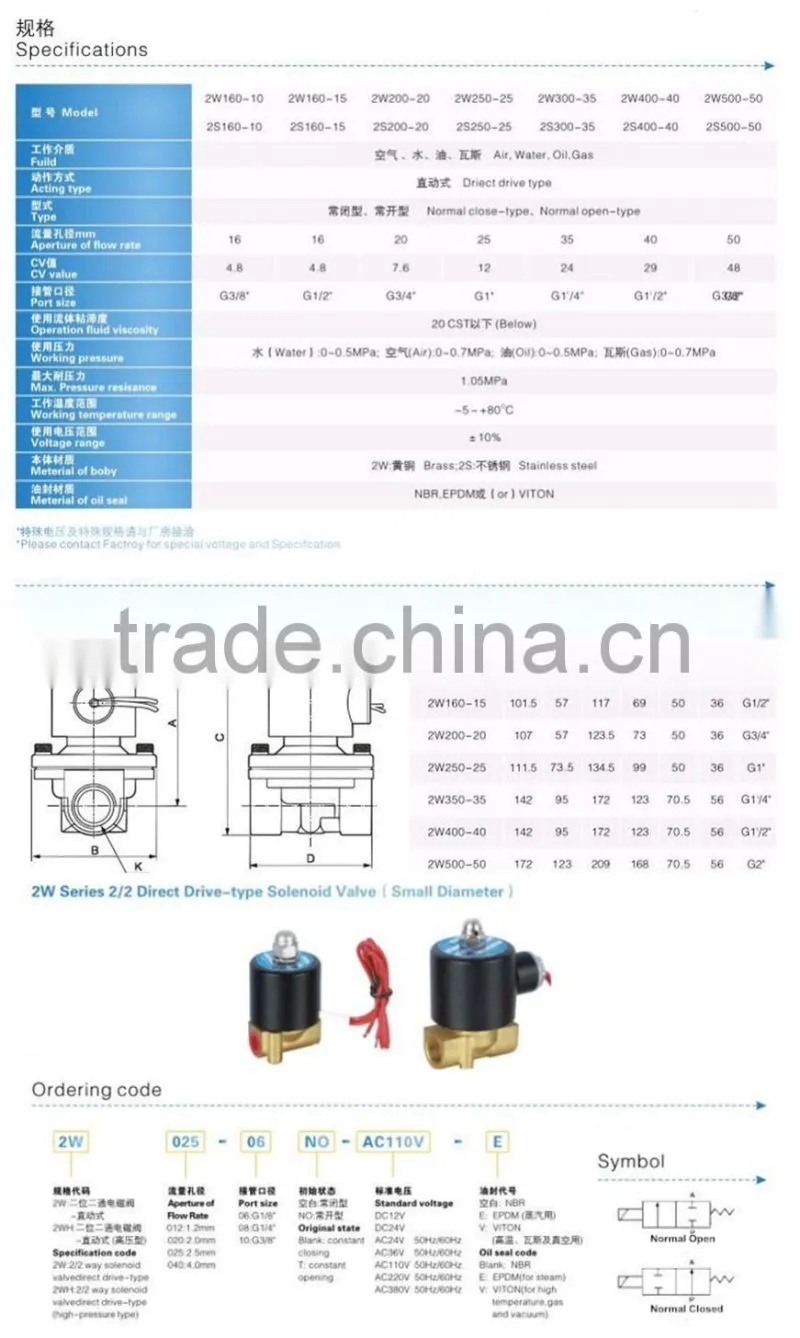

Diaphragm valve 220 volt solenoid valve 2W200-20
Now we manufacture four series solenoid valve,2W,S,L and PU series.Voltage range is DC12,24,36;AC36,110,220,380V ,they can be widly used in gas,oil,air medium.

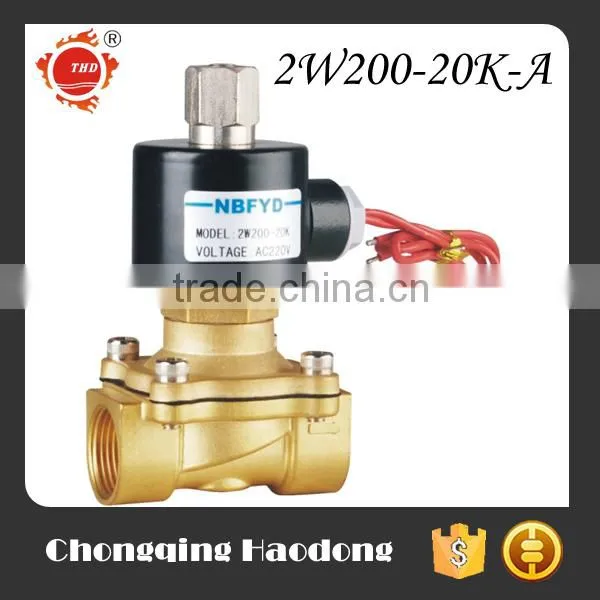

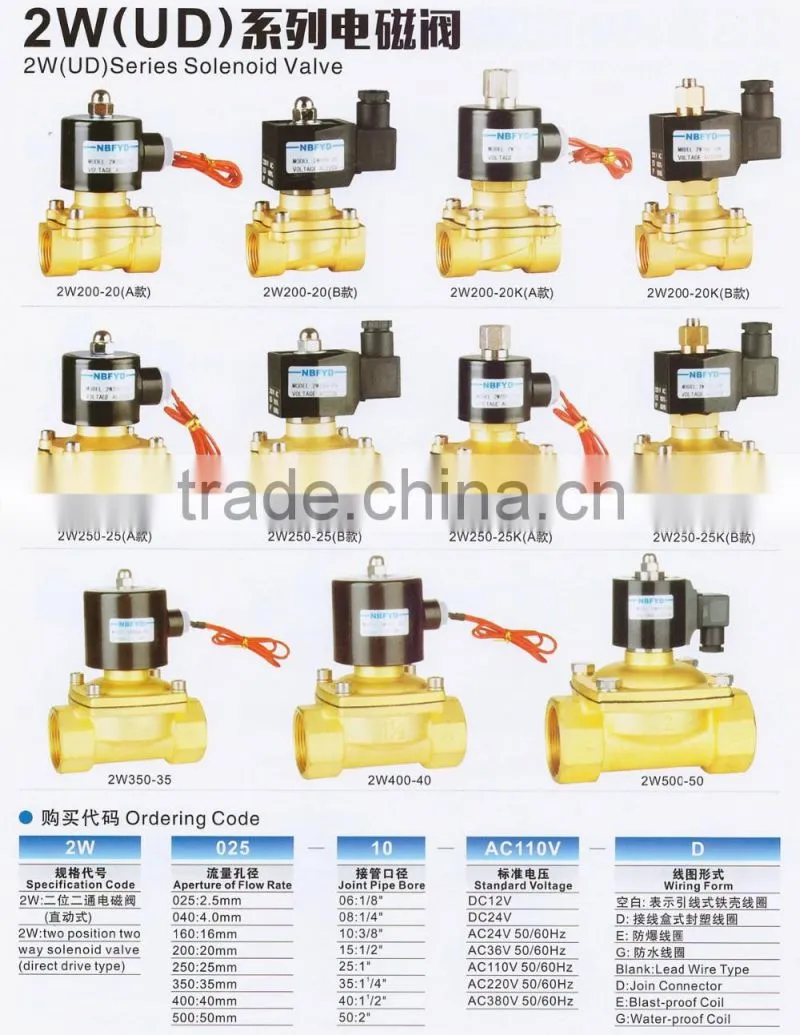

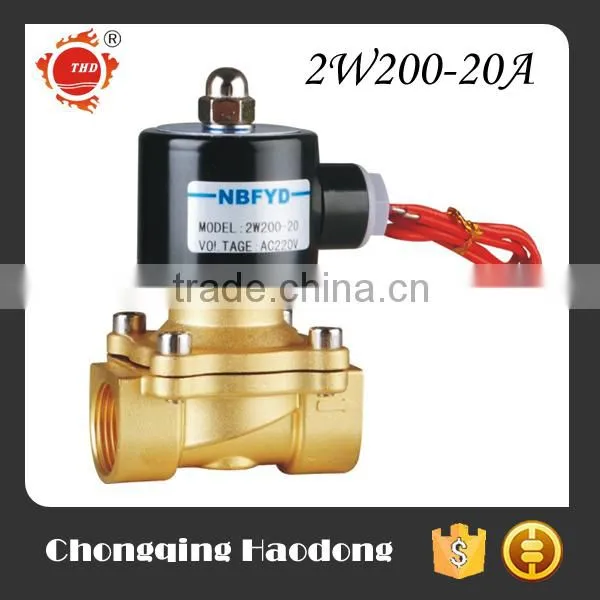

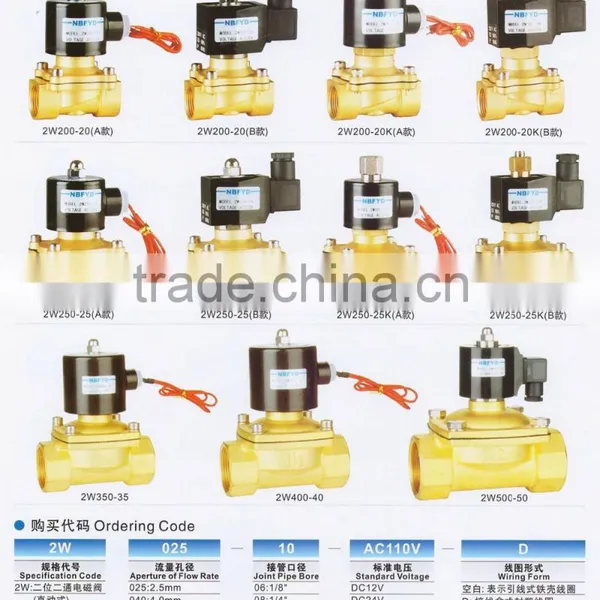

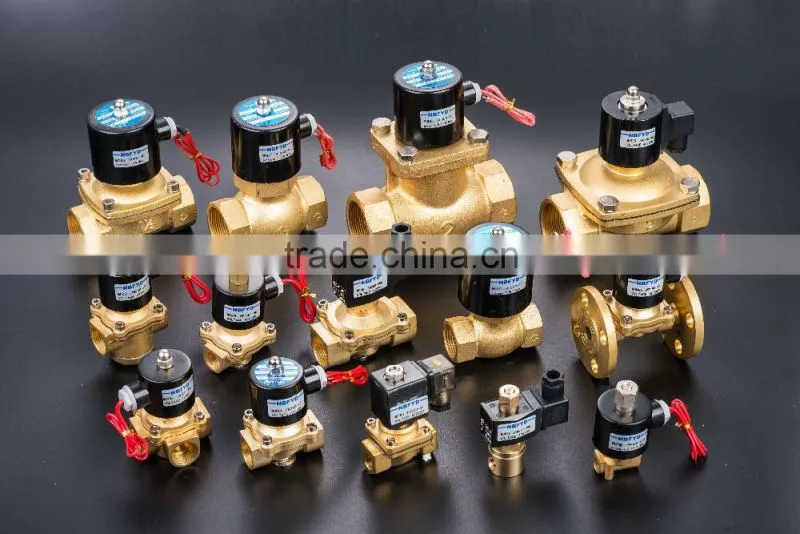

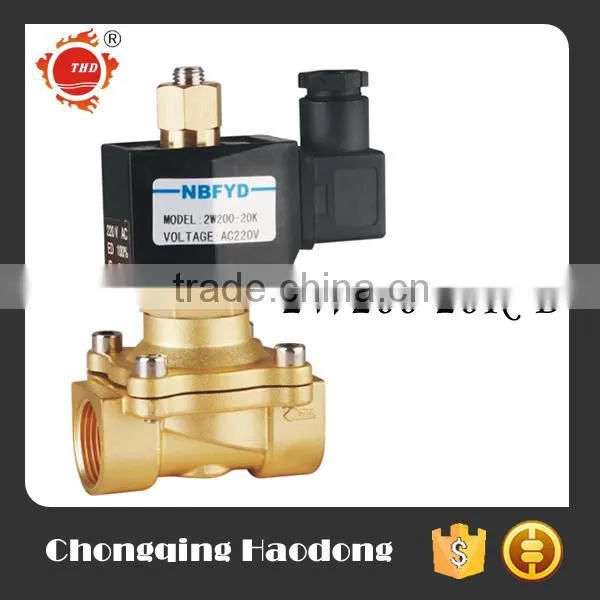

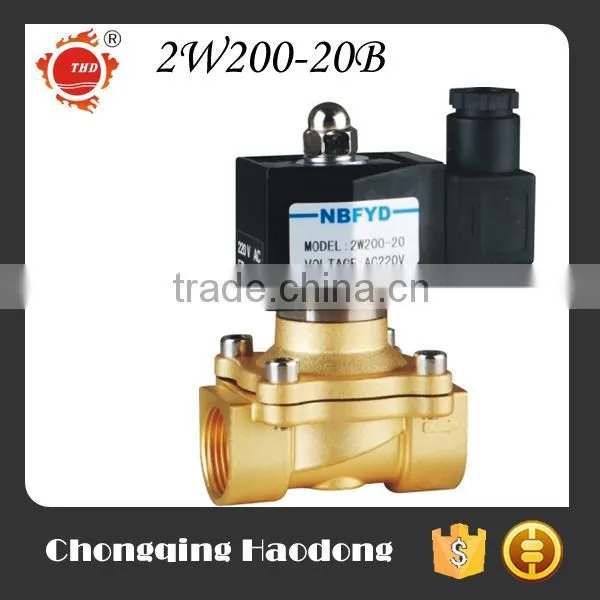

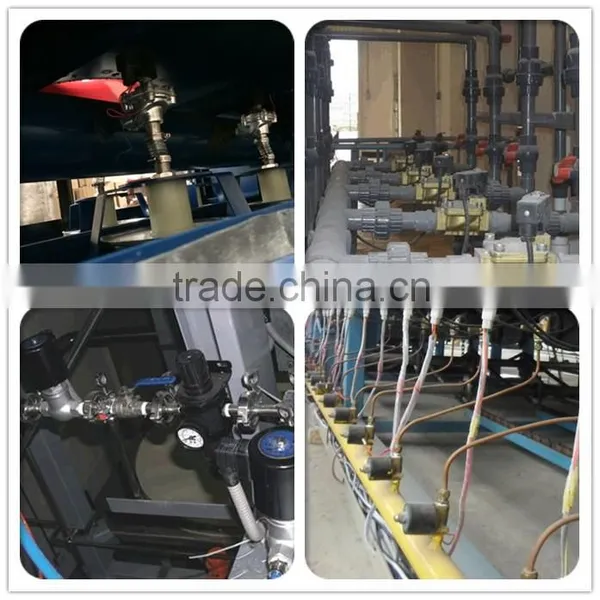

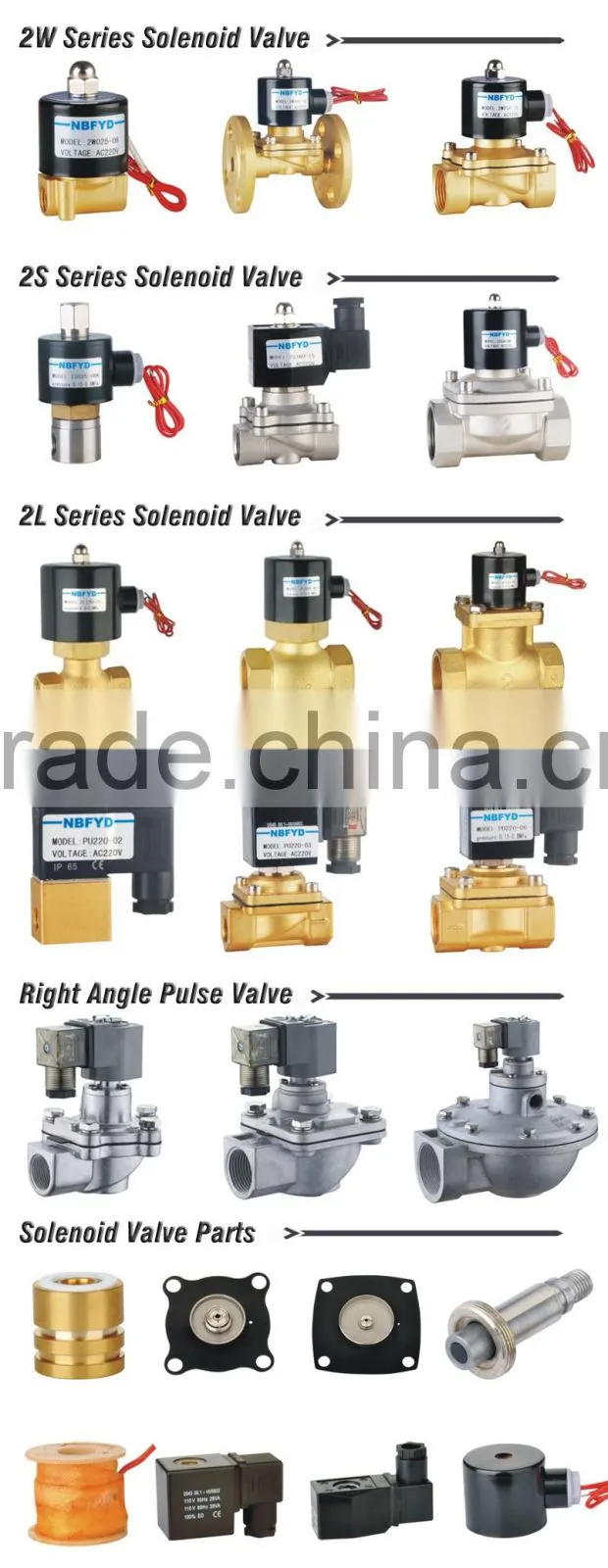

Some photos for reference:
| Model | Sealing material | Material of Body | Orifice Size(mm) | Port Size | Motion Pattern | Working Pressure KGF/CM |
Max valve pressure | Oil Seal Material | ||
| NBR | VITON | PTFE | ||||||||
| 2W025-06 | √ | Brass | 2.5 | 1/8 | Direct Drive | 0~7 | 10 | NBR. EPDM or VITON | ||
| 2W025-08 | √ | 2.5 | 1/4 | |||||||
| 2W040-10 | √ | 4 | 3/8 | |||||||
| 2W160-15 | √ | √ | 16 | 1/2 | Water:0~5 Oil:0~5 Gas:0~7 Air:0~7 |
10.5 | ||||
| 2W200-20 | √ | √ | 20 | 3/4 | ||||||
| 2W250-25 | √ | √ | 25 | 1 | ||||||
| 2W350-35 | √ | √ | 35 | 1 1/4 | ||||||
| 2W400-40 | √ | √ | 40 | 1 1/2 | ||||||
| 2W500-50 | √ | √ | 50 | 2 | ||||||
| 2S160-15 | √ | √ | Stainless steel #304&316 | 16 | 1/2 | Direct Drive | Water:0~5 Oil:0~5 Gas:0~7 Air:0~7 |
10.5 | NBR. EPDM or VITON | |
| 2S200-20 | √ | √ | 20 | 3/4 | ||||||
| 2S250-25 | √ | √ | 25 | 1 | ||||||
| 2S350-35 | √ | √ | 35 | 1 1/4 | ||||||
| 2S400-40 | √ | √ | 40 | 1 1/2 | ||||||
| 2S500-50 | √ | √ | 50 | 2 | ||||||
| PU220-01 | √ | Brass | 1.5 | 1/8 | Direct Drive | 0~7 | 10.5 | NBR.EPDM or VITON | ||
| PU220-02 | √ | 2.3 | 1/4 | |||||||
| PU220-03 | √ | 8 | 3/8 | |||||||
| PU220-04 | √ | 13 | 1/2 | |||||||
| PU220-06 | √ | 20 | 3/4 | |||||||
| PU220-08 | √ | 25 | 1 | |||||||
| 2L170-10 | √ | Brass | 17 | 3/8 | Pilot-operated | 1~15 | 22.5 | PTFE | ||
| 2L170-15 | √ | 17 | 1/2 | |||||||
| 2L170-20 | √ | 17 | 3/4 | |||||||
| 2L200-25 | √ | 22 | 1 | |||||||
| 2L300-35 | √ | 30 | 1 1/4 | |||||||
| 2L300-40 | √ | 30 | 1 1/2 | |||||||
| 2L500-50 | √ | 50 | 2 | |||||||
We have similar solenoid valve and spare parts
