Product Name: low price 24v dc solenoid control valve
Specification of low price 24v dc solenoid control valve
| Model | 2W025-06 | 2W025-08 | 2W040-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Orifice(mm) | 2.5 | 2.5 | 4 | 16 | 20 | 25 | 35 | 40 | 50 |
| Port size | 1/8'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1 1/4'' | 1 1/2'' | 2'' |
| Working Medium | Air, Oil, Gas, Water | ||||||||
| Type | Normal Close (Direct drive) | ||||||||
Working Pressure |
0~07 kgf/cm3 | ||||||||
| Temperature | 5~80C | ||||||||
| Voltage | DC12V,24V; AC24V, 36V, 110V, 220V, 380V. | ||||||||
| Body material | Brass | ||||||||
| Oil seal | NBR:EPDM, VITON | ||||||||

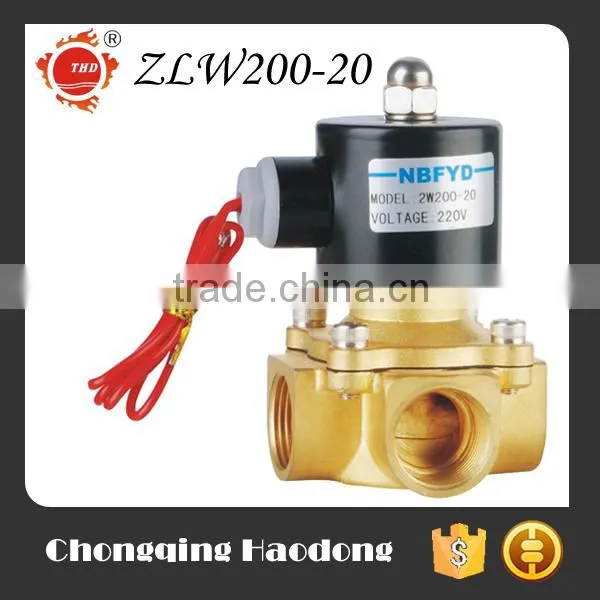

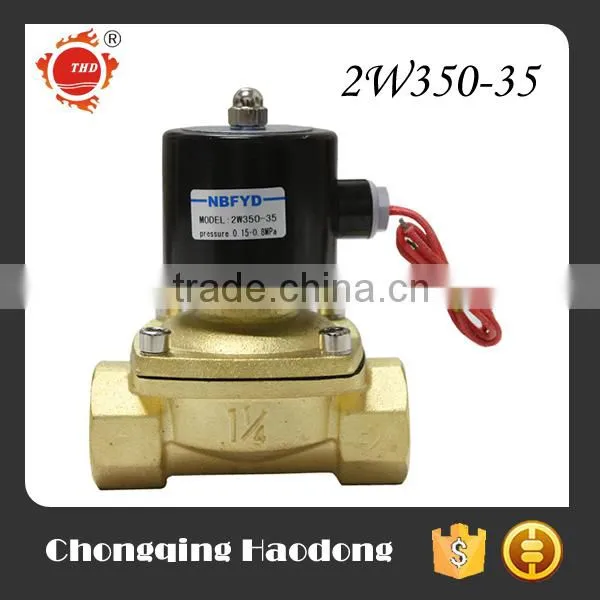

Detail photos of low price 24v dc solenoid control valve

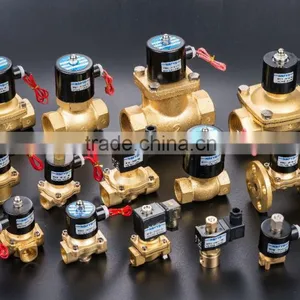

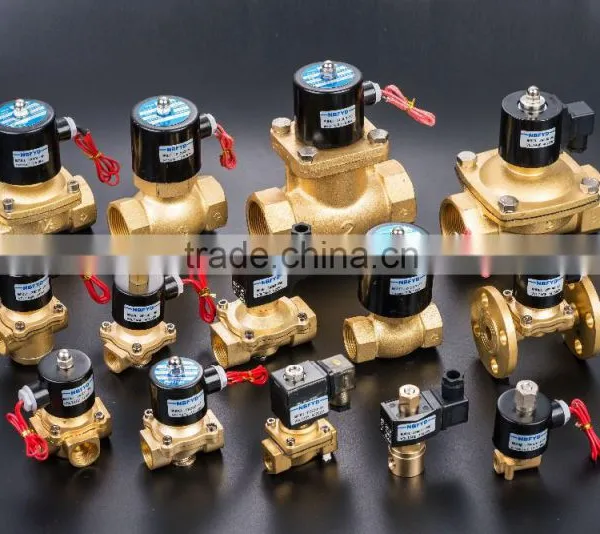

More product of low price 24v dc solenoid control valve
Voltage:
DC - 12V,24V AC - 24V,AC 120V, 240V@60HZ 110V, 220V@50HZ Tolerance: +/- 10%
Material:
Body - Brass or Stainless steel
Seal -NBR, EPDM, PTFE or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
Characteristic:
1.Direct lifting diaphragm construction;
2.Open from zero bar for low pressure system use;
3.High frequency of DIN plug coil
4.Medium:Air, City Gas, Water, Oil, Petroleum, steam,etc.
5.Pressure: 0.00MPa ~ 1.0MPa.
6.Port Thread:BSPP ,BSPT ,NPT ,Flange, UNF, M8X1
Temperature:
NBR Seal: 14F to 176F , -10 to 80
EPDM Seal: 14F to 250F , -10 to 120
VITON Seal : 14F to 300F, -10 to 150.
Port Size:3/8,1/2,3/4,1,1 1/4,1 1/2,2
Orifice (mm): 12,15,20,25,32,40,50

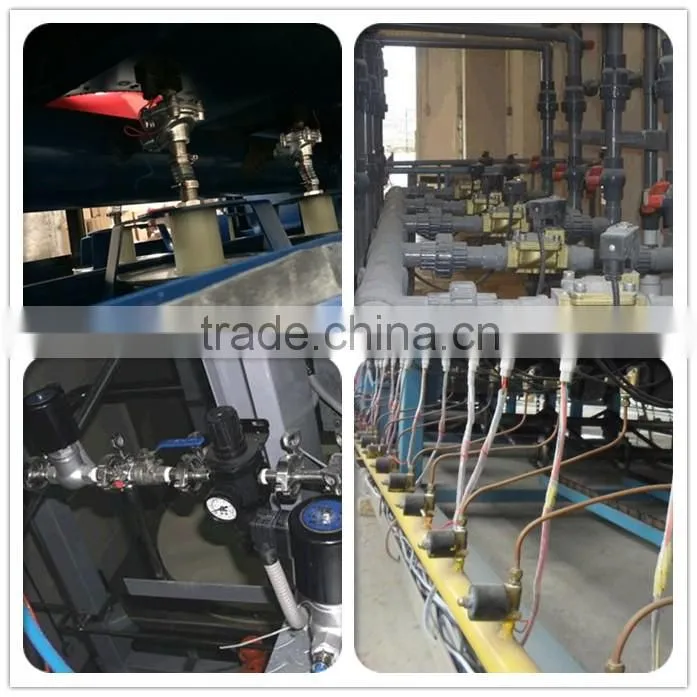

Application of low price 24v dc solenoid control valve

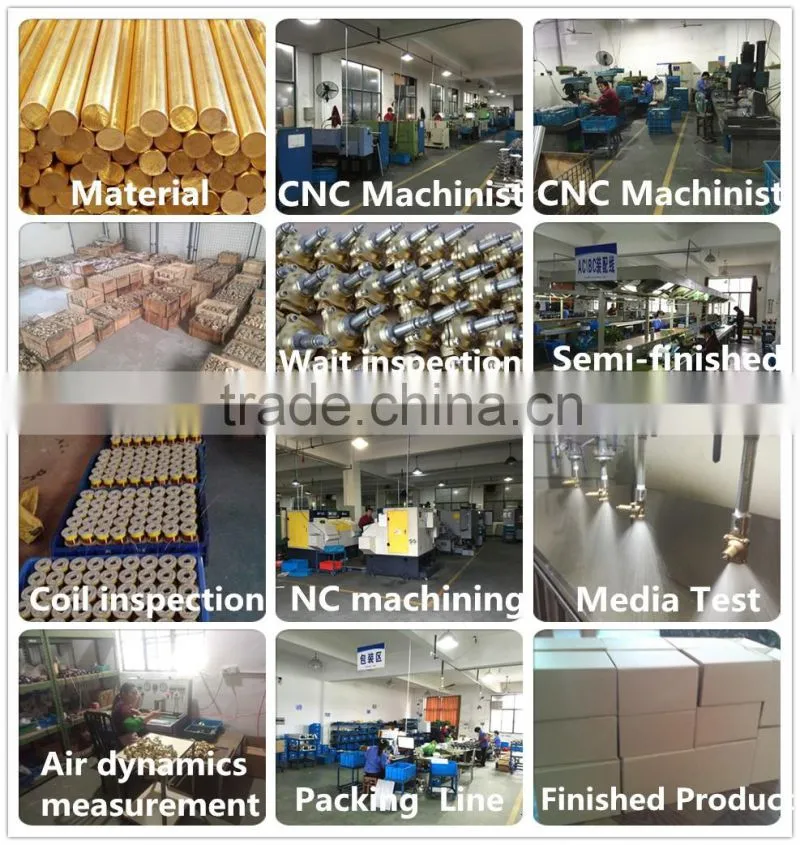

Our factory is located in Yunhuan county, Zhejiang province, where is the famous production base of valve.
Various kinds of valve, low price solenoid valve, nozzle, connector, sanitary accessories are produced by us.
Base on the “quality is the life of enterprise”, our company supply high quality products, also could customized by customers requirements. Welcome to inquiry, we would cooperate and benefit with you.
1).Cotton cloth bag and bubble bag inside
2).inner packing box
1. How many years guarantee for low price solenoid valve?
Generally speaking 1 years with proper use.
2. What is your MOQ?
500pcs.
3. How about the delivery time?
Diffenertl order in 5 - 40 days.
4. Can we get sample to check quality?
of course, samples is ok to check the quality.
5. How many days for arranging samples?
3-7days.
6. Do you charge for samples and freight?
customers need pay for them, then it will be return to you in official order.
7. What is your payment.
T/T, L/C, CASH, PAYPAL, WESTER UNION can be accepted.
Please contact with me for details about low price solenoid valve.
