Product Name: Top quality brass 2 way 24 volt solenoid valve
Now we have four series solenoid valve, 2W, 2L, 2S and PU series,they are widely used for water,gas,oil ,air and other mediums.With different sealing material,coill material,boday material,those series can meet most requipments for customers. if you have any other special inquiry,just tell us,we will try to support you!
Technical parameter of Top quality brass 2 way 24 volt solenoid valve
Voltage:
DC - 12V,24V AC - 24V,AC 120V, 240V@60HZ 110V, 220V@50HZ Tolerance: +/- 10%
Material:
Body - Brass or Stainless steel
Seal -NBR, EPDM, PTFE or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
Characteristic:
1.Direct lifting diaphragm construction;
2.Open from zero bar for low pressure system use;
3.High frequency of DIN plug coil
4.Medium:Air, City Gas, Water, Oil, Petroleum, steam,etc.
5.Pressure: 0.00MPa ~ 1.0MPa.
6.Port Thread:BSPP ,BSPT ,NPT ,Flange, UNF, M8X1
Temperature:
NBR Seal: 14F to 176F , -10 to 80
EPDM Seal: 14F to 250F , -10 to 120
VITON Seal : 14F to 300F, -10 to 150.
Port Size:3/8,1/2,3/4,1,1 1/4,1 1/2,2
Orifice (mm): 12,15,20,25,32,40,50

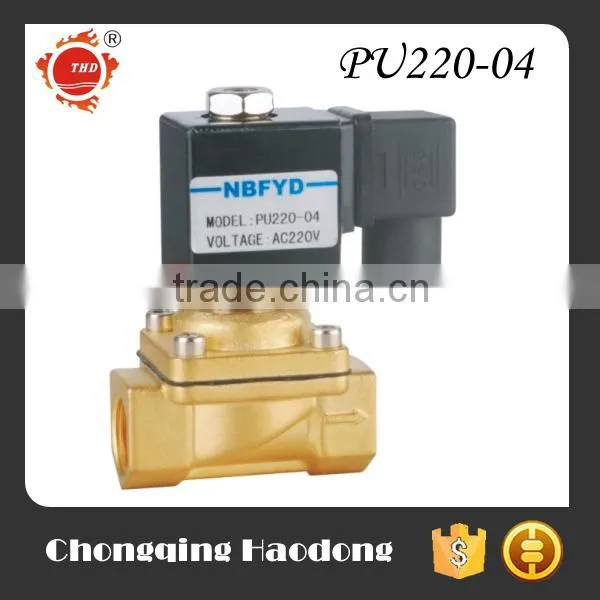

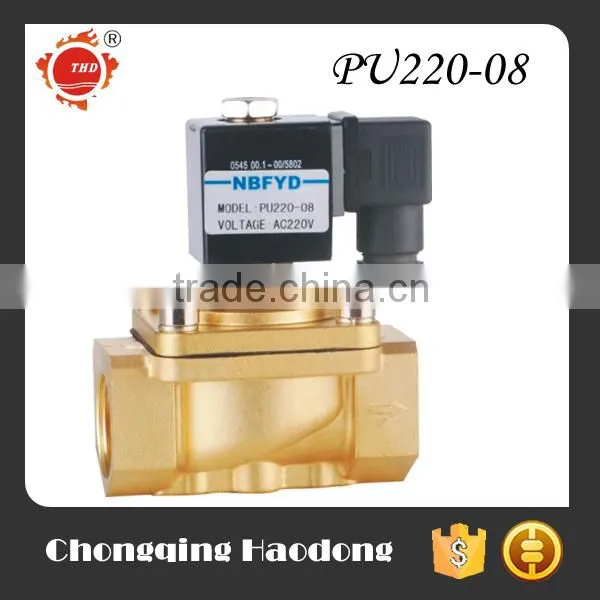

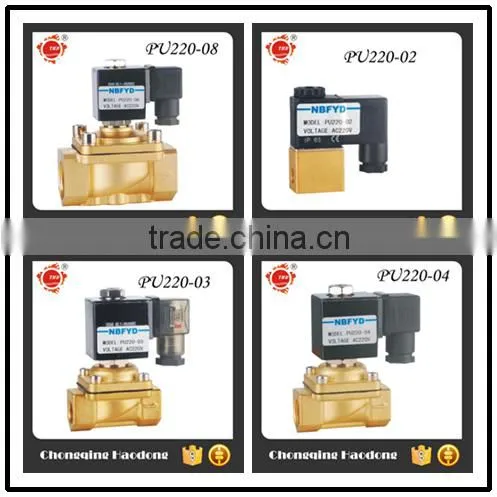

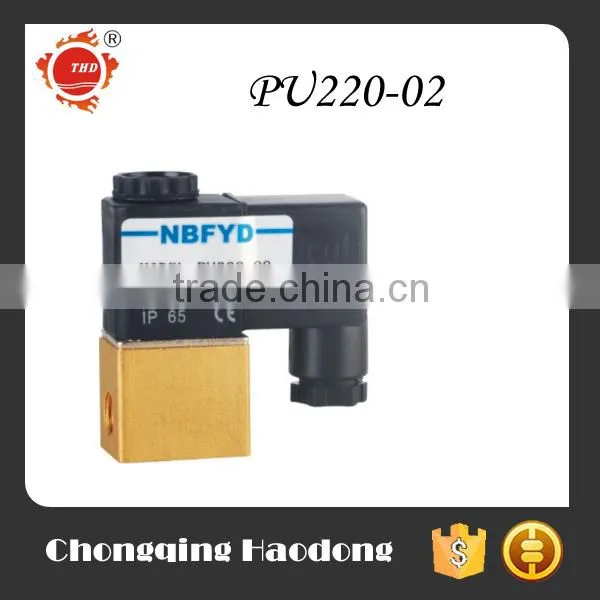

Photos of Top quality brass 2 way 24 volt solenoid valve
Specification of Top quality brass 2 way 24 volt solenoid valve
| Model | Sealing material | Material of Body | Orifice Size(mm) | Port Size | Motion Pattern |
Working Pressure KGF/CM |
Max valve pressure | Oil Seal Material | ||
| NBR | VITON | PTFE | ||||||||
| 2W025-06 | √ | Brass | 2.5 | 1/8 | Direct Drive | 0~7 | 10 | NBR. EPDM or VITON | ||
| 2W025-08 | √ | 2.5 | 1/4 | |||||||
| 2W040-10 | √ | 4 | 3/8 | |||||||
| 2W160-15 | √ | √ | 16 | 1/2 |
Water:0~5 Oil:0~5 Gas:0~7 Air:0~7 |
10.5 | ||||
| 2W200-20 | √ | √ | 20 | 3/4 | ||||||
| 2W250-25 | √ | √ | 25 | 1 | ||||||
| 2W350-35 | √ | √ | 35 | 1 1/4 | ||||||
| 2W400-40 | √ | √ | 40 | 1 1/2 | ||||||
| 2W500-50 | √ | √ | 50 | 2 | ||||||
| 2S160-15 | √ | √ | Stainless steel #304&316 | 16 | 1/2 | Direct Drive |
Water:0~5 Oil:0~5 Gas:0~7 Air:0~7 |
10.5 | NBR. EPDM or VITON | |
| 2S200-20 | √ | √ | 20 | 3/4 | ||||||
| 2S250-25 | √ | √ | 25 | 1 | ||||||
| 2S350-35 | √ | √ | 35 | 1 1/4 | ||||||
| 2S400-40 | √ | √ | 40 | 1 1/2 | ||||||
| 2S500-50 | √ | √ | 50 | 2 | ||||||
| PU220-01 | √ | Brass | 1.5 | 1/8 | Direct Drive | 0~7 | 10.5 | NBR.EPDM or VITON | ||
| PU220-02 | √ | 2.3 | 1/4 | |||||||
| PU220-03 | √ | 8 | 3/8 | |||||||
| PU220-04 | √ | 13 | 1/2 | |||||||
| PU220-06 | √ | 20 | 3/4 | |||||||
| PU220-08 | √ | 25 | 1 | |||||||
| 2L170-10 | √ | Brass | 17 | 3/8 | Pilot-operated | 1~15 | 22.5 | PTFE | ||
| 2L170-15 | √ | 17 | 1/2 | |||||||
| 2L170-20 | √ | 17 | 3/4 | |||||||
| 2L200-25 | √ | 22 | 1 | |||||||
| 2L300-35 | √ | 30 | 1 1/4 | |||||||
| 2L300-40 | √ | 30 | 1 1/2 | |||||||
| 2L500-50 | √ | 50 | 2 | |||||||
1. How many years guarantee for 24 volt solenoid valve ?
Generally speaking 1 years with proper use.
2. What is your MOQ?
500pcs.
3. How about the delivery time?
Diffenertl order in 5 - 40 days.
4. Can we get sample to check quality?
of course, samples is ok to check the quality.
5. How many days for arranging samples?
3-7days.
