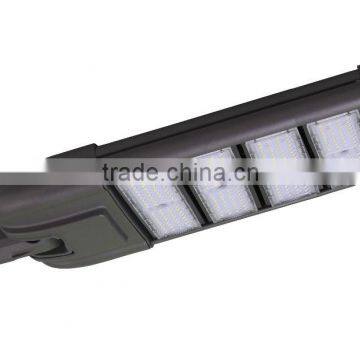

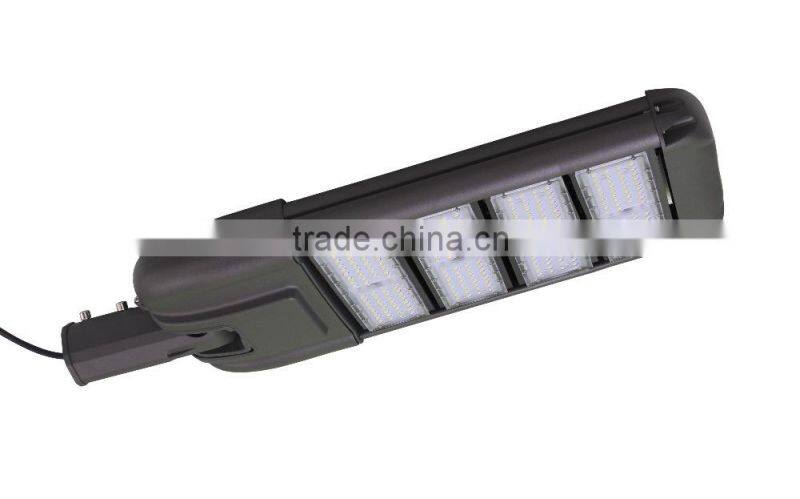

Type II Lens LED Pole Street Light 240w with UL CUL Approved
Product Specifications
| Power | 60w | 120w | 180w | 240w |
| Part No. | SNC-ST-60WFX | SNC-ST-120WFX | SNC-ST-180WFX | SNC-ST-240WFX |
| Module No. | 1 | 2 | 3 | 4 |
| LED QTY | LUMILEDS 70PCS | LUMILEDS 140PCS | LUMILEDS 210PCS | LUMILEDS 280PCS |
| Size | 495*365*100mm | 600*365*100mm | 705*365*100mm | 810*365*100mm |
| Lumen | 110-120lm/w | |||
| Size | 4000K, 4500K, 5000K, 5700K | |||
| Input Voltage | AC100-277V | |||
| Driver | Mean Well HLG Driver | |||
| Beam Angle | 150*75 Degree (Type II lens) | |||

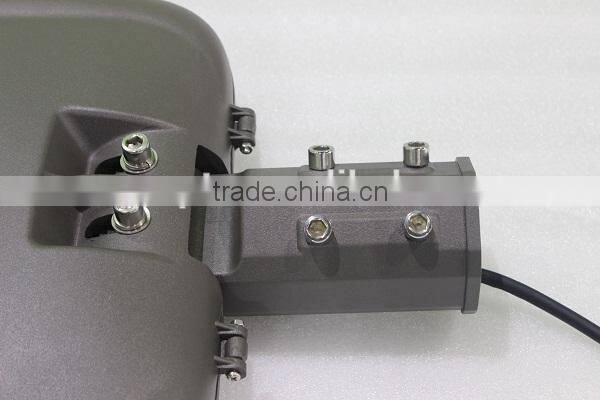

| Arm | Adjustable | |||
| IP Rating | IP65 | |||
| Warranty | 5 Years | |||

Product Advantage of led pole street light
| 1) Using high quality LUMILEDS chips |
| 2) Mean well HLG driver, quite easy for repairment/replacement |
| 3) Various options: AC100-277V |
| 4) Higher lumen compared to similar models of others |
| 5) Modular design, aluminum cooling technology |
| 7) Very competitive price |
| 8) Top quality with 5 years warranty |
| 9) LM79, LM80, IES testing reports available |
| 10) UL, cUL certificate |
| 11) 60w, 120w, 180w and 240w are available |

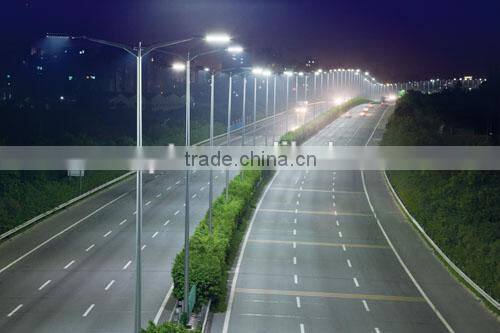

Application of led pole street light 240w
Outdoor Pole/Arm-Mounted Area and Roadway Luminaires
Package of led pole street light with ul
Lamps Net Weight: 11 KG/PCS
Size | Qty/Carton | Weight/Carton | |
Outer box | 830*380*160mm | 1 | 12.2kg |

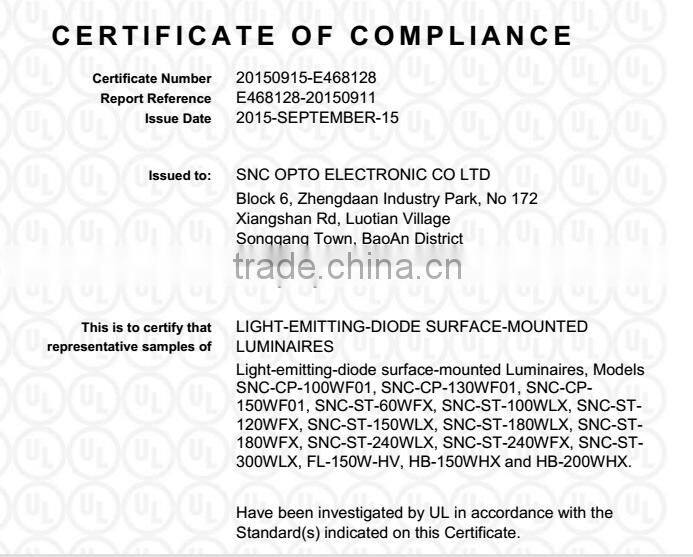

UL Certificate of led pole street light
Company profile
Lighting show
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample takes 5-7 days, mass production time needs 2-3 weeks for order quantity more than 500pcs.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and send the payment for formal order.
Fourthly we arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample if you don't need UL Label, otherwise you need to make UL multiple listing first. Then we can print your LOGO together with your UL.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.3%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will send you new parts to replace or we can discuss the solution including re-call according to real situation, and you don't need to send the bad one to us.
