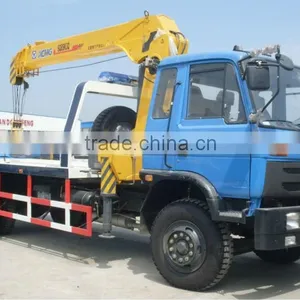

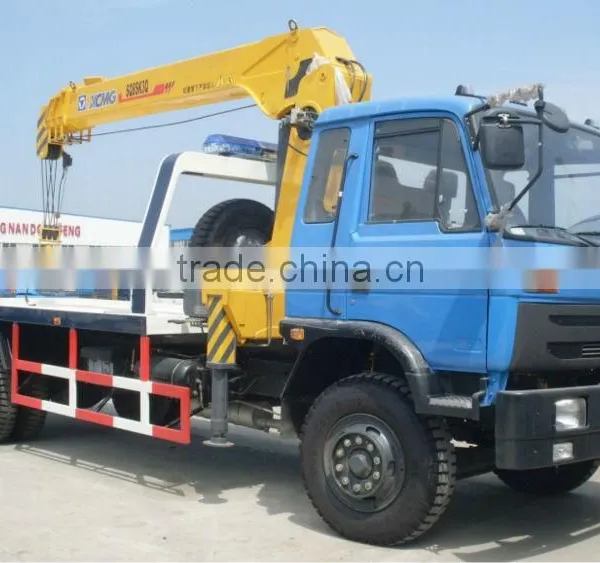

Dongfeng 4x2 Multi-function Wrecker Truck With Crane XCMG

Name: Dongfeng 4x2 Multi-function Wrecker Truck With Crane XCMG
Brand: Dongfeng
SKU: 101080625
Availability: InStock

US$ 15,000 - 30,000 MOQ: 1 Unit

Key Specifications

Fuel Type:

Diesel

Emission Standard:

Euro 2

Condition:

New

Hubei Runli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Fuel Type Diesel

Emission Standard Euro 2

Condition New

Transmission Type Manual

Dimensions (L x W x H) (mm) 7800*2500*2980

Place of Origin Hubei, China

Brand Name Dongfeng

Model Number EQ5161GFJ6

Specifications

1.Scientific design
2.Mature technology and stable performance
3.Dongfeng 4x2 multi-function wrecker truck with crane XCMG

Chassis	Chassis Model		EQ5161GFJ6
	Drive Mode		4X2
	Tire		10.00-20
	Brake		Air brake
Engine	Model		B170 33
	Horsepower (Hp)		170
	Displacement(ml)/Power(kw)		5900/125
	Emission		Euro 2
Main Parameter	Overall dimension (MM)	LWH	780025002980
		wheelbase	4700
		Axles No.	2
	Weight (KG)	Gross weight	15700
		Curb weight	11205
	Leaf spring No.		9/14+10
	Approaching/Departure Angle(°)		31/15
	Front/Rear Track(mm)		1940/1860
	Max speed(km/h)		85
	Gear Box		6 speed gear box
	Front/Rear Axle Load		3.6T/ 9T
Performance	Rated hoisting weight (kg)		4300
	Bracket arm extension route (mm)		700
	Bracket arm max effective length (mm)		1940
	Max lifting weight(kg)(optional)		5000×2
	Max. lifting height(mm)(optional)		3520
	Hoisting arm telescope length(mm)(optional)		2000
	Max. traction speed(km/h)		40
	Winch	Winch quantity(unit)	2
		Max traction weight(kg)	3000
		Rope length (m)	30
		Rope speed (m/min)	8
