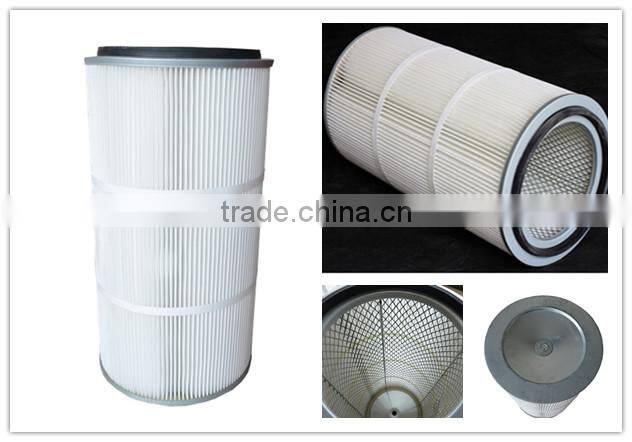

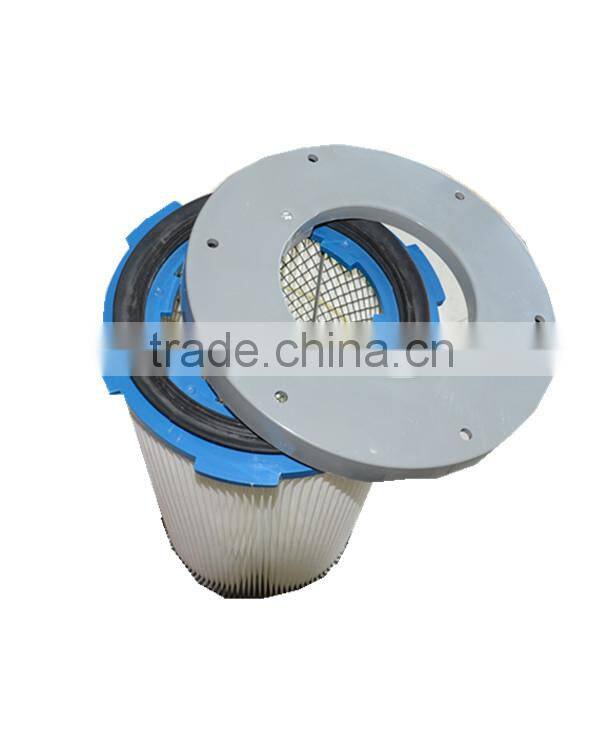

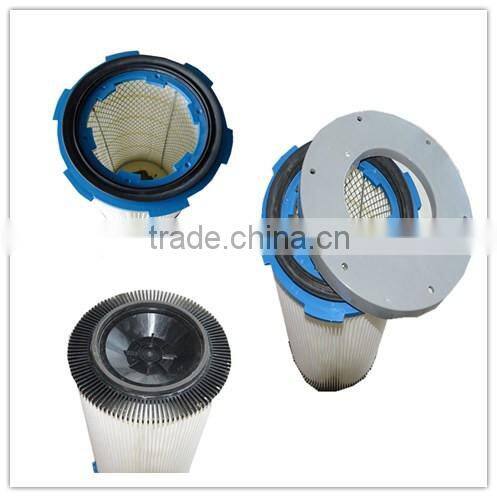

Powder Coating Line Dust Collecter Air Filter Cartridge

US$ 9 - 20 MOQ: 100 Pieces

Key Specifications

Condition:

New

Efficiency:

99.9%

Construction:

Cartridge Filter

Chongqing Haodong Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fob Guangzhou Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Efficiency 99.9%

Construction Cartridge Filter

Filtration Grade Hepa Filter

Medium Material Synthetic Fiber

Place of Origin Chongqing, China

Brand Name HD

Model Number FW3260

Dimension(L*W*H) 660 mm Height X 320mm OD, Customized, (OD)320*(ID)220*(L)600

Weight 1kg pp melt-blown filter, Based on size&material,thickness

Warranty 1 month

After-sales Service Provided No overseas service provided

Specifications

Powder Coating Line Dust Collecter Air Filter Cartridge
1.waterproof filter media
2.powder/dust removal
3.folded thickness

Product Name: Powder Coating Line Dust Collecter Air Filter Cartridge

Introduction of Air filer cartridge

The air filter cartridge is an important part for the smoke and dust filtration equipment as well as the painting equipment.

The main function is moving the dust particle from the air to protect the environment or reuse.

The new generation high-efficiency dust collecting filter is more advanced than the traditional paper filter when they are working.

It adopts long-using PP, PBT or polyester media, and the creative design insure the larger effective area and stable air flow.

Air filer cartridge Advantage:

Specifications of Air filter cartridge with polyester media

Filter cartridge material	anti-static polyester fiber, high density polyester, microporous laminated polyester
Lifespan	Up to 6 months
Precision	99.99% @ 0.5micron
Temperature resistance	-30 C ~ +80C
Filter area	18 – 21m2
Filter size	customized make different sizes as your requirements
Filter Model	OD(mm)	ID(mm)	Height(mm)
FW3260	Φ320	Φ220	600
FW3266	Φ320	Φ220	660
FW3290	Φ320	Φ220	900
FW3560	Φ350	Φ210	600
FW3566	Φ350	Φ240	660
FW2860	Φ280	Φ180	600
FW2470	Φ240	Φ120	700
FW2160	Φ210	Φ120	600
FW2060	Φ200	Φ120	600
FW1590	Φ150	Φ84	900
FW15100	Φ150	Φ84	1000

Picture	Name	laminated polyester fiber Filter Cartridges
	Model	FW3260
	Collapse pressure	6-8KG
	Air penetration	800 m³/h
	Powder collect rate	99.99%
	Filtration Precision	0.5μ
	Color	White
	Principle	The product is a smooth layer of thin microporous film coating on the filter, the space of the fiber microporous film is 1/100 of the base fiber , so almost all of the particles are set on the surface of the filtering medium, thus particles that penetrate the bottom is reduced to a minimum. Then Filter Cartridges has a long useful life.
	Advantages	1.High Air penetration.( 0.5μ ) 2. High Filtration Precision. It’s fit for high dust and blowing quickly occasion.(Polish,powdercoating, tobacco, Cement,ceramic) 3. Flame-retarded function. It could be used in smoke with spark occasion(welding,laser cutting)
