About us:
----Haodong Technology is the first and only manufacture in China who apply rare-earth catalytic combustion technology in infrared burner&heater. It can save 10%-20% energy than non-catalytic type.At the same time, it prolongs the use life of ceramic plate.
Now we mainly manufacture infrared heaters, bbq burners, industrial burners.

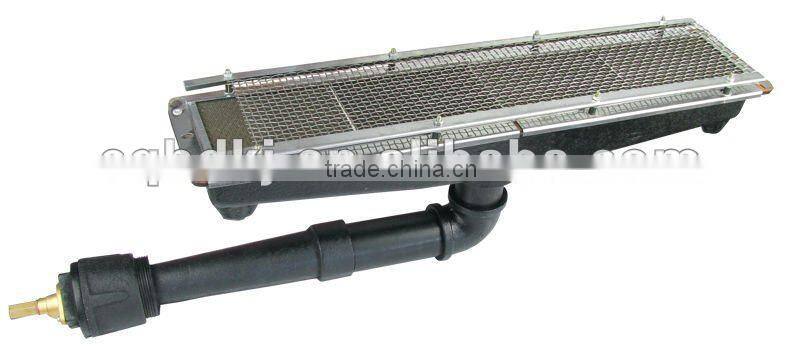

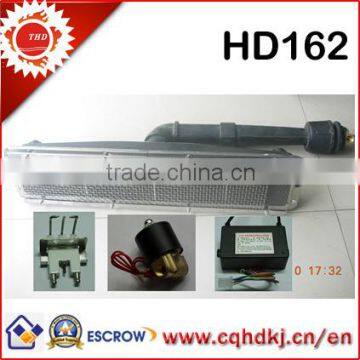

New-type cast iron Industrial Infrared gas burners HD162 :
Model |
Length (mm) |
Width (mm) |
Hight (mm) |
Weight (kg) |
Consumption |
Heat Output |
Gas Hole Dia- mm |
||||
NG |
LPG |
||||||||||
m3/h |
kg/h |
KW/h |
Kcal/h |
BTU/h |
NG |
LPG |
|||||
HD162 |
570 |
130 |
175 |
8.0 |
0.49 |
0.45 |
6.3 |
5400 |
21.428 |
1.7 |
1.0 |
Other models for choosing :
Energy consumption comparison of diffrent heating modes
Advantages:
1. Energy saving:conversion rate:≥95%
2. Environmental protection:CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. Full combustion:95% of energy released in the form of infrared ray ;heating the objects directly
4. Long useful time≥11000hr
5. Easily installed
6. Flameless & Smokeless
Applied Range :
Food Industry: Rice Biscuit, grilled chicken, oven for roast duck, smokeless oven, middle eastern oven, hot pot oven, roasting pachyrhizus oven, snack car, soup oven, cooking assembly line, infra-red gas baking pan, deep-fry assembly line, water-removing machine, baking, etc.
Painting Industry: Liquefied or powered painting assembly line, warm-up, preliminary treatment of heating, desiccating wood, galvanization drying assembly line, phosphatization drying assembly line
Fiber industry: Carpet latex dryer, dyeing dryer, printing dryer, textile dryer, industrial clothes dryer, latex gloves drying assembly line
Glass and ceramics industry: Enamel firing dryer, glass oven, heat-setting machine, mould drying, fritting, parching
Paper industry: All kinds of paper dry lines and auxiliary drying heat wall
Farming and animal husbandry: Heating of barton, heating of crops, grain dryer
Technical parameters
Items |
Technical parameters |
Types |
natural gas (NG),liquefied petroleum gas (LPG) |
Light-off temperature |
≥350 |
complete combustion temperature |
≤380 |
Heat source temperature |
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9m--15m |
|
Furnance pressure natural |
gas 150mmAq;liquefied petroleum gas 280mmAq
|

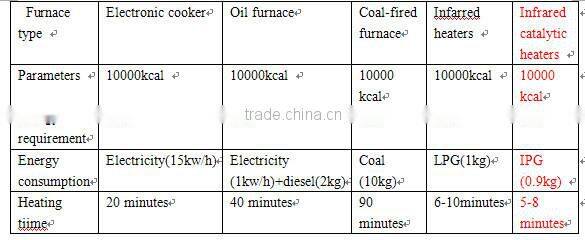

Comparison table for all kinds of energy consumption
|
Furnace type
Parameters |
Electronic cooker
|
Oil furnace |
Coal-fired furnace
|
Infrared catalytic heaters |
Energy requirement |
10,000Kcal |
10,000Kcal |
10,000Kcal |
10,000Kcal |
Temperature |
180 |
180 |
180 |
180 |
Energy consumption |
Electricity(15 kW/h) |
Electricity (1Kw/h)+ diesel (2Kg) |
Coal (10Kg) |
LPG(0.9Kg) |
Heating time |
20 minutes |
40 minutes |
90 minutes |
5-8 minutes |

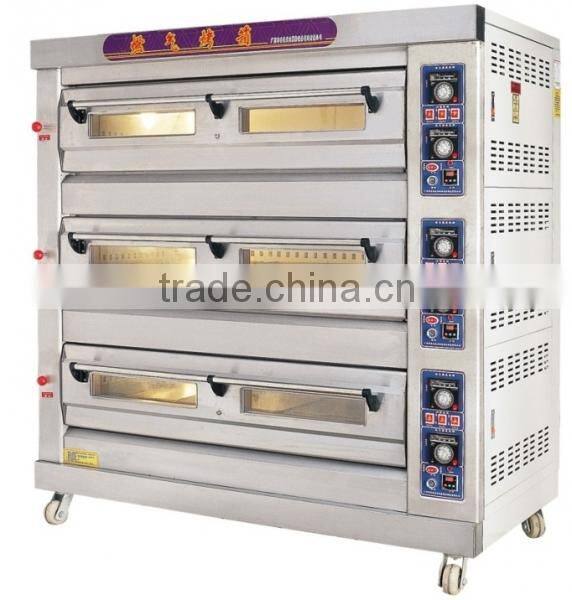

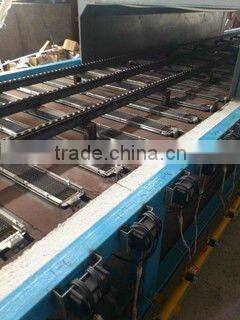

Used in industry:
Factory & Packing Photoes:
If any need, welcome to contact us freely!!
We'll do our best to serve for you!!
Your satisfaction is our passion!!!
Whatsup:+8613883514635
Trade manager:cn1500440252
