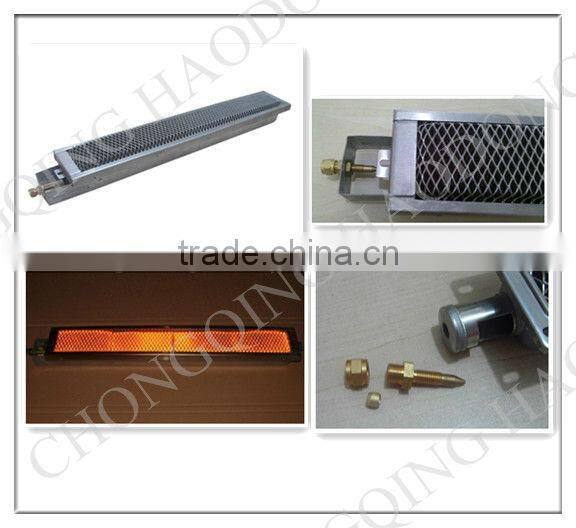

Product Name: Homemade shawarma burner gas grill burner parts for bbq HD538
And we have TUV Certificate, pls. click following link to check:
http://cqhdkj.en.china.cn/company_profile/capability_assessment.html
About our company
Chongqing Haodong Technology Factory produce gas bbq burner parts, gas burner, infrared burner, gas heater, poultry heater, gas brooder, pizza oven burner, industrial oven heater, fruit dryer etc.
Now we are the first and only company who apply rare-earth catalytic combustion technology on infrared burner & heater, this kind of technology could save 10~20% energy than non-catalytic infrared heater.

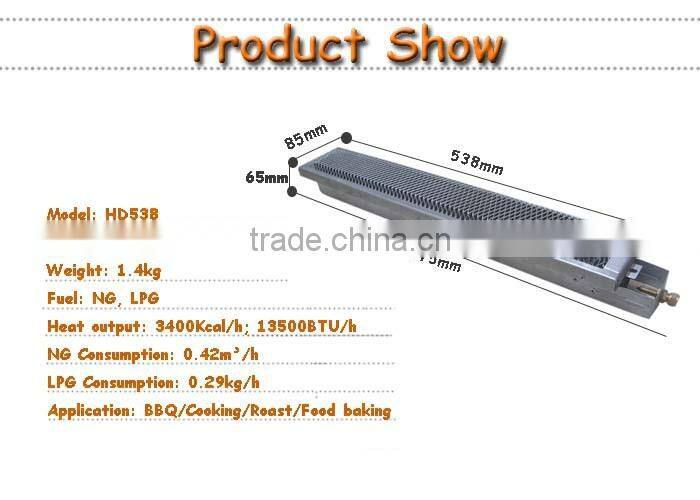

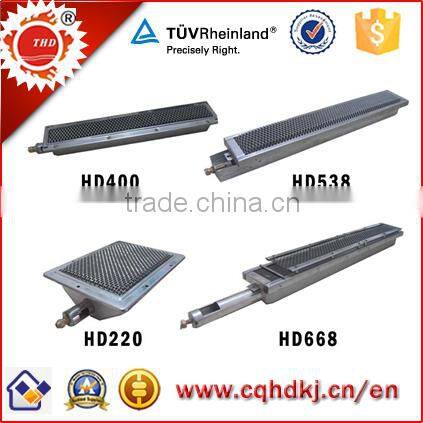

Specification and model of Homemade shawarma burner gas grill burner parts for bbq
MODEL |
Dimension |
Weight |
Gas Type |
Heat Output |
Power |
|
mm |
kg |
BTU/h |
Kcal/hr |
Kw |
||
HD220 |
220*170*60 |
0.9 |
NG/LPG |
10000 |
2520 | 2.94 |
HD400 |
400*80*60 |
0.7 |
NG/LPG |
9030 |
2300 |
2.72 |
HD538 |
538*85*65 |
1.4 |
NG/LPG |
13500 |
3400 |
3.9 |
HD668 |
668*85*65 |
1.7 |
NG/LPG |
166000 |
4180 |
4.8 |
Material of Homemade shawarma burner gas grill burner parts for bbq
1. Shell: aluminized steel sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
Nozzle of Homemade shawarma burner gas grill burner parts for bbq
Every burner have a nozzle with connector. It has a sealing ring inside, can be conneted to gas pipe directly.
Application of Homemade shawarma burner gas grill burner parts for bbq
This series is specially make for bbq industrial:
- BARBECUE Grill
- Chicken,Poultry,Pig,Lamp Roaster
- Shawarma, Donner Kebab, Gyros Machine
- Oven
- ......
Why do you choose Homemade shawarma burner gas grill burner parts for bbq???
1. Save above 20% energy than common gas heaters
2. Zero harmful emmision
3. Pre-mixed, naturally aspirted burner, no need of air blower, air fan or fire chamber
4. Installed in all direction of an oven
The use of technical parameters
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
Light-off temperature |
≤350 |
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
Baking temperature range |
30---500 |
Wavelength range |
1.9m--15m |
|
Furnance pressure natural |
gas 150mmAq;liquefied petroleum gas 280mmAq
|
Factory
1.which gas the heater use?
-----Natural gas or liquefied gas.
2.Can you accept 1 or 2 sample order?
-----Yes.
3.How many can you supply in one month?
-----About 50000pcs.
4.Which payment way can you accept?
------Paypal, T/T, Credit card, Westen union,Ali pay...
5. Is there any certificate?
Please contact me online, or just send email to me.
