Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | LIJIU | Model Number: | ND-WZDA-02 |
| Usage: | Electric Bicycle, Other, Electric Bicycle, Electric Scooter,etc | Certification: | CE | Type: | Other, gearless |
| Construction: | Permanent Magnet | Commutation: | Brushless | Protect Feature: | Waterproof |
| Speed(RPM): | 500R~800R | Continuous Current(A): | 5~6 | Output Power: | 250 |
| Voltage(V): | 24/36/48 | Efficiency: | Other |
Product Description

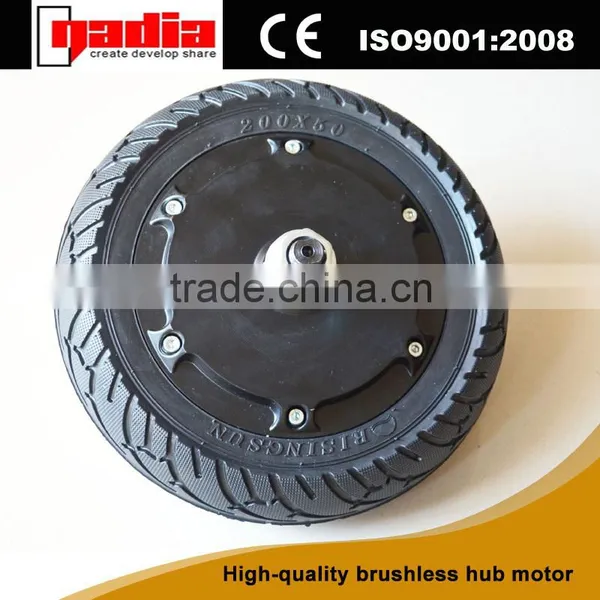

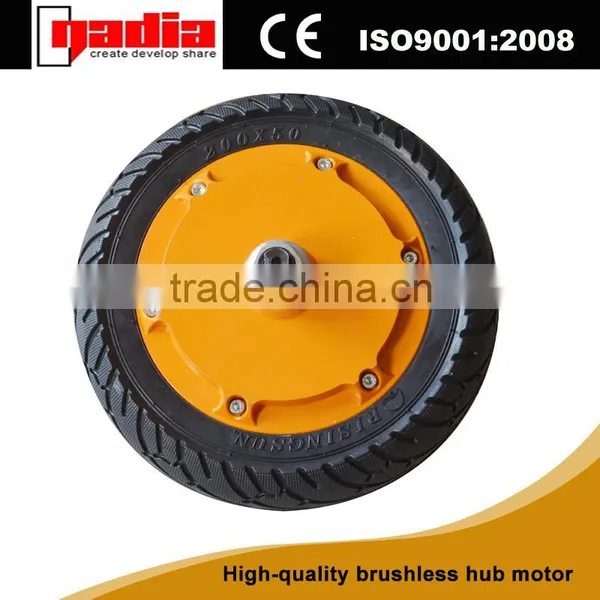

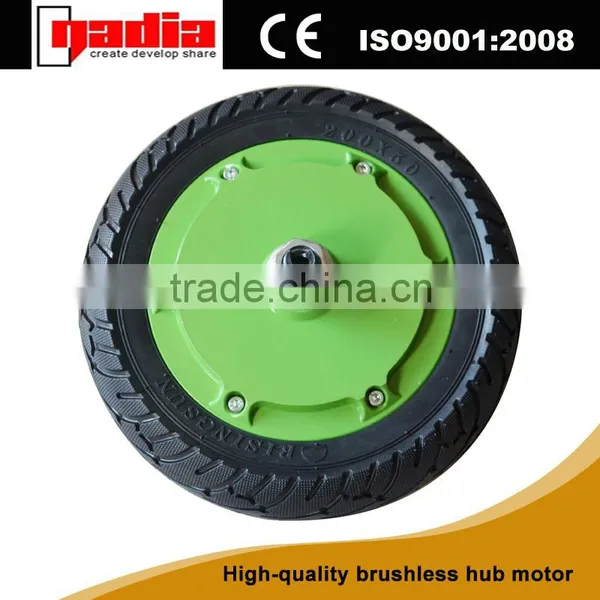

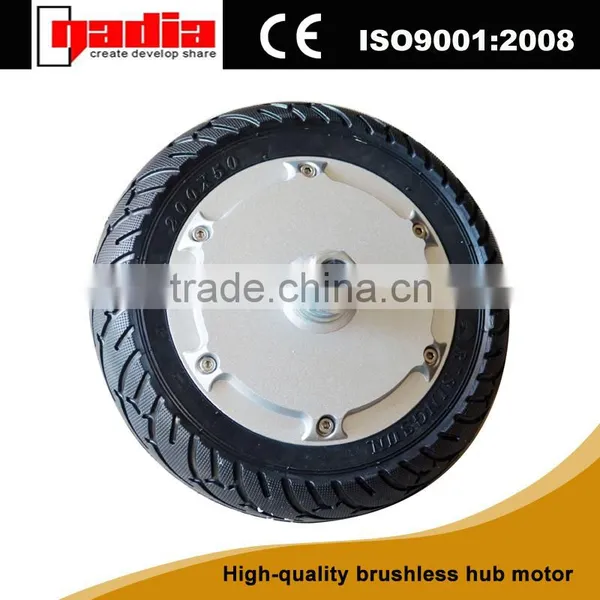

8 inch 24V180w brushless gearless electric scooter hub motor brushless motor CE certification
This is 8 inch 24V180w brushless gearless electric scooter hub motor brushless motor CE certification
Electric Motor Kit Set with tyre.
Max speed is 25KM/H . The tyre diameter is 200mm, Dropout size is 68mm.
Easy to operate by yourself.
If you want to DIY an electric scooter with this hub motor, we also can offer you : controller, brake lever, throttle and driven wheel.
Special DIY acceptable
Product advantage:
1,Easy to operate, steady working system and performance .
2,High quality materials make the motor keep working at high temperature.(around 40°)
Specifications
Model | ND-WZDA-02 |
Rated Voltage(V) | 24/36/48 |
Rated Power(W) | 250 |
Speed Range(rpm) | 500-800 |
Brake type | electronic brake |
Dropout Size(MM) | 68 |
Cable Length(MM) | 600 |
Efficiency(%) | >79 |
Noise(dB) | <54 |
Hall optional
Can be customized
Warranty
We provide the motor one year guarantee from the ship date.(Vandalism cannot be guaranteed)
