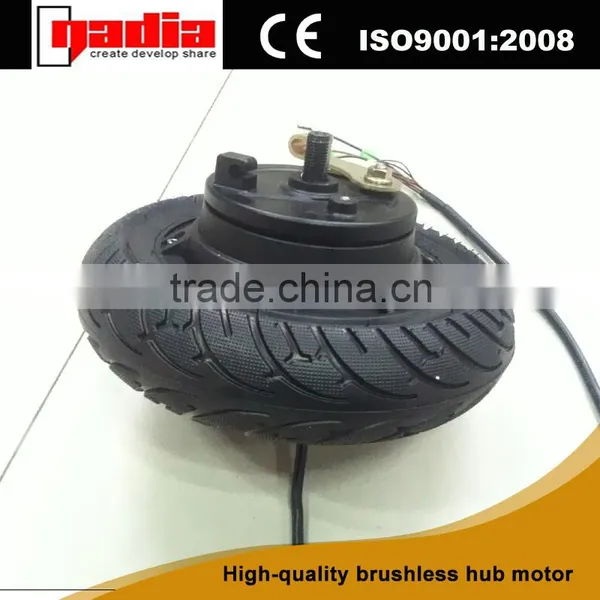

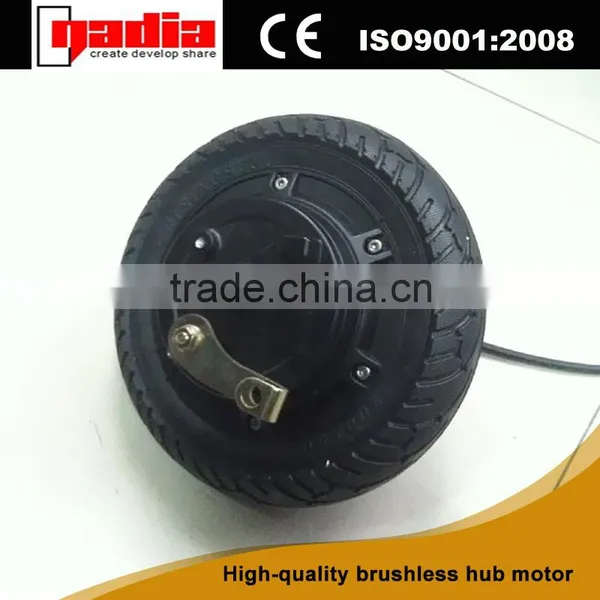

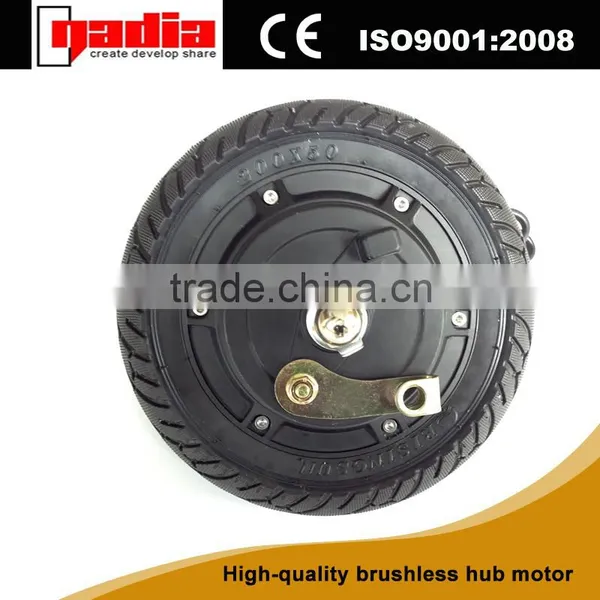

8 inch 24V350w gearless motor brushless gearless electric scooter hub motor brushless motor
This is 8 inch 24V350w gearless motor brushless gearless electric scooter hub motor brushless motor
Electric Motor Kit Set with braking device and tyre.
Max speed is 30KM/H . The tyre diameter is 200mm, Dropout size is 110mm.
Easy to operate by yourself.
If you want to DIY an electric scooter with this hub motor, we also can offer you : controller, brake lever, throttle and driven wheel.
Special DIY acceptable
Product advantage:
1,Easy to operate, steady working system and performance .
2,High quality materials make the motor keep working at high temperature.(around 40°)
3,With braking device realizes the more simple structure.
Specifications
Model |
ND-WZDA-06 |
Rated Voltage(V) |
24/36/48 |
Rated Power(W) |
250 |
Speed Range(rpm) |
500-800 |
Brake type |
Disk/expansion brake |
Dropout Size(MM) |
110 |
Cable Length(MM) |
600 |
Efficiency(%) |
>79 |
Noise(dB) |
<54 |
Hall optional
Can be customized
Warranty
We provide the motor one year guarantee from the ship date.(Vandalism cannot be guaranteed)
About Us
We focus on high performance, high quality, economic & applicable electric-motor products design and development for years.
We not only provide electric-motors but also motor kitting including controller.
Our products can apply to electric scooters, electric wheel chairs, unicycle, balancing car and mobile platform like Robot, as well as customized products.
Our well-equipped facilities and excllent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
We have experienced senior engineers in mechanical field,and have a named lab especially on new high-tech motor products applied into new fields,all of these help us to gain a good reputation in this field
Company Overview
We provide complete OEM design services from initial design consultation,technology, initial sample&manufacturing services.
ISO9001:2008
CE Certification
