Cheaper Price 7cbm Road Sweeper Truck Dongfeng Street Cleaning Machine Trucks For Sales Call Ms.Pinky 0086 15897603919:
The main performance description of Road Sweeper Trucks:
1.Cleaning device Type: Center four sweep and rear nozzle, scan disk can automatically avoid obstacles; sweep plate has three modes of operation: full sweep, sweep left front, right front sweep, to achieve road sweeping and vacuuming.
2.Nozzle: The roll-broom enhanced nozzle, built-in roll sweep, eliminate waste omission; rolling tire three o'clock floating support, road profiling powerful; (national initiative)
Pneumatic tube with a net antifreeze device, can effectively ensure sprinkler parts are not due to structural damage caused by freezing; (national patent technology)
With a leakproof drainage device, effectively prevent dirt build-up, to prevent fouling and clogging junk falls back to the ground straw causing secondary pollution; (national patent technology)
3.All fasteners are made of galvanized, scan disk, nozzles and other structural parts are made of acid phosphate electrostatic spraying, strong adhesion, coating corrosion resistance, weather resistance
4.Trash the whole entire layer of SUS304 stainless steel, structural strength, does not rust
Trash shape with side large surface modeling, arc transition, in proportion to the whole car, nice.
5.In the state of emergency, it can be manipulated by setting the manual pump trash, and sweep the nozzle plate movements and other movements, special circumstances can work directly into the engine compartment to detect vice and maintenance
6.Functional device with enhanced pressure dust, the dust can be adapted to the cleaning surface thicker.
7.With a variety of security alarm devices: water tank low water level, job tips, deputy engine temperature, oil pressure, parking tips, hydraulic oil leak alarm, trash tipping, reset, and the back door open and close security alarm devices.
Specification of 7cbm Road Sweeper Truck:
| Main specifications | |||
| Product model,name | SCS5090TSL3 Road Sweeper Truck | ||
| Gross weight(Kg) | 9400 | Drive type | 4 X 2 |
| Payload (Kg) | 3500 | Overall dimension (mm) | 6700×2290×2500 |
| Curb weight(Kg) | 5705 | cab seats (man) | 3 |
| Approach / departure angle(°) | 22/12. | Front/rear hang(mm) | 1180/1720 |
| Number of axles | 2 | Wheelbase(mm) | 3800 |
| Axle load | 3460/5940 | Max speed(Km/h) | 90 |
| Chassis specifications | |||
| Chassis model | EQ1090T9ADJ3AC | Manufacturer | DongFeng Motors Co., Ltd. |
| Brand name | DongFeng | Overall dimension(mm) | 6695×2285×2480 |
| Tire specification | 7.50R16 | Tires No. | 6 |
| Steel spring number | 11/9+7,8/10+7 | Front track(mm) | 1831 |
| Fuel type | Diesel | Rear track(mm) | 1640 |
| Emission standard | Euro III | Transmission | 5 forward gear,1 reverse gear |
| Cabin | Car interiors, with the direction of power and USB interface, cassette player, with air conditioning, | ||
| Engine model | Engine manufacture | Displacement(ml) | Power(Kw) |
| CY4102-E3C | DongFeng Chaoyang Diesel Co.,Ltd | 3856 | 91 |
| Road Sweeper Performance | |||
| Trash tank volume (m³) | 5 | Water tank volume (m³) | 2.5 |
| Material of trash tank | Stainless steel | Material of water tank | Stainless steel |
| Model of auxiliary engine | JX493G | Power of auxiliary engine(Kw) | 57KW |
| Manufacturers of auxiliary engine | JiangXi ISUZU Engine Co., Ltd. | Max sweeping width(mm) | 3200 |
| Sweeping speed (km / h) | 20/3. | Sweeping capacity(m2/h) | 9000- 60000 |
| Maximum Grain size and quality (mm) | 100mm±1.5kg | Cleaning Rate | 96% |
Road Sweeper Truck specs detail:
1. The control box is in the cab, all kinds of system electrical centralized to control, and easy to operate!

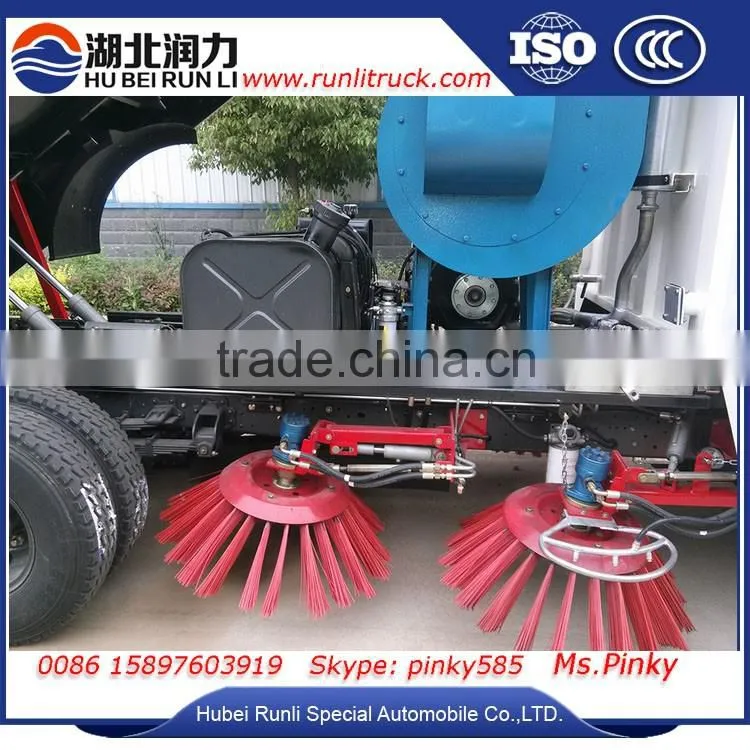

2, Four scan disk combinated with suction nozzle in working. according to a different cleaning conditions Scan disk speed can be controlled by choosing three gear-High, medium and low, which can make sure there be have a good cleaning results in a variety of pollution status. and when met the obstacle, the scan disk can be have a automatic avoidance protections and features automatic reset function, and retracted automatically, then resented automatically after over some obstacles!
3. Both of side of the scan disk can be working altogether or unilateral work independently.
4. The core components of hydraulic systems adopts the original import!

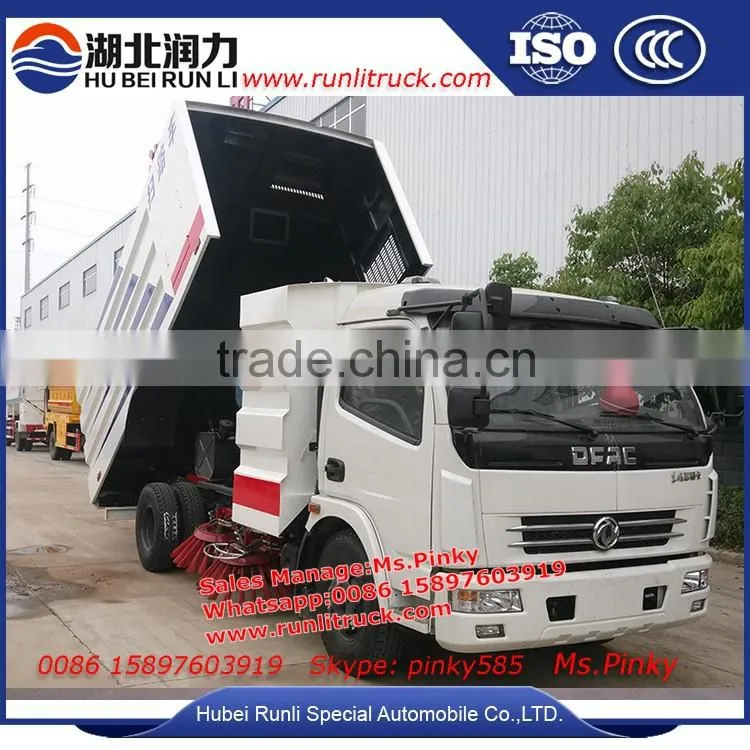

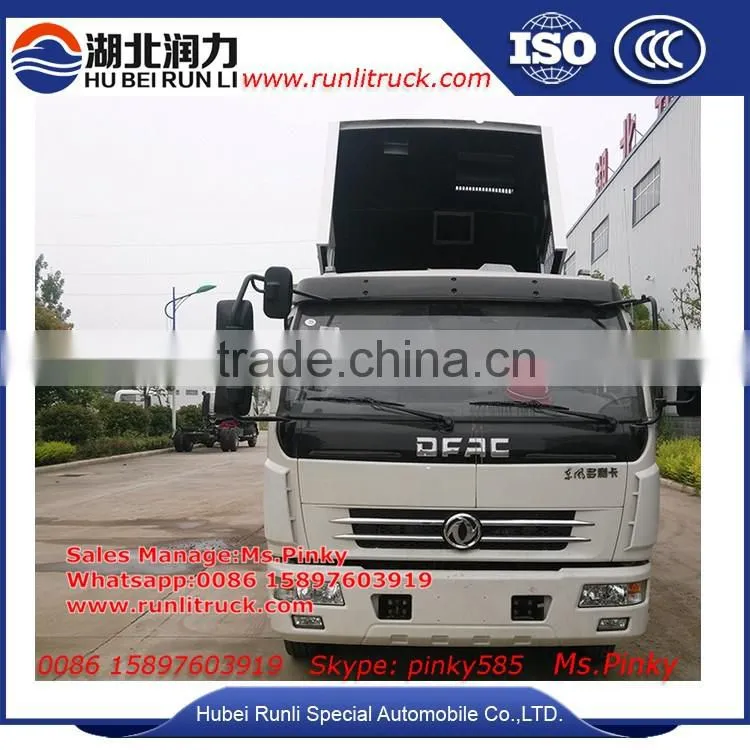

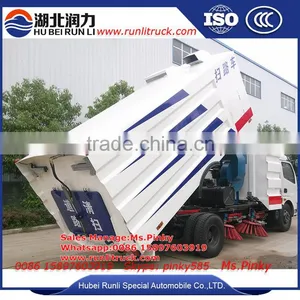

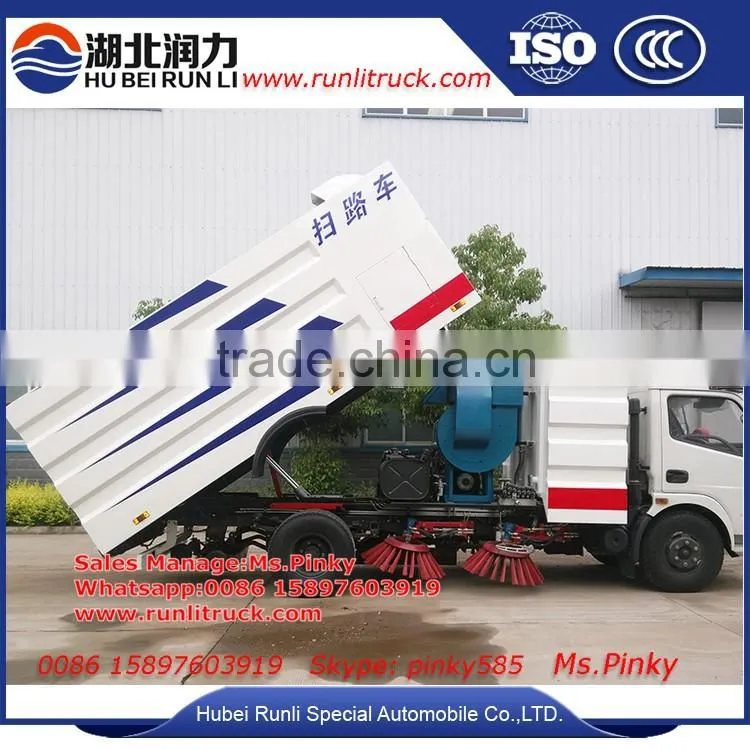

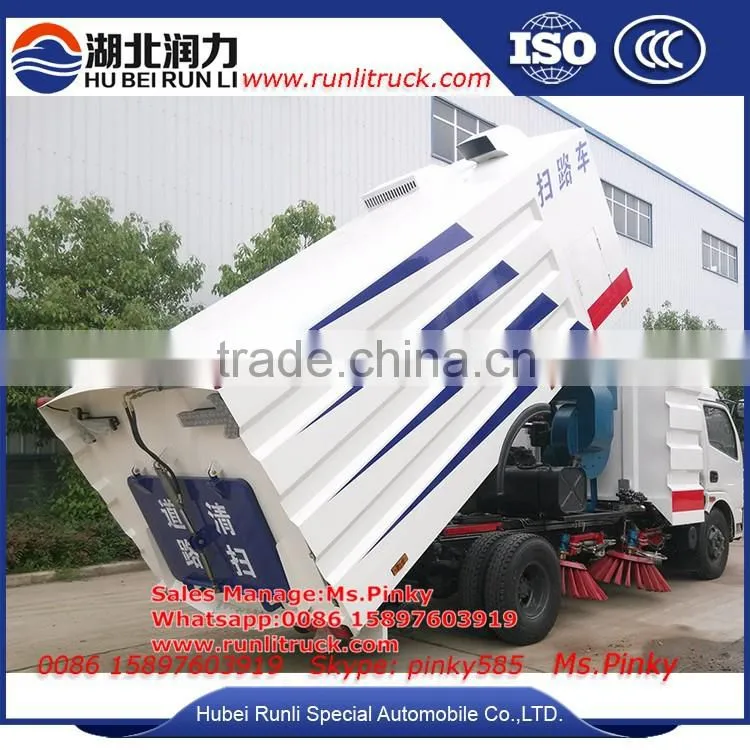

Deatailed Photos of 7CBM Road Sweeper Truck :
Equipment optional for Road Sweeper Truck:
Our Partener Client:
Our Producing Equipment and Advantage For Road Sweeper Truck:
Our factory has advance equipment special for tank body, the horizontal and vertical welding line is weld by automatic welding machine, welding line is nice and stronger, double welding. good quality.
Our Payment Term and Delivery Time:
1. TT or LC AT SIGHT 30% down payment, 70% balance paid before shipment,all by T/T or by 100% LC at sight.
Min order: 1 units
Delivery time: 15-20days after get the deposit or LC
Packing: nacked package, waxed before delivery by sea.
Documents: B/L, Commercial invoice, Packing list, Certificate of origin etc
Our Beank Information:
BENEFICIARY: HUBEI RUNLI SPECIAL AUTOMOBILE CO., LTD
Address: NO.77, century ave, suizhou city, hubei province
BANK OF BENEFICIARY: BANK OF CHINA, HUBEI BRANCH, SUIZHOU SUB BRANCH
ADDRESS OF BANK: NO.69 LIESHAN ROAD, SUIZHOU, HUBEI, CHINA
ACCOUNT NO.: 20310608092001
SWIFT NO.: BKCHCNBJ600
Our Company Main Production: offical Website:
The main products are
1. Water truck
2. Fuel tanker truck, Oil Truck, Tanker Truck
3.Fire engine truck
4.Truck mounted with crane
5.Dump truck,tipper,heavy duty truck
6.LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker
6. Bulk cement truck
7. Concrete mixer truck, mixer truck, cement mixer truck
8. Garbage truck, Self-loading garbage truck,garbage compactor truck,sealed garbage truck
9.Fecal suction truck,sewage suction truck
10. High altitude working truck
11. Chemical liquid truck
12. Van truck,insulated truck,refrigeration truck
13. Semi Trailer, Low plate semi-trailer,oil semi-trailer,van semi-trailer,bulk cement transportation semi-trailer,container semi-trailer,chemical liquid semitrailer,etc more than 300 types in total.
