Specifications
1. BPW axles2. Tri-angle tires
3. JOST outrigger
4. CCC,ISO9001 Certificate
5. Best price
Heat Treatment
(A) normalizing
(1) Objective: grain refinement, to improve processing of base metal and weld regular comprehensive
mechanical properties, to eliminate work hardening, easy cutting.
(2)Method: the normalization of the parts into the furnace to be heated to a certain temperature,
1.5 to 2.5 mm per min heat baked air cooling, air cooling or mist cooling.
(3) Application: 16MnR high temperature holding time is too long, large austenite grain
size (normalized) 35 # forging (normalized) head, cylinder (normalized)
(B) quenching:
(1)Objective: To improve the comprehensive mechanical properties of parts.
(2)Method: quenching and tempering (500 °C above). Get sorbite.
(3)Application: head, cylinder, flange, tube panels. 20MnMo 20MnMoNb 13MnNiMoNb 900 °C ~ 950 °C 2 min to 3.5 min / mm water + air cooling.
Bolt nut:
(1) 35CrMoA 25Cr2MoVA 35CrMoVA
(2) 30Mn 40Mn 35CrMoA
Hardness HB = 187 ~ 229 with sub-temperature quenching.
LPG transportation semi trailer 45-55CBM
Items |
LPG Parameters |
||
Name |
liquefied petroleum gas tanker semitrailer |
||
Medium |
propane |
||
Vehicle Size |
mm |
13000*2500*3995 |
|
Tanker size |
mm |
2496*11780 |
|
Effect volume |
m3 |
45-55 |
|
Curb weight |
kg |
10706 |
|
Design pressure |
Mpa |
1.77 |
|
Working pressure |
Mpa |
≤1.6 |
|
Working temperature |
°C |
≤50 |
|
Water pressure test |
Mpa |
2.22 |
|
Sealing test |
Mpa |
1.77 |
|
material |
Q345R,16MnIII(Tanker and the main pressure parts) |
||
Work standard |
LPG GB150 Steel pressure vessel, pressure vessel technology to monitor the safety regulations |
||
Choose parts |
LPG tanker truck Pressure relief valve, magnetic flap gauge, pressure gauge, thermometer, valve, etc. |
||
Motto |
Think customers want, do customers want, serious and pragmatic, sincere service |
||
Performance |
Our company has the functional characteristics of liquefied petroleum gas storage tank: operational quality, installation quality, safety devices and accessories within the strict quality evaluation. mechanical properties and chemical composition. each component through X-ray strictly non-destructive testing and magnetic particle testing inspection. operation of the technical indicators of the detection tests. magnetic particle testing,I-level qualified 6,A, B type weld 100% ray detection, II level qualified C, D Class weld 100% magnetic particle testing,I-level qualified |
||
More detailed pictures :

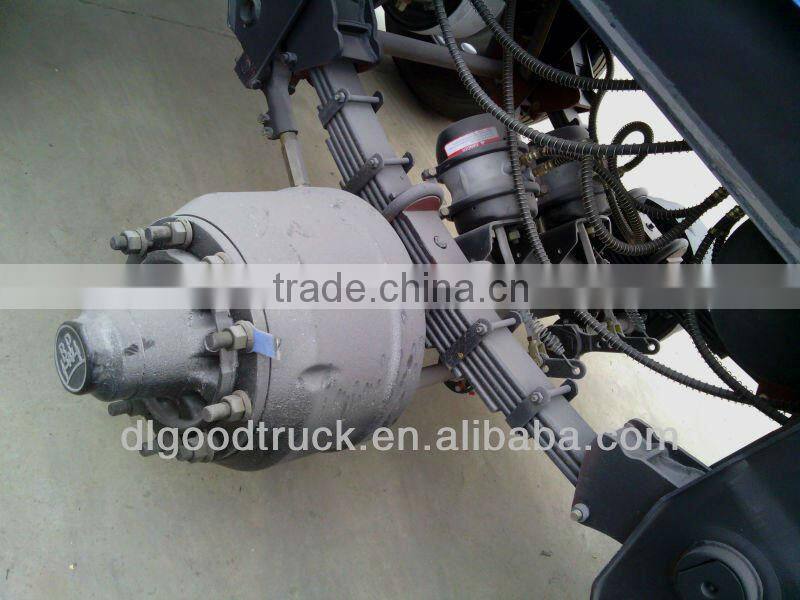

axles pictures showing

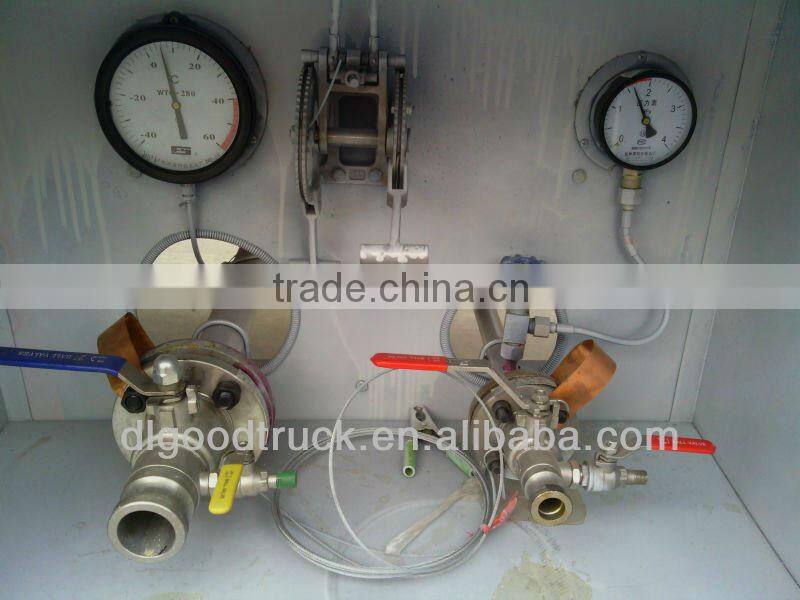

the pressure gauge showing

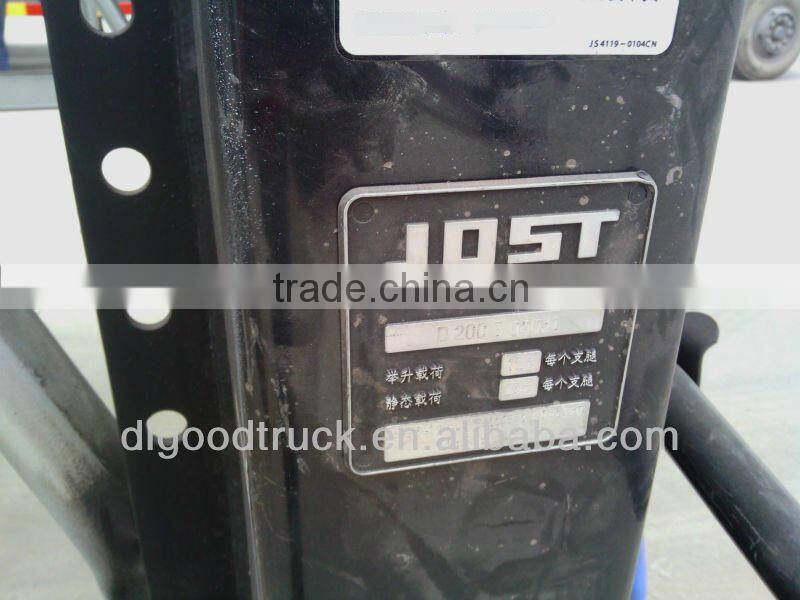

the Jost legs showing
If need more information ,please feel free to contact me.
Welcome to visit our company in China!
....
