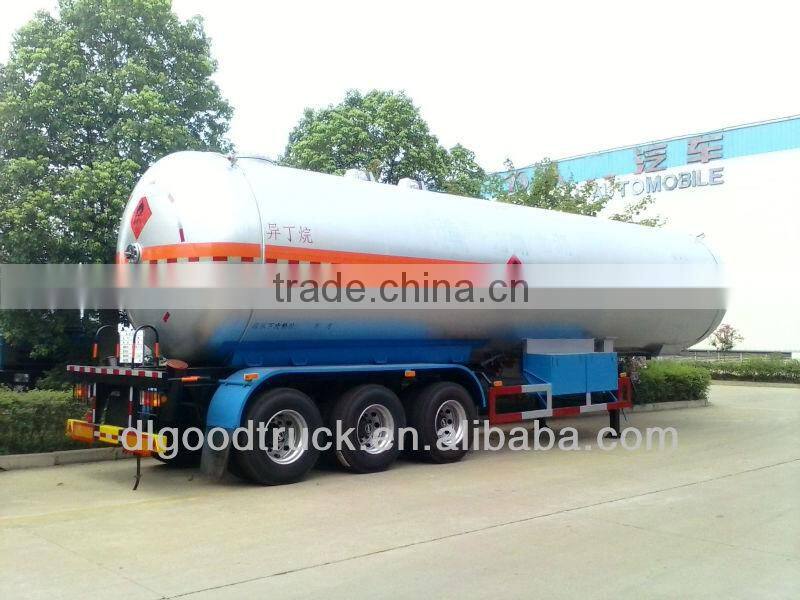

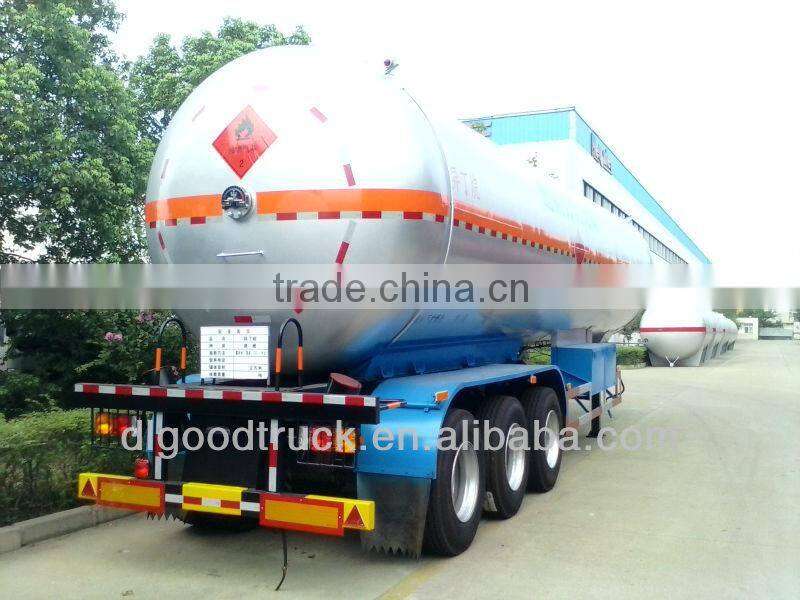

New LPG Tank Semitrailer for Sale

Main parameters

Gross Vehicle Weight(GVW)

36132 Kg

Payload

21350Kg

Tank capacity

49.6m3

Pressure of leak test

1.61 Mpa

Overall Dimensions

12740×2480×3800mm

Wheel base

6880+1310+1310mm

Full load

Fifth wheel load

14260Kg

Rear axle load

21880Kg

Design the limited velocity

Straight road

80 Km/h

Turning

20 Km/h

U.V.

Type

QGJ43F-2.5 Or FISHER internal valve

C427-16-25,C427-24-50

Nominal pressure

PN2.5Mpa

Nominal diameter

Gas phase

DN 25mm

Liquid phase

DN 50mm

Operation way

Manual

Closing time

10s

Melting switch temperature

70±5°C

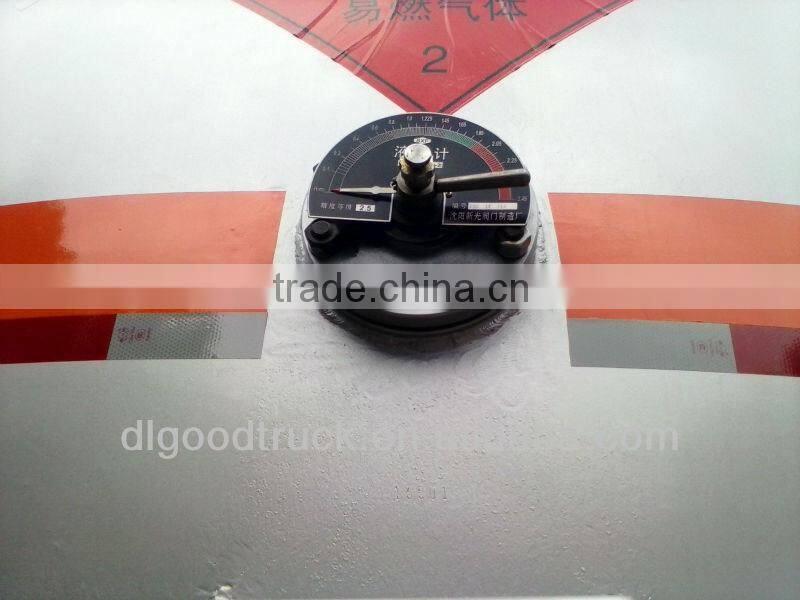

I.L.

Type

YWJ-2.5A,RN1200

Model

Rotary type

Nominal pressure

PN2.5Mpa

Surveying range

0~2400mm

Precision

2.5 Grade

Design temperature

≤50 °C

Filling medium

LPG (Propane)

Tank material

Q345R

Corrosion allowance

1.0mm

Heat treatment method

PWHT

Semitrailer curb weight

15300Kg

Hydraulic test Pressure

2.74 Mpa

Internal Dimensions Internal

(length×diameter)

12372×2300mm

Vessel's sort

The third kind

Service Years

Ten years

S.V.

Type

A412F-2.5 Or FISHER Relief valve,H732-275

Model

Inner full lift

Nominal pressure

PN2.5 MPa

Nominal diameter

DN80mm

Opening pressure

1.92~2.01 MPa

Closing pressure

>1.54 MPa

Complete opening pressure

<2.19 MPa

L.U.S.

Valve type

Q41F-2.5P/CQA41F-25P

Model

Quick tie-in

Nominal Diameter

Gas phase

DN25mm

Liquid phase

DN50mm

Tire

12.00-20

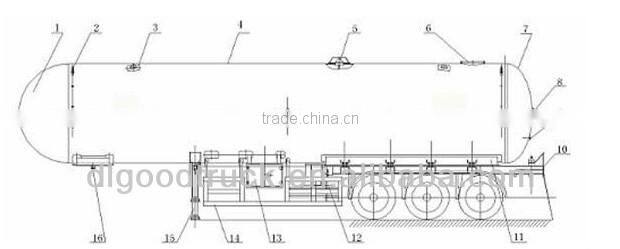

NO.

 NAME

1

  Little head

2

piazza light

3

Flying rings

4

  Body

5

  Safety valve

6

Manhole

7

  Big head

8

  Indicator of liquid level

9

Nameplate

10

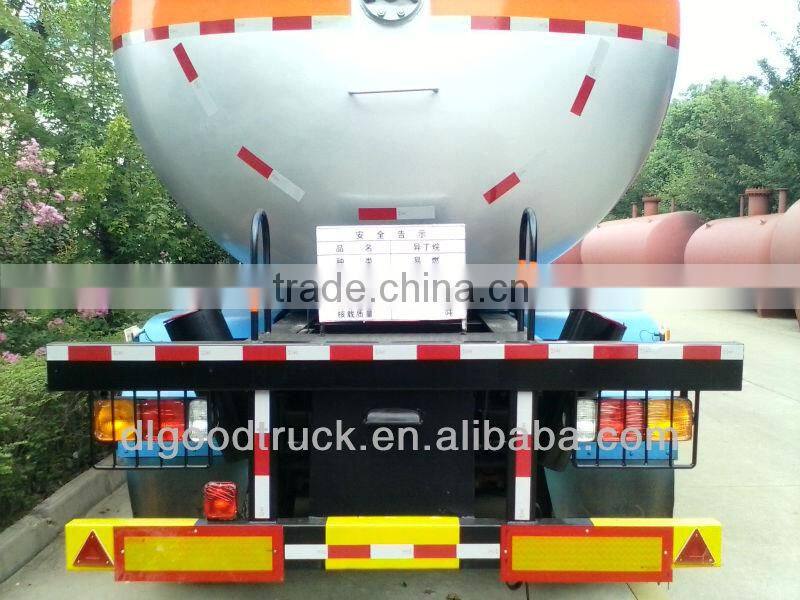

  Rear bumper

11

  Seat

12

  Plate for protecting tyre

13

  Valve box and operation system

14

  Side protecting rail

15

  Seat of support leg

16

  Seat of king pin
