Specifications
Wall Mounted Touch Controller1.Fool type operation,easy to use
2.Pioneered T-PWM dimming technology+4096 gray scale
3.New pr
TOUCH DIMMER
D series touch panel controller absorts the best controlling technology from other manufacturers to provide users with more superior items.
1.Simple fashion and decent appearance design.

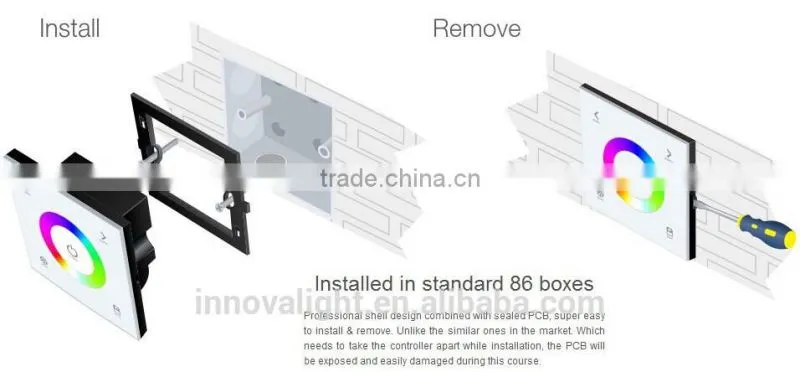

2.Unique structure,super easy to install/remove.
3.Support DMX 512 output(only D5,D6,D7,D8),control DMX lamps.
4.Support 4 zones(just D5,D6,D7,D8),different zones can be in different control.
5.High accuracy touching IC+special post-processing,the touching accuracy is highly strengthened.
6.Fool type operation,easy to use.
7.Touching along with chord music&LED indicator.Visual&Auditory&Touch 3 layers to fell the light-changing synchronously.
8.Pioneered T-PWM dimming technology+4096 gray scale makes an almost perfect dimming/color-mixing performance.
Single zone series
| Model NO. | INN-D1 | INN-D2 | INN-D3 | INN-D4 |
| Input Voltage | DC12V~DC24V | DC12V~DC24V | DC12V~DC24V | DC12V~DC24V |
| Max current load | 4A x3CH Max 12A | 4A x2CH Max 8A | 4A x3CH Max 12A | 4A x4CH Max 16A |
| Max output power | 144W/288W(12V/24V) | 96W/192W(12V/24V) | 144W/288W(12V/24V) | 192W/384W(12V/24V) |
| Gray scale level | 4096 | 4096×4096 | 4096×4096×4096 | 4096×4096×4096×4096 |
| Working temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Dimensions | L86×W86×H36mm | L86×W86×H36mm | L86×W86×H36mm | L86×W86×H36mm |
| Package Size | L112×W112×H48mm | L112×W112×H48mm | L112×W112×H48mm | L112×W112×H48mm |
| Weight (N.W.) | 210g | 210g | 210g | 210g |
D series touch panel controllers(D1-D8) are wall-mounted LED controlelrs, wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. Among them, D5, D6, D7 and D8 are DMX512 control panels,used for DMX512 lamps. In a word ,D series could satisfy the controlling demand for all kinds of LED lighting products.
After-sales Services:
1.3 years warranty
2.Complain-Rely will be in 24 hours
3.Any help needed in China please call us(24 hours)
