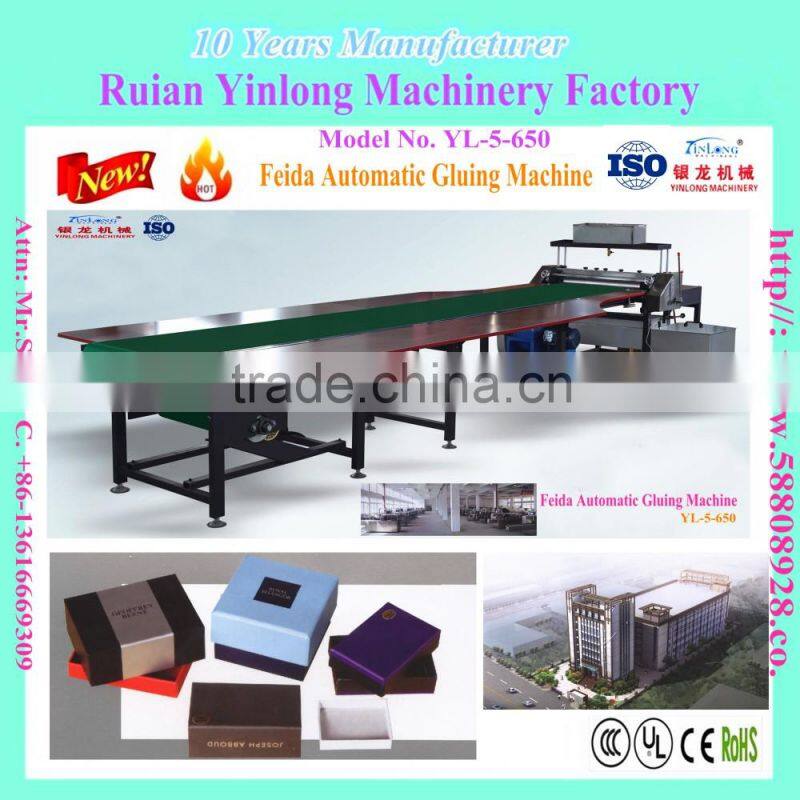

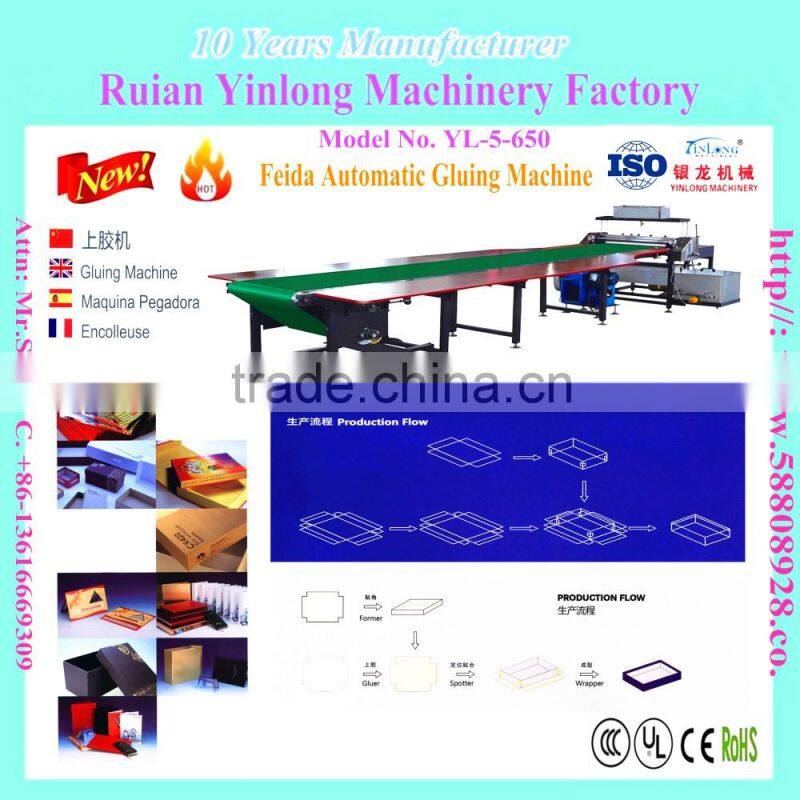

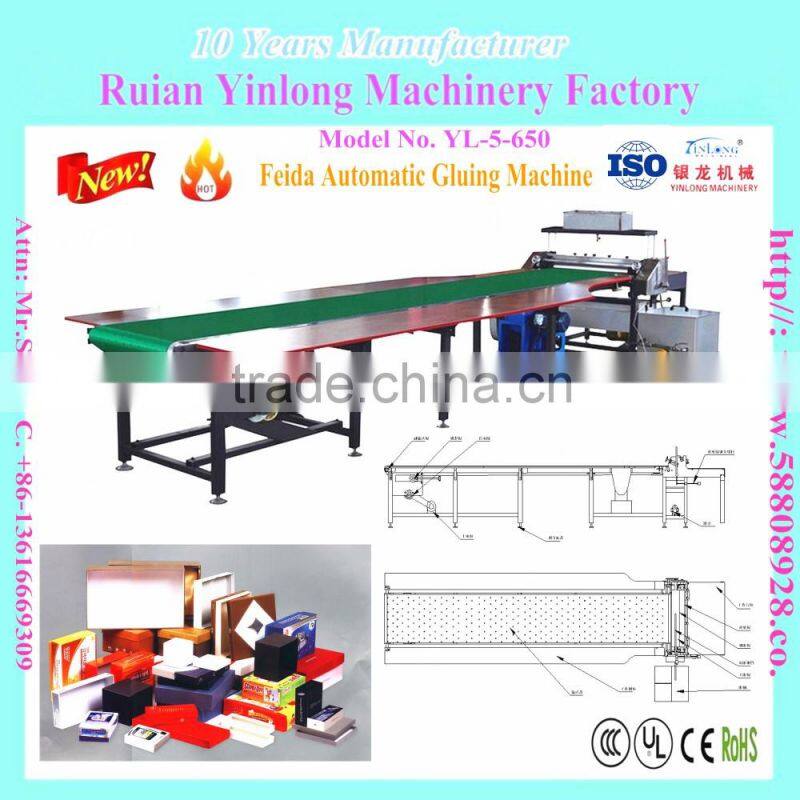

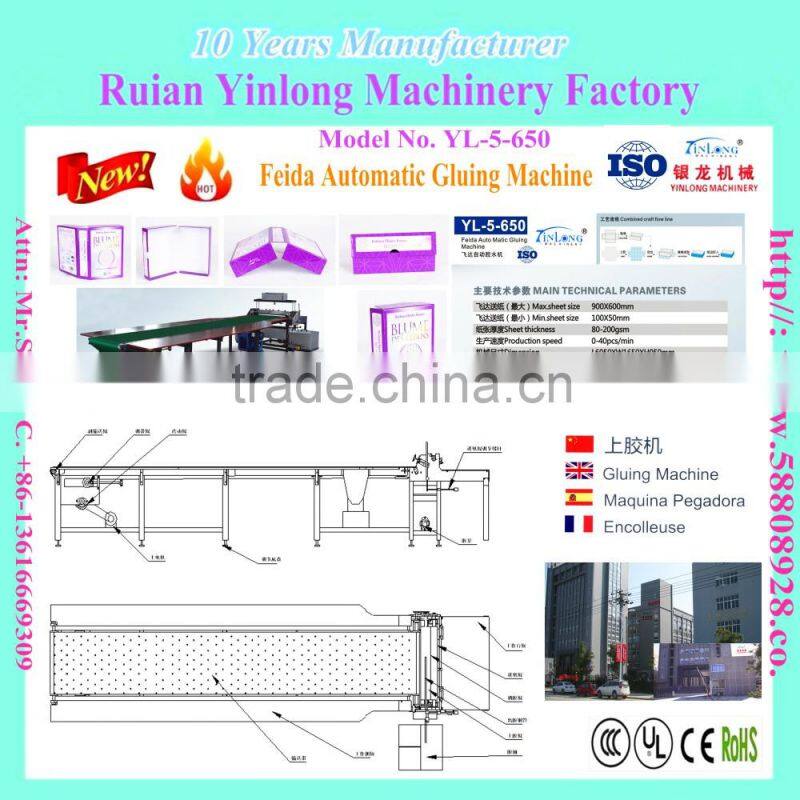

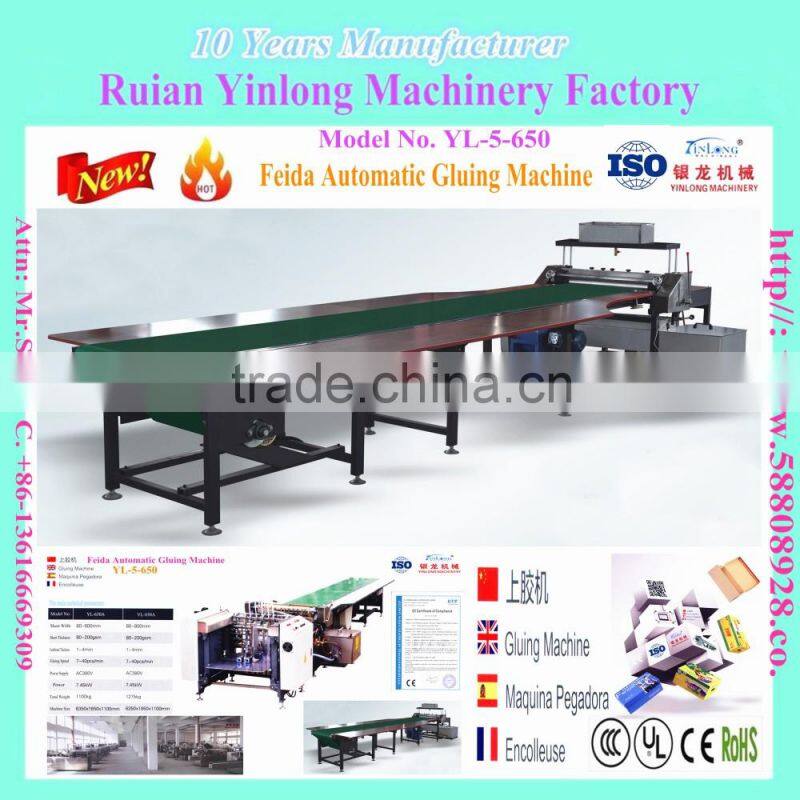

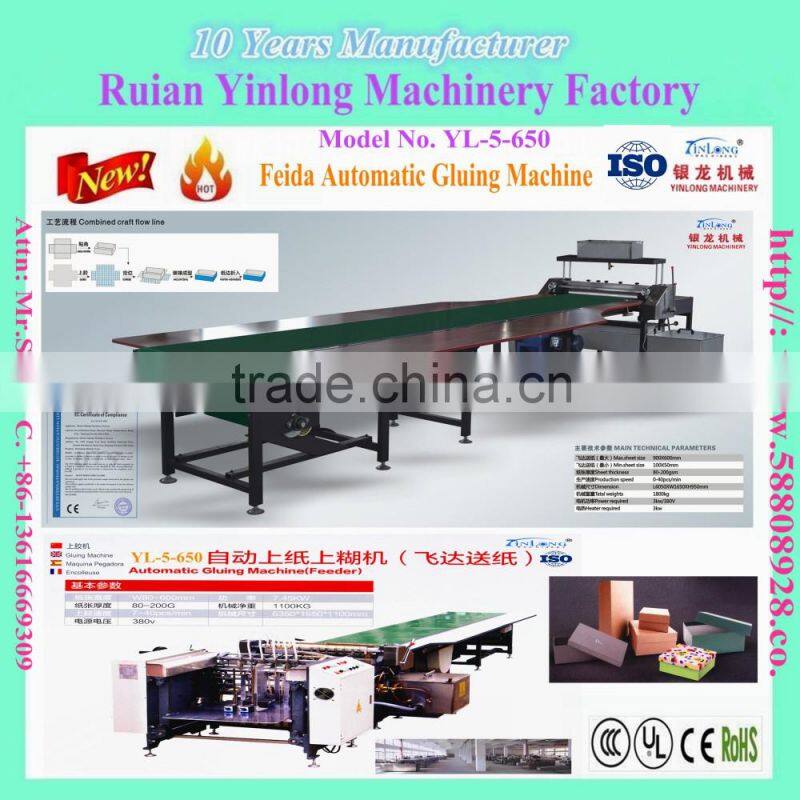

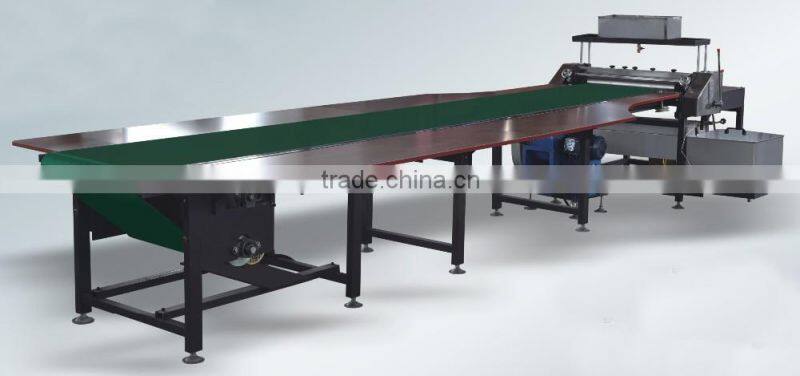

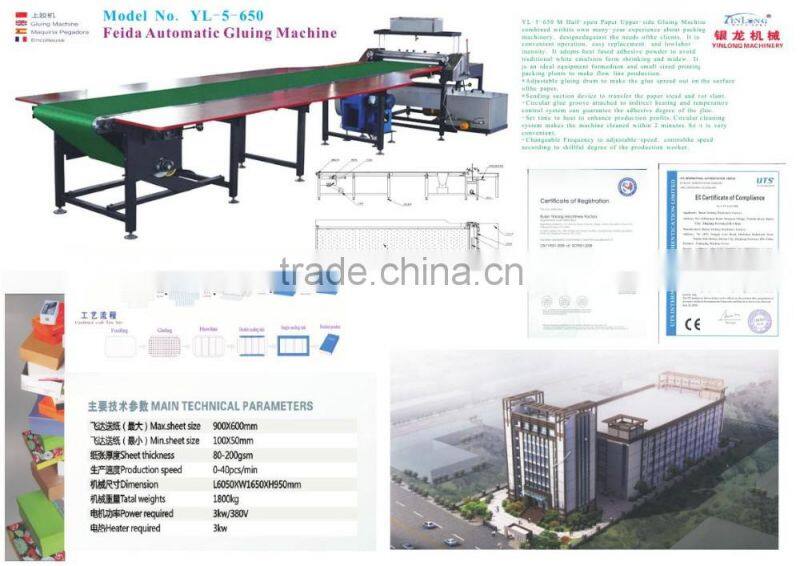

Feida Automatic Gluing Machine
Model No.YL-5-650
Working principle:
Roller immersion in the glue plate, when roller rotation, paper (or other material with smooth surface)
feeding and coating at the same time, the glue evenly over the surface.The feeding speed could adjustment.
Usage:
It is mainly used for the gluing of different thickness of paper, paperboard, Special paper,Paper box,
carton box, Corrugated box, note book making, paperboard puzzle. The gluing machine is the special
equipment or paper products to do gluing, which is widely used in printing and packaging, paper box,
carton, book cover making and Fabric sample volume producing industry.
Machine Informations:
1. Manual sheet-feed front edge suction for various sheet sizes.
2. Adjustable rollers apply smooth glue coating on the sheet surface.
3. The circulating glue system with temperature controller assures the adequate glue consistency.
4. Conveyor equipped with air-suction system to forward sheet flat and stably.
5. With ball bearing design of feed table, the sheets are conveyed straight-through by pressure system.
Main Technical Parameters | |
Max. Sheet Size |
900x600mm |
Min. Sheet Size |
100x50mm |
Sheet Thickness |
80-200gsm |
Production Speed |
0-40PCS/Min |
Dimension |
L:6050xW:1650xH:950mm |
Total Weight |
1800KGs |
Power Required |
3kw/380VAC |
Heater Required |
3KW |
Ruian Yinlong Machinery Factory located in South Development Zone, Ruian City which is an enterprise specialized in the production of foodstuff machinery and packing machinery equipments.
Its production premise currently covers an area of over 5000sqm.With more than 100 techinical staff in possession, it boasts abundant technical strength and strong concept in technological innovation,in line with the tenet ever since its establishment of Quality first and customers supreme, automatic case maker, Earth cover box gluing machine, High speed automatic folding machine, Double edging machine have been highly appraised by users for their dependable quality.
YinLong will as always holding hund redfold confidence and high responsibility, offer its novelly designed elaborately made and favorably priced products as well as consummate after-sale service to our bothnew and regular customers, striving for a brilliant tomorrowside by side.
