Wood chips crusher machine

Specifications

Wood Chipping Machine
1. High process speed
2. High durability
3. Best performance



             Wood chips crusher machine















Brief Introduction of Wood Chipping Machine:

1. Wood chipping machine is specially used to crush wood logs, bamboo, Wood staff and other wood materials.
It can be processed into wood chips once time. The wood chips size also can adjusted accordingly.



2. Wood chipping machine can cut log and small-diameter log with less than 200mm diameter and is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc.



Structure of Wood Chipping Machine:

Wood chipping machine is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.



Features of Wood Chipping Machine:

1. Lower investment and high economic returns;

2. High efficiency and lower enery consumption;

3. Convenience to use and maintain.



Main Technical Parameter of Wood Chipping Machine:



Type	Capacity (kg/h)	motor	Weight (kg)	Main rotor speed(r/mm)	dia Blade Pieces	Cutter diameter(mm)	Blade length(mm)	Outlet diameter(mm)
BX400	200-300	11.5	400	2200	4	400	150	150*150
BX600	300-500	15-18.5	800	2200	4	600	200	180*160
BX800	900-1000	22-30	1400	1500	4	800	250	200*220
BX1000	1500-2000	37	2000	1500	4	1000	340	300*350

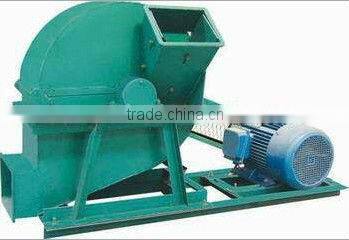

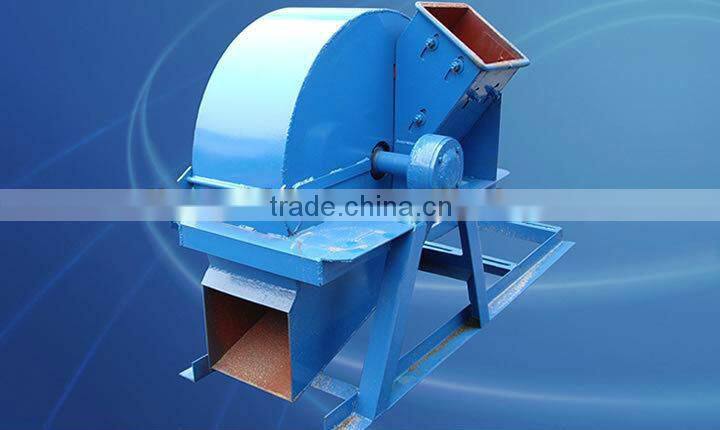

 Picture:
