Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Yinglong Brand Cabinet Type Djustable-Speed Surface Sizing Machine,YL Gluing Machine,YL Double-side Gluing Machine

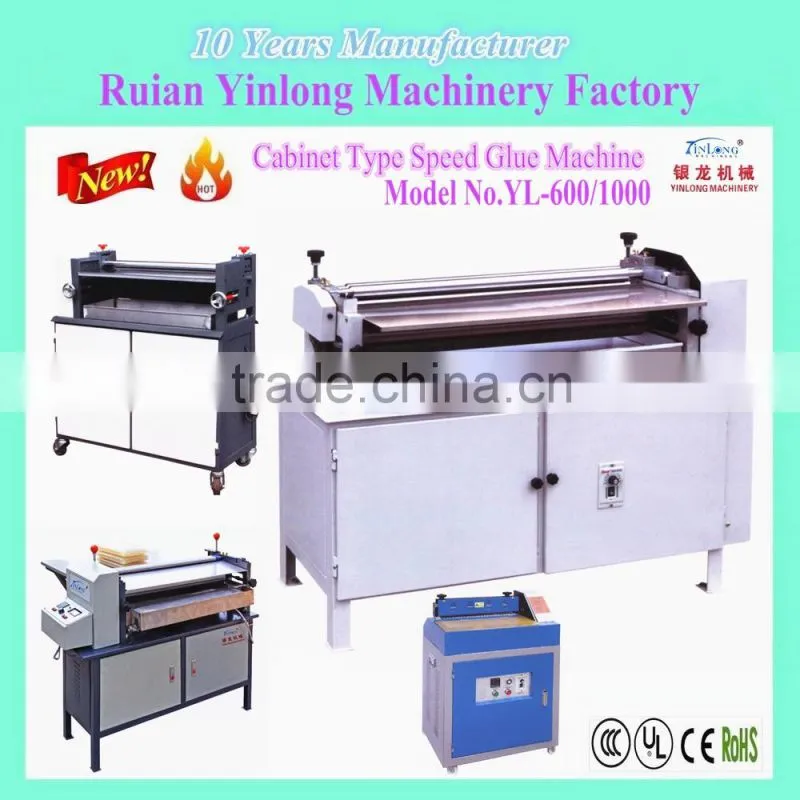

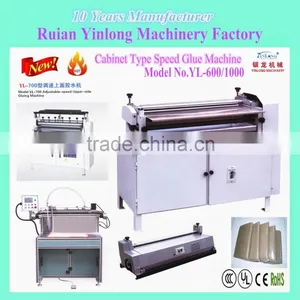

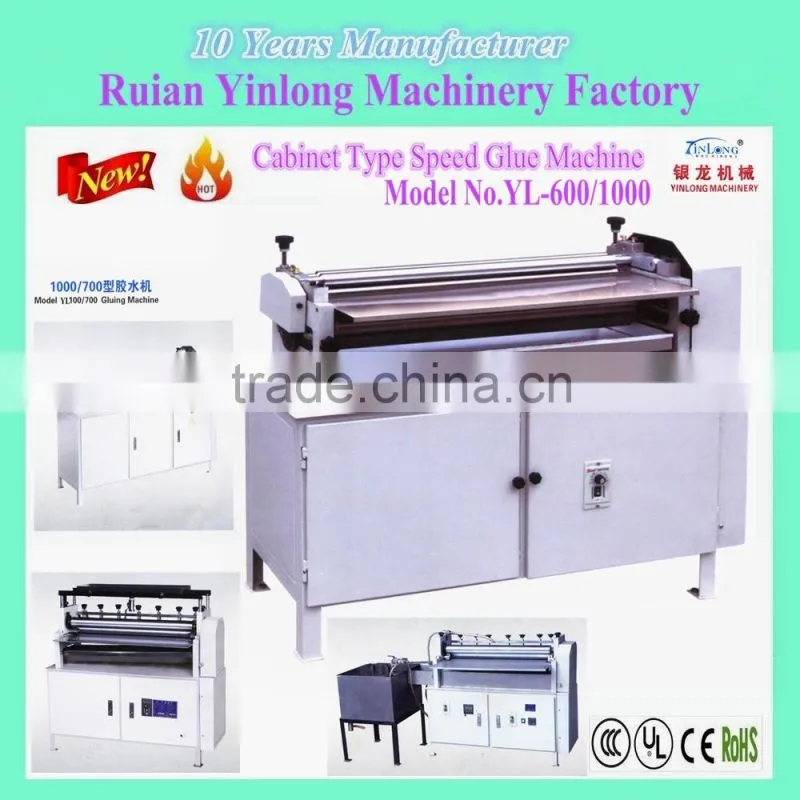

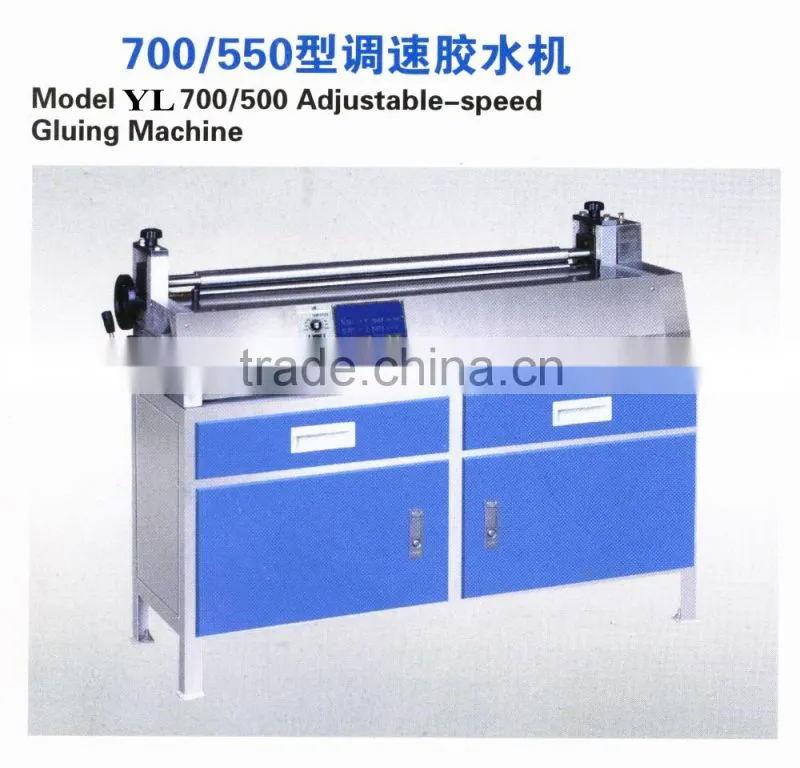

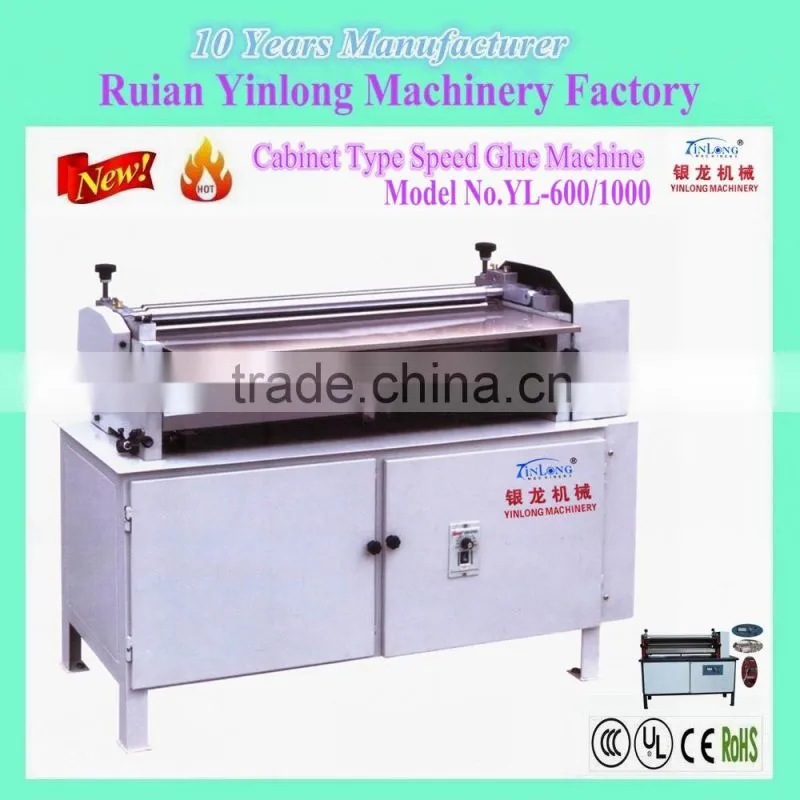

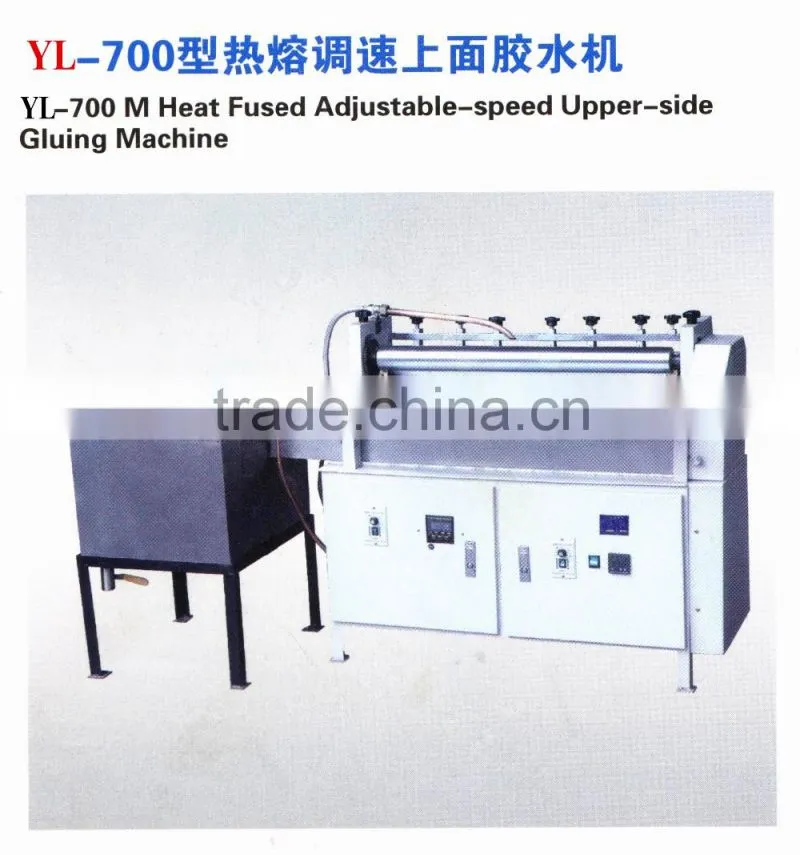

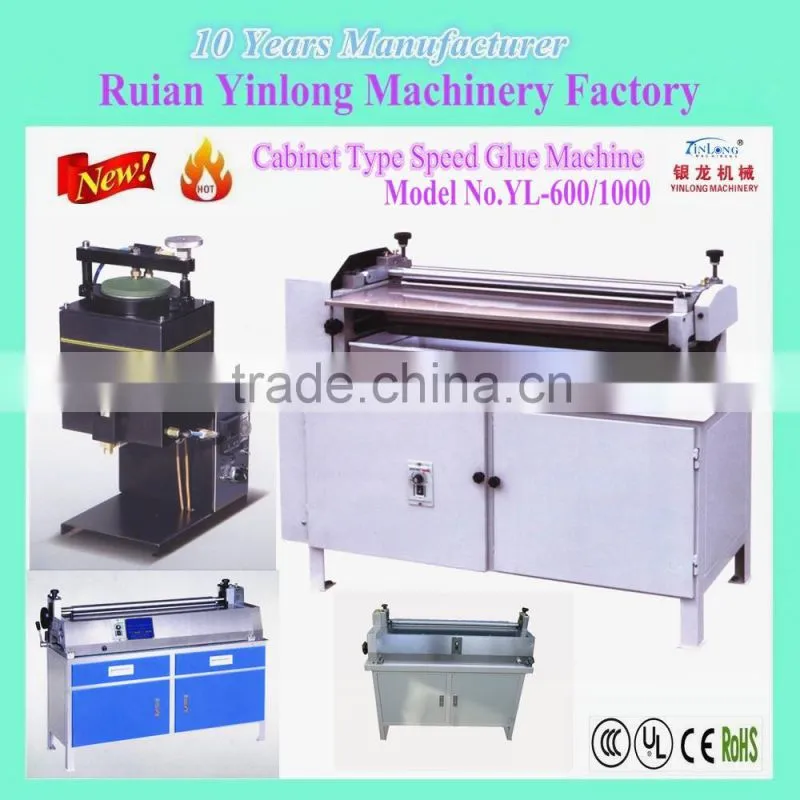

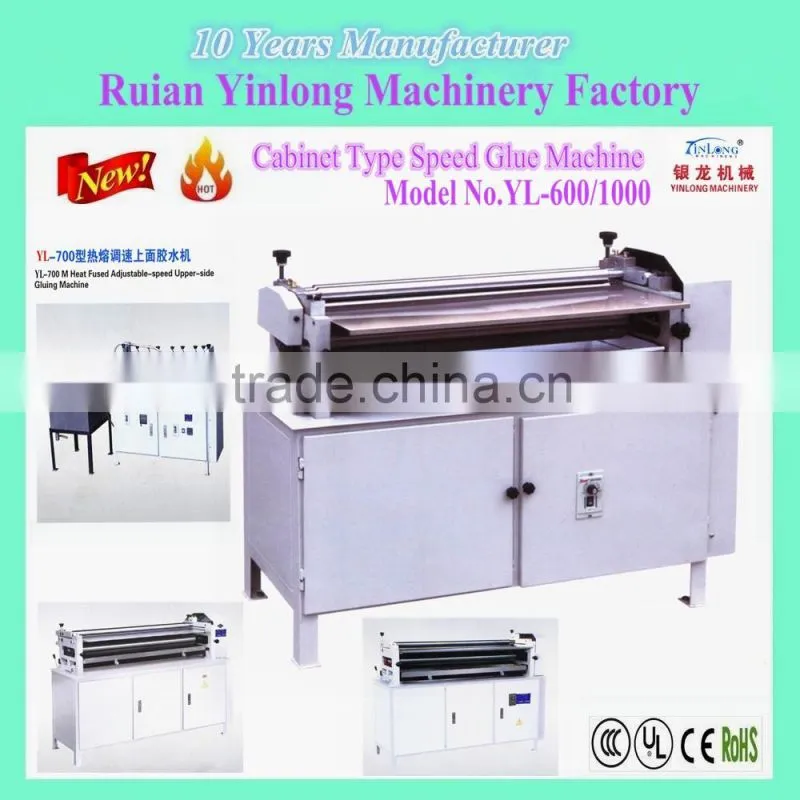

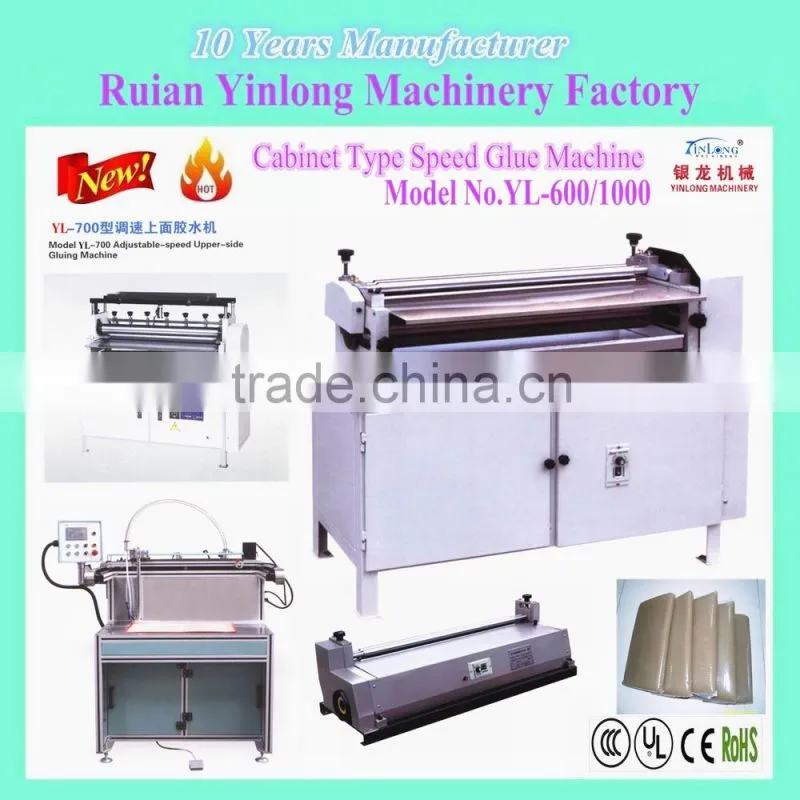

Yinglong Brand Cabinet Type Djustable-Speed Surface Sizing Machine,YL Gluing Machine,YL Double-side Gluing Machine

Name: Yinglong Brand Cabinet Type Djustable-Speed Surface Sizing Machine,YL Gluing Machine,YL Double-side Gluing Machine
Brand: Yinlong Branf
SKU: 101052167

US$ 5100.00 - 5100.00 MOQ: 5 Units

Key Specifications

Get Latest Price

Condition:

New

Function:

Gluing

Application:

Other, Machinery & Hardware

Contact Supplier Request Quote Chat Now

Ruian Yinlong Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Function Gluing

Application Other, Machinery & Hardware

Packaging Type Film, Stand-up Pouch

Packaging Material Paper

Automatic Grade Semi-Automatic

Driven Type Electric

Voltage 220V

Power 1.5KW

Place of Origin Zhejiang, China

Brand Name Yinlong Branf

Model Number YL-700-1000

Dimension(L*W*H) 3770*670*1450mm

Certification CE+ISO

After-sales Service Provided Engineers available to service machinery overseas

Model No. YL-700-1000

Cabinet Type Speed Glue Machine

Product Description

I. Overview

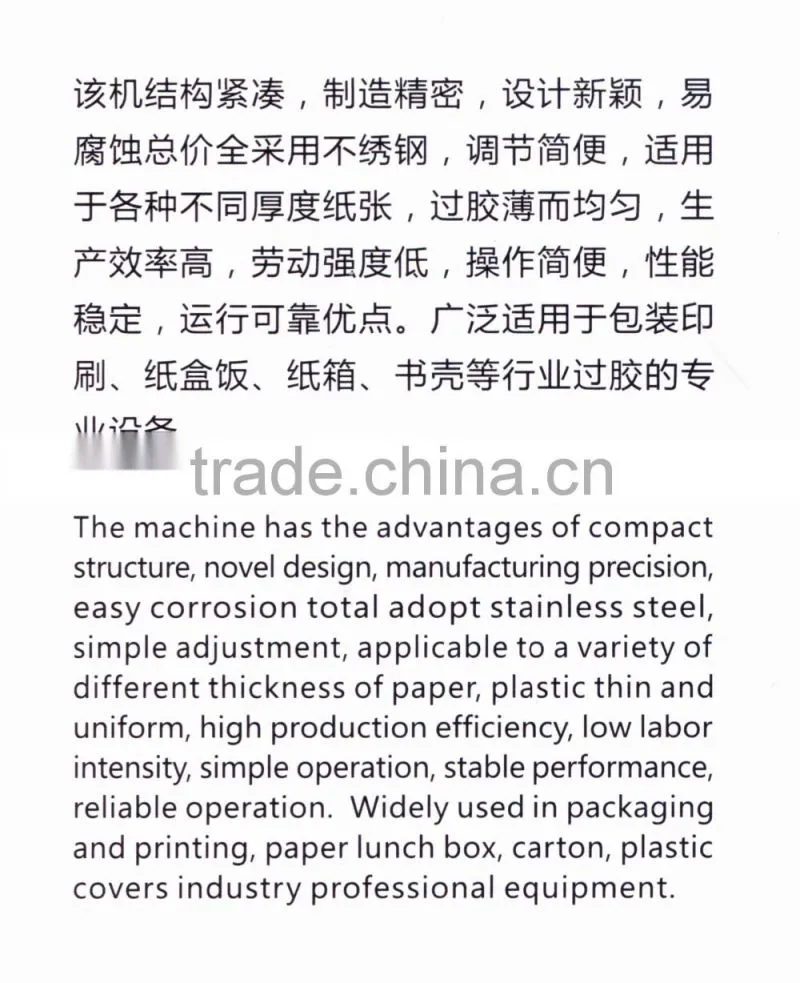

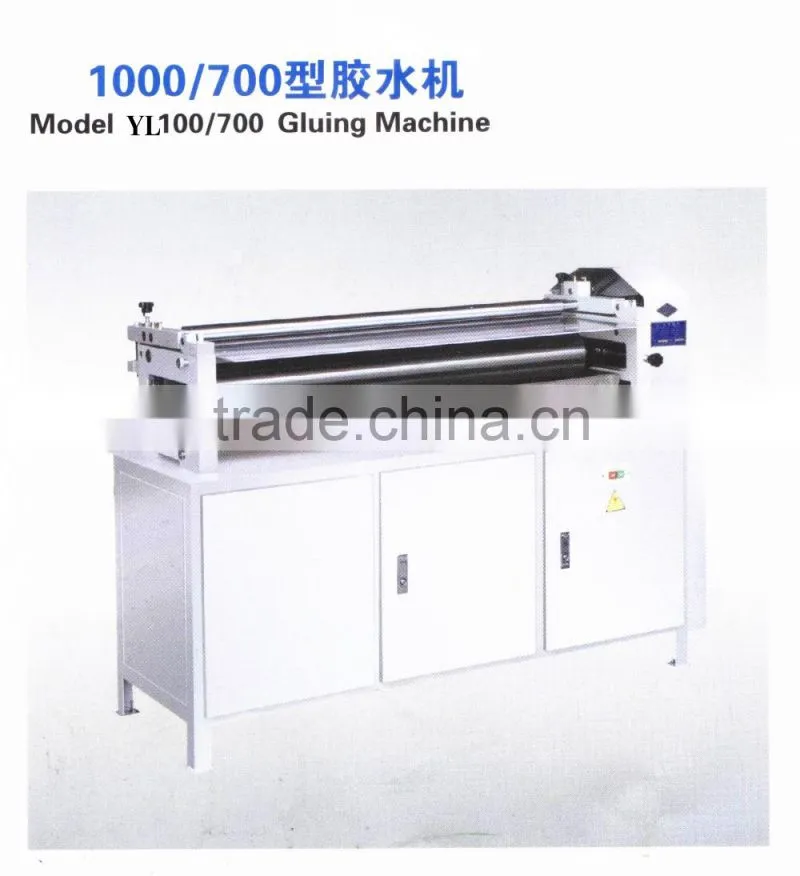

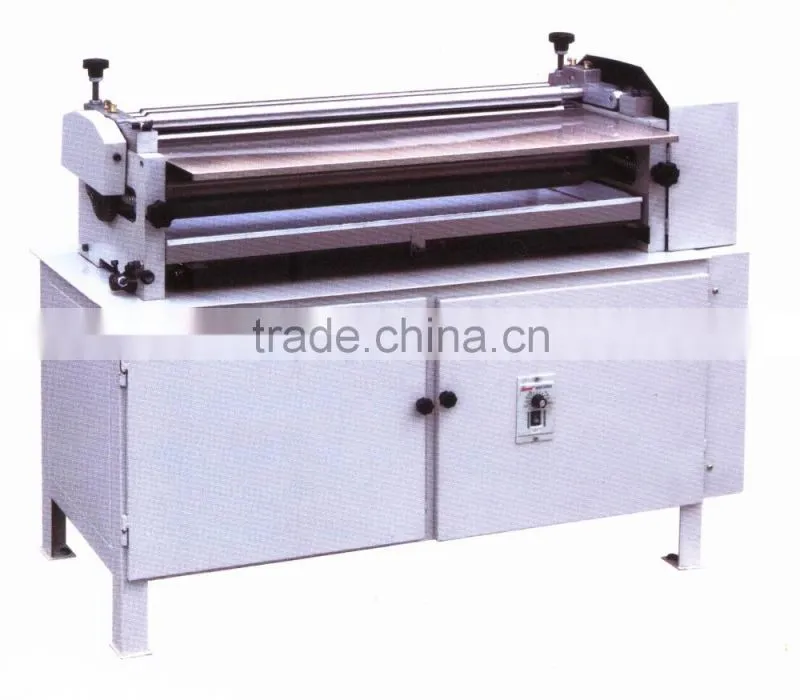

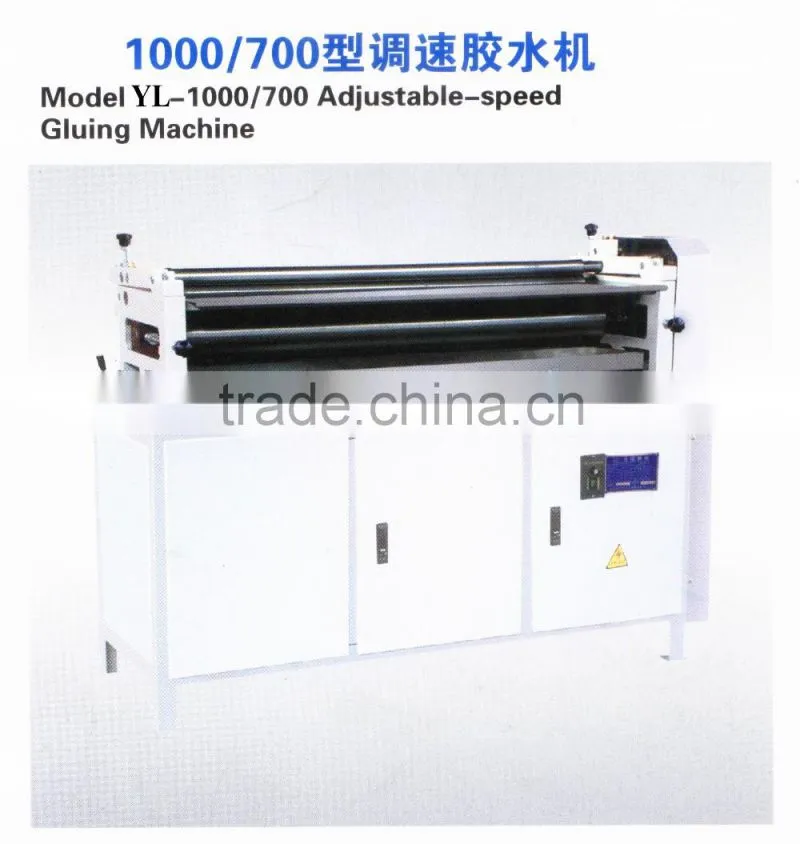

Model No.YL-700/1000 Speed Gluing Machine is special equipment for paper printing and packaging industry Gluing. This Machine design is very novel, make with meticulous care, compact structure, easy corrosion parts adopt the stainless steel, delicate appearance and durable, smooth transmission and easy to adjust, suitable for all kinds of different thickness of the paper.

II. Installation and Debugging

1.Installation : The machine must work on horizontal surface. It can not have serious tilt phenomenon, otherwise it will

make adhesive solution to gather at one end and out of plastic boxes outside

2.Commissioning: Before driving, you should turn the machine in manual way. Without any exception, you can plug

(220 v, 50 hz) turn motor speed switch from slow to fast rotation.

3. Debugging

a. The adjustment of you to bring the thickness of the plastic roller rubber: Please turn the regulating handle rubber

thickness (around this handle each one), make the belt, rubber roller moved back and forth between glue roller

clearance changes, so as to bring up the full between the thickness of the rubber, rubber thickness adjusting range

0.03 0.1 mm.

b. Adjust your pressure paper roll: Please turn the pressure roller adjusting handle (a) around each move up and down the roll, so as to bring up the paper clearance.

Note: This gap should be greater than the rubber thickness adjustment above at least. Otherwise it will lead to pressure paper roller with adhesive.

III. Dismantling of glue box

The glue box structure to the parallelogram structure.You just need to handle gear on the fixed frame lift counterclockwise direction move gel cassette handle gently remove the plastic box, on the other hand will handle clockwise after push up reach the designated position fixed frame automatically gets stuck, complete plastic box installation.

IV. Matters needing attention and Maintenance

a. When you use the motor speed control switch, you should first will be zero speed control knob.Then slowly varied

from low to high speed rotating, until you satisfied.

b. For each point of relative movement, you must often add lubricating oil.

C.In every time after work, you must clear residual adhesive solution, washing machine parts to prevent corrosion.

d. For you equipment use safety, please return this machine connected to the ground.

e.The appliances and motor parts of the machine fault, if any, must be maintenance by after-sales service

personnel.Other personnel shall not remove, the manufacturer will not warranty.

Product warranty

First of all thank you for using our products!The factory shall practise a system of after-sale guarantee.In addition to the user for improper operation and human touch loss, our company shall guarantee to provide warranty equipment.(warranty period is one year, will be subject to warranty. Warranty single in two copies, a customer retention.)Warranty, you are under the condition of normal use, if the machine fails, please contact the factory, the factory will guarantee the information provided in your retained provide tracking service for you.

Matters needing attention

1. Please must commissioning when buy.Such as after commissioning qualified, improper for you to use two coating roll bending and the bottom two roll (middle), for example: involved in foreign body (including towel machine will rag involved in), etc., result in uneven coating machine to use, our factory will not warranty.

2. The electrical part of the equipment (including motor and governor) if there is any faults in the use, please immediately inform the factory, the factory will provide maintenance services.Such as to remove the factory will not guarantee.

FEATURES

It is professional equipment for gluing the paper. It adopts the stainless steel and steel alloy to fracture to anti-corrosion, the adj u stable motor to satisfy the requirements from different papers.It has the merits of beautiful appearance,simple structure, balance transmission,convenience repair etc.

MAIN TECHNICAL PARAMETERS
Mode No.	YL600	YL720	YL920
Gluing width	600mm	720mm	920mm
Gluing' thickness	300g	300g	300g
Feeding speed	23m/min	23m/min	23m/min
Motor power	125w/220v 1 phase	125w/220v 1 phase	200w/220v 1 phase
Machine weight	100kg	130kg	150kg
Machine dimension	1020x500x440mm	1020x500x440mm	1380x820x620mm
