Antistatic Durostone sheet for Automatic Test board

Data sheet is available,ask us if you need it.

Product Description

About Ricocel Similar Wave Solder Pallet Material:

It is the antistatic black colored epoxy glass material which is highly stable at high temperature of lead free solder and flux chemicals. It is mostly used as PCB carrier or solder pallet in wave soldering process.

Solder pallet is exposed repeatedly to high temperature for example, above 300º C in soldering process. According to the various tests, this material shows excellent results in dimensional stability, water absorption and weight loss etc. Also the machining workability is superior when compared with other material on the market.

Advantages:

Work temperature: 300 degrees(long time), 350 degrees(short time)
Excellent anti-static volume resisitivity: 10^6 ~ 10^8
Excellent chemical resistance
Excellent mechanical strength for fine machining.
Excellent durability against repetitive soldering of more than 20, 000-time.
Excellent chemical resistance against soluble flux or pallet cleaner.
Excellent machinability which is durable against high feed machining.

Applications:

Wave solder pallet and reflow pallet
Electronic components automatic cartridge
Solder paste screen printing
SMT Surface Mount technology

                                                                                                                                             IR reflow curing
                                                                                                                                             Online testing jig

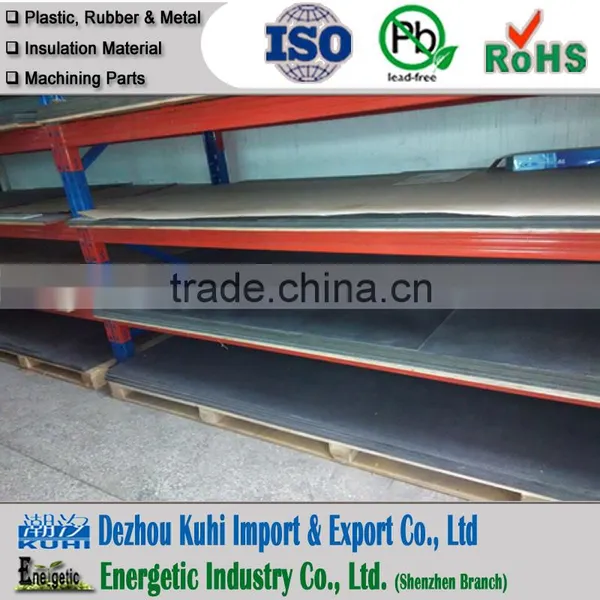

 Packed in wooden pallet or wooden boxes or customized. See pics as below

Dezhou Kuhi Import & Export Co., Ltd

Dezhou Kuhi Import & Import Co., Ltd(Kuhi) established in 2010 as a dedicated manufacturer of Engineering Plastics, and its branch company Energetic is recognized as a leading supplier in Chinese market, with focus on Engineering and Industrial materials. Kuhi and Energetic has developed a reputation for service and quality. They are always able to provide you high cost-performance & right material.

Plant 1: Xitang Industry Zone, Ningjing County, Dezhou, Shangdong Province, China

Plant 2: No.113, RD Hexie, Xinhe County, Xingtai, Hebei Province, China

Tel: +86-534-7059066 Fax.:+86-534-7059068

Branch Company(Shenzhen):

Energetic Industry Co., Ltd(HK)

Add.: No. 103, Shuxiang Rd., Xinmu, Pinghu Town, Longgang District, Shenzhen, China 518111

Tel.:+86-755-28326940  Fax.: +86-755-28326940

Sales : Marica luo

Cel/whatsapp:+86-13823296471

Skype:02

Email:marica@cn

Q: Do you provide free samples?

A: Yes, but freight will collected. If you have a courier account, that's good. If not, you can pay the courier fee via Paypal, Western union, Moneygram.

Q: Do you have agent in overseas?

Yes, we do.  If you are from these countries, then you can buy our product locally. We have stable customers and agent in these countries.

Australia, Argentina, Brazil, Indonesia, Thailand, USA, Canada, Morocco, Honduras, Venezuela, Mexico, South Africa, Oman, Saudi Arabia, UAE, Israel, Vietnam.

Q: Do you work 7x24 hours?

A: Yes, you always can contact us at any time. You can get to us from direct call, Skype, Whatsapp, Facebook, Viber. Anyway, we prefer email.

Q: Are you a manufacturer or trading company?

A: Manufacturer, you can visit our plant, if you want.

Q: Do you have the ability to machine plastic parts? If drawings provided.

A: Yes, we do. You can send us 2D, 3D file, even a sketch.

Q: Do you have a MOQ?

A:  No, we do not.  Sample order is okay for us.

Q: Do you provide CNC service?

A: Yes,  Plastic Fabrication & Machining, plastic injection, plastic extrusion. Even metal&rubber.

Q: Do you have a catalogue?

A: Yes.
