Small Diameter Blue Cloth Rubber Air Compressor Hose
Related Products:
HENGSHUI YATAI ESPECIAL RUBBER PRODUCTS CO.,LTD is establish in 2001 year.
QUALITY IS OUR COMPANY SOUL!!!
Main Product Type |
Product Details |
Hydraulic Hose and Fitting |
Steel Wire Braided Reinforcement Hose(R1 R2 1SN 2SN 1SC 2SC R16 R17) |
Steel Wire Spiral Reinforcement Hose (2SP 4SP 4SH 6SP R9 R12 R13 R15) | |
Fabric Braided Covered Hose(R5) | |
Acid and Alkali Resistant Rubber Hose | |
Air Screw Compressor Hose | |
Fabric Reinforcement Hose(R3 R6 1TE 2TE 3TE) | |
Thermoplastic Hose(R7 R8) | |
Nylon Hose(Single and Double Hose) | |
Industrial Hose |
Air/Water/Oil/Fuel/Steam/Chemical Suction and Discharge Hose |
Special Hose |
Concrete Hose, Drilling Hose, Inflatable Packer |
Machine Equipment |
Crimping Machine, Cutting Machine |
Small Diameter Blue Cloth Rubber Air Compressor Hose
RUBBER AIR COMPRESSOR HOSE CONSTRUCTION: SAE 100 R3
Tube: oil resistant synthetic rubber
Reinforcement: two textile braids wire braid
Cover: abrasion, ozone and weather resistant synthetic rubber
Temperature range (medium): -40°Cto +100°C
| I.D | O.D | Working pressure | Testpressure | Burstpressure | Bendradius | Weight | |||
| mm | inch | mm | bar | psi | bar | bar | mm | kg/m | |
| 4.8 | 3/16 | 11.8 | 415 | 6020 | 990 | 1650 | 90 | 0.31 | |
| 6.4 | 1/4 | 13.4 | 400 | 5800 | 960 | 1600 | 100 | 0.33 | |
| 7.9 | 5/16 | 15.0 | 350 | 5075 | 840 | 1400 | 115 | 0.39 | |
| 9.5 | 3/8 | 17.4 | 330 | 4785 | 790 | 1320 | 125 | 0.50 | |
| 12.7 | 1/2 | 20.6 | 275 | 3990 | 660 | 1100 | 180 | 0.59 | |
| 15.9 | 5/8 | 23.7 | 250 | 3625 | 600 | 1000 | 200 | 0.71 | |
| 19.0 | 3/4 | 27.7 | 215 | 3120 | 515 | 850 | 240 | 0.86 | |
| 25.4 | 1 | 35.6 | 165 | 2395 | 395 | 650 | 300 | 1.28 | |
| 31.8 | 1-1/4 | 43.5 | 125 | 1815 | 300 | 500 | 420 | 2.02 | |
| 38.1 | 1-1/2 | 50.0 | 90 | 1305 | 215 | 360 | 500 | 2.20 | |
| 50.8 | 2 | 64.0 | 80 | 1160 | 190 | 320 | 630 | 2.85 | |
RUBBER AIR COMPRESSOR HOSE CONSTRUCTION: SAE 100 R6
Tube: oil resistant synthetic rubber
Reinforcement: one textile braid wire braid
Cover: abrasion, ozone and weather resistant synthetic rubber
Temperature range (medium): -40°Cto +100°C
| I.D | O.D | Workingpressure | Testpressure | Burstpressure | BendRadius | Weight | |||
| mm | lnch | mm | bar | psi | bar | bar | mm | kg/m | |
| 6.4 | 1/4 | 12.7 | 28 | 400 | 55 | 110 | 65 | 0.12 | |
| 7.9 | 5/16 | 14.3 | 28 | 400 | 55 | 110 | 75 | 0.14 | |
| 9.5 | 3/8 | 15.9 | 28 | 400 | 55 | 110 | 75 | 0.16 | |
| 12.7 | 1/2 | 19.8 | 28 | 400 | 55 | 110 | 100 | 0.23 | |
| 15.9 | 5/8 | 23 | 25 | 350 | 49 | 100 | 125 | 0.29 | |
| 19 | 3/4 | 26.6 | 21 | 305 | 49 | 83 | 140 | 0.38 | |
| 25.4 | 1 | 35 | 17 | 350 | 49 | 108 | 150 | 0.46 | |

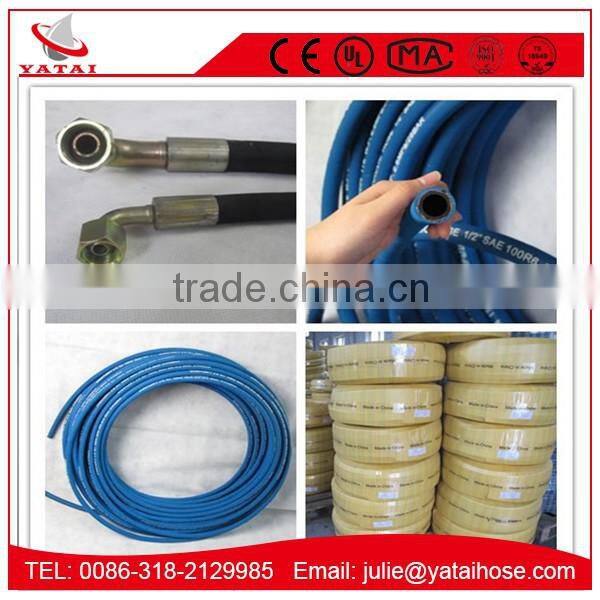

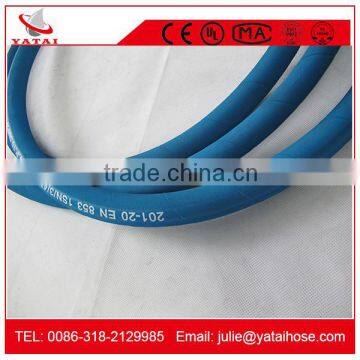

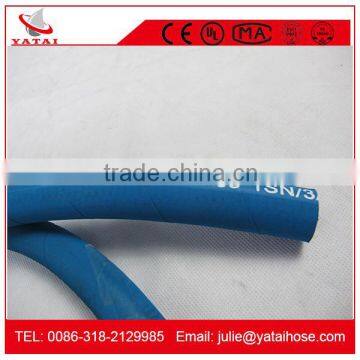

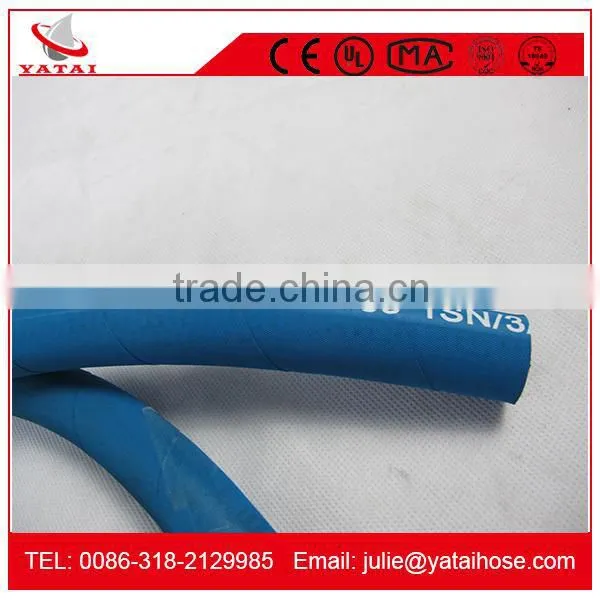

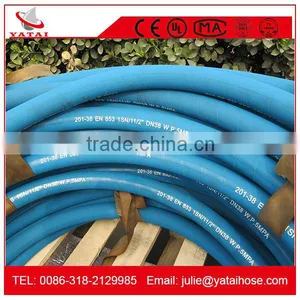

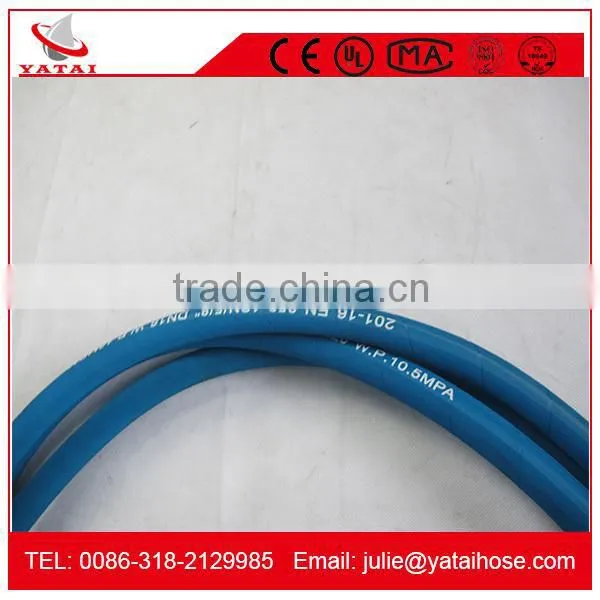

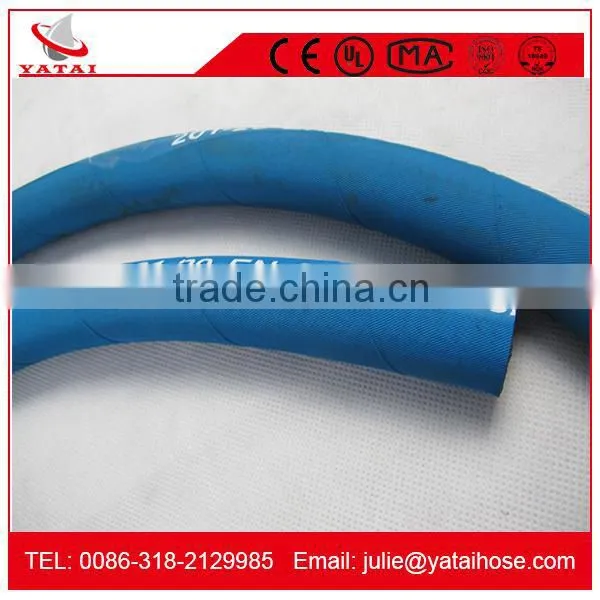

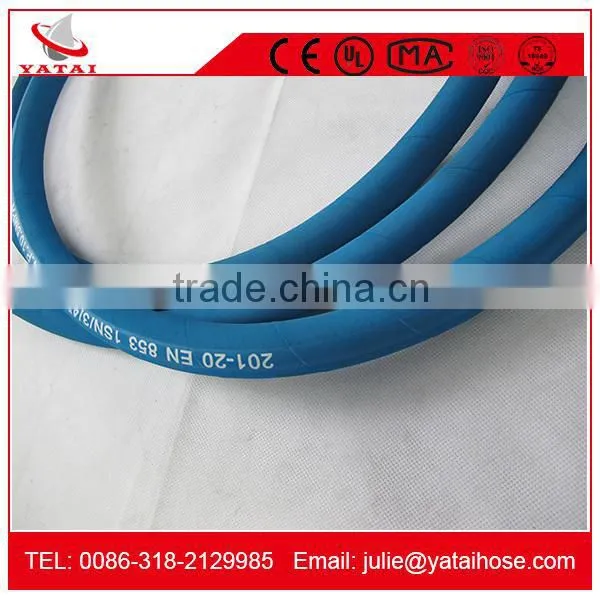

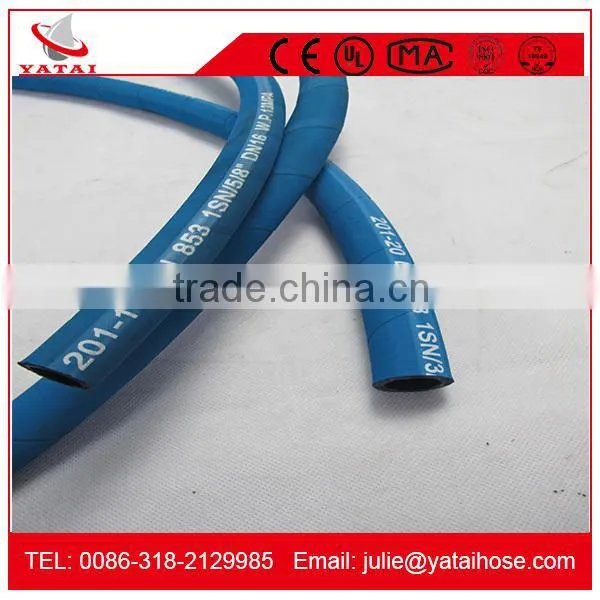

Rubber Air Compressor Hose Pictures :
Rubber Air Compressor Hose Exhibition and Certification:
Rubber Air Compressor Hose Feedback from Clients:
Welcome to Inquiry for Small Diameter Blue Cloth Rubber Air Compressor Hose :
