COMPANY INTRODUCTION:
Hengshui Yatai Especial Rubber Products Co.,LTD is established in 2001 year.
Main production:Hydraulic Hose,High Pressure Steel Wire Braided Hose,High Pressure Steel Wire Spiral Hose,SAE & DIN Standard Rubber Hose, High Pressure Hose Assembly,LPG CNG Rubber Hose,Color Rubber Hose,Steam Hose, Acid and Alkali resistant Rubber Hose, Special Rubber Hose, Inflatable Packer and so on.
Export to USA,UK,France,Italy,Korea,Russia,Brazil,Malaysia and so on.
Our products are not only reach National Standard,but also have passed ISO9001,ISO/TS16949 quality certification.

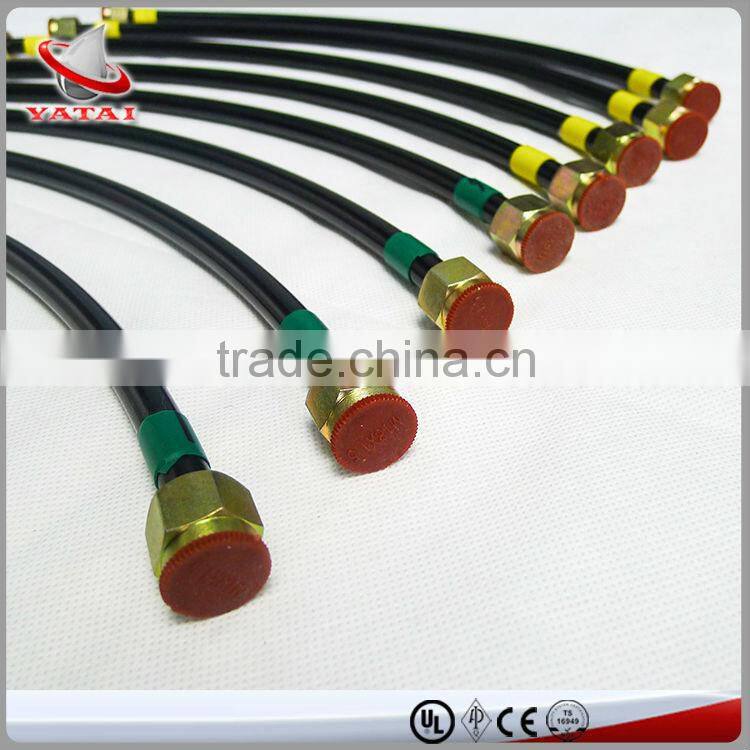

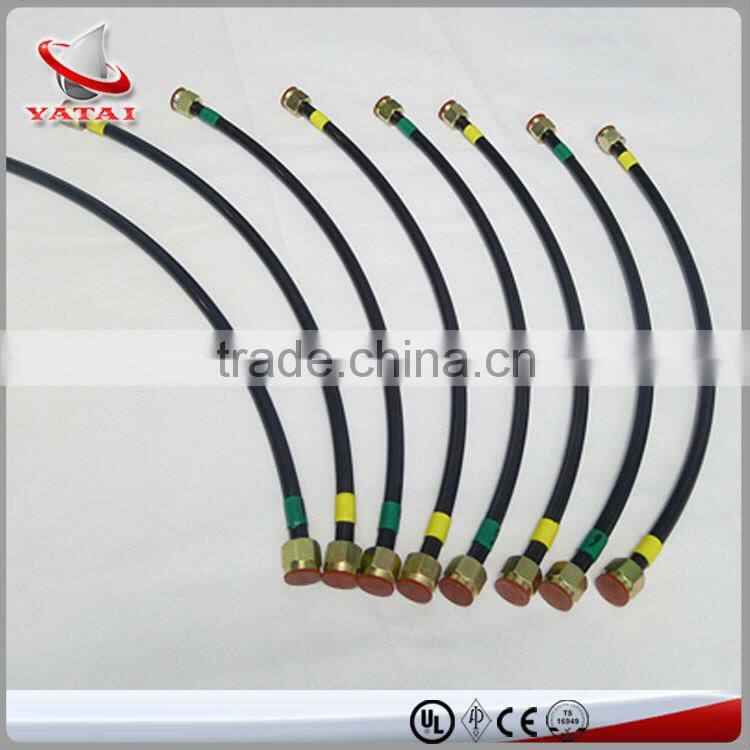

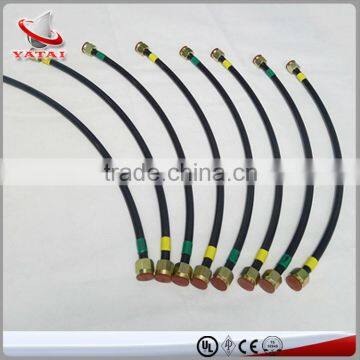

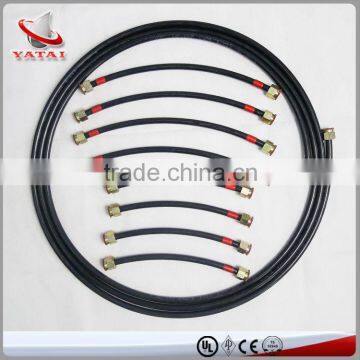

Hose Skiving Machine Steel Wire Tensile Test
Super high-pressure testing hoses is mainly produced for high-pressure and super high-pressure testing equipments. This product partly uses nanometer material, possessing the capability of high
pressure bearing and shock resistance, tough and firm structure, no deformation under high pressure and
long use time.
Structure:
1.The main material of the inner core of the hose body is nanometer synthetic rubber.
2.In the middle of the hose body it is enhanced layer intertwined by wires and nanometer
synthetic rubber adhesive coating.
3.The external protection is composed of nanometer synthetic rubber and carbon fiber.
4.Its highest pressure can reach 150MPa, and length 50m.
Use:
Mainly used in hydraulic support mine, oil field development, suitable for engineering construction, lifting
and transport, metallurgy, forging, mining equipment, ships, plastic injection machinery, agricultural machinery,
machine tools, as well as a variety of industrial sectors mechanization and automation transmission with
hydraulic system a certain pressure and temperature of the oilbased (such as mineral oil, soluble oil,
hydraulic oil, fuel oil, lubricants) and waterbased liquids (eg, emulsion, oilwater emulsion, water), etc.
and liquid transmission.
Specification and Basic Parameter:
I.D(mm) |
Working Pressure(MPa) |
Testing Pressure(MPa) |
Reference O.D(mm) |
Weight (kg/m) |
Min Bend Radius (mm) |
Joint Thread |
||||||
6 |
70 |
105 |
120 |
150 |
105 |
153 |
180 |
225 |
14.6~21.4 |
0.6~1.6 |
200~210 |
M20×1.5 |
8 |
70 |
105 |
120 |
150 |
105 |
153 |
180 |
225 |
16.6~23.4 |
0.7~1.7 |
200~220 |
M22×1.5 |
11 |
70 |
105 |
120 |
150 |
105 |
153 |
180 |
225 |
18.6~25.4 |
0.9~2.0 |
230~250 |
M27×2 |
13 |
70 |
105 |
120 |
150 |
105 |
153 |
180 |
225 |
14.6~21.4 |
1.0~2.4 |
260~300 |
M30×2 |
Steel Wire Tensile Test Pictures:
Steel Wire Tensile Test Buyer Steel Wire Tensile Test Export to All of the World:
Steel Wire Tensile Test Processing Procedures:
