COMPANY INTRODUCTION:
Hengshui Yatai Especial Rubber Products Co.,LTD is established in 2001 year.
Main production:Hydraulic Hose,High Pressure Steel Wire Braided Hose,High Pressure Steel Wire Spiral Hose,SAE & DIN Standard Rubber Hose, High Pressure Hose Assembly,LPG CNG Rubber Hose,Color Rubber Hose,Steam Hose, Acid and Alkali resistant Rubber Hose, Special Rubber Hose, Inflatable Packer and so on.
Export to USA,UK,France,Italy,Korea,Russia,Brazil,Malaysia and so on.
Our products are not only reach National Standard,but also have passed ISO9001,ISO/TS16949 quality certification.
Hengshui Yatai Steel Reinforcement Nylon Hose
StructureandCapability:
ThiskindofhoseismadeofInnerTube(Nylon)
reinforcement(HighFlexibilityNylonorThermoplastic).
ItisEthereal,Flexible,andtheinnertubeisvetySmooth.
WithafewlossofPressure,thehoseresistanceoftheMediumflowingissmall,
ItalsoownsafineperformanceofAnti-chemicalandImpulse.
DINEN855R7/SAE100R7
| I.D | O.D | Workingpressure | Burstpressure | Bendradius | Weight | Length | |||
| inch | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m | metres |
| 1/8 | 3.3 | 8.5 | 17.2 | 2500 | 68.9 | 10000 | 13 | 0.037 | 20~100 |
| 3/16 | 4.8 | 10.8 | 20.7 | 3000 | 82.7 | 12000 | 20 | 0.068 | 20~100 |
| 1/4 | 6.4 | 13 | 20.7 | 3000 | 82.7 | 12000 | 33 | 0.085 | 20~100 |
| 5/16 | 7.9 | 15.1 | 17.2 | 2500 | 68.9 | 10000 | 46 | 0.103 | 20~100 |
| 3/8 | 9.5 | 17 | 15.5 | 2250 | 62.1 | 9000 | 51 | 0.141 | 20~100 |
| 1/2 | 12.7 | 20.7 | 13.8 | 2000 | 55.2 | 8000 | 76 | 0.21 | 20~100 |
| 3/4 | 19 | 27.1 | 8.6 | 1250 | 34.5 | 5000 | 127 | 0.287 | 20~100 |
| 1 | 25.4 | 34 | 6.9 | 1000 | 27.6 | 4000 | 203 | 0.542 | 20~100 |
DINEN855R8/SAE100R8
| I.D | O.D | Workingpressure | Burstpressure | Bendradius | Weight | Length | |||
| inch | mm | mm | MPa | Psi | MPa | Psi | mm | kg/m | metres |
| 3/16 | 4.8 | 13.1 | 34.5 | 5000 | 137.9 | 20000 | 38 | 0.115 | 20~100 |
| 1/4 | 6.4 | 15.9 | 34.5 | 5000 | 137.9 | 20000 | 51 | 0.176 | 20~100 |
| 3/8 | 9.5 | 19.4 | 27.6 | 4000 | 110.3 | 16000 | 64 | 0.22 | 20~100 |
| 1/2 | 12.7 | 22.7 | 24.1 | 3000 | 96.5 | 14000 | 102 | 0.283 | 20~100 |

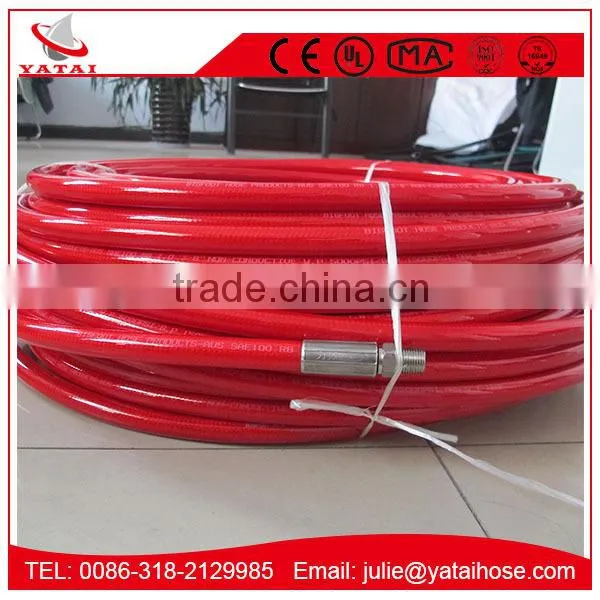

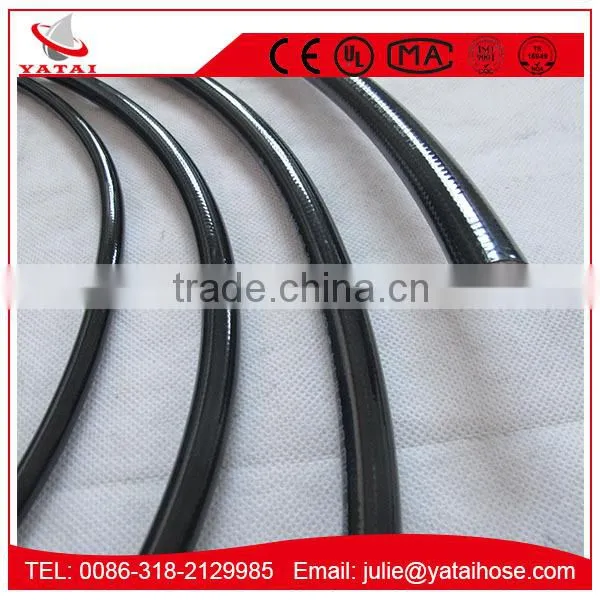

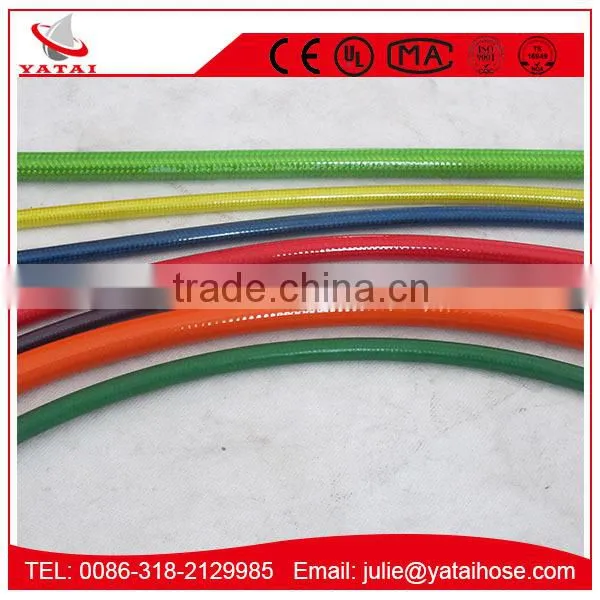

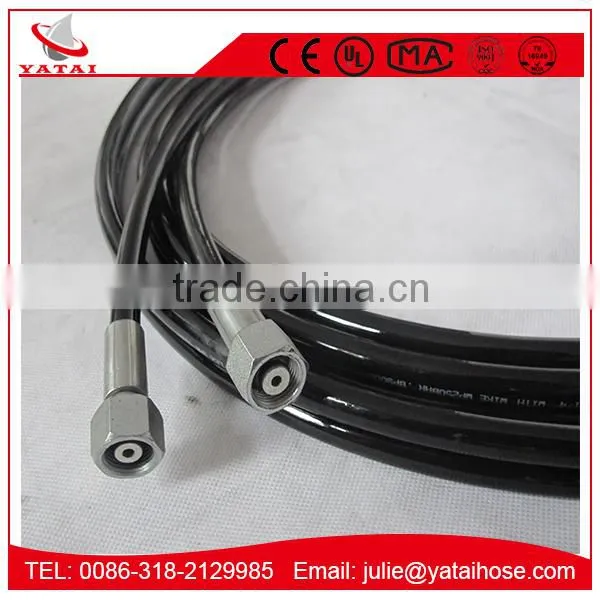

Steel Reinforcement Nylon Hose Pictures:
Steel Reinforcement Nylon Hose Buyer:
Steel Reinforcement Nylon Hose Export to All of the World:
Steel Reinforcement Nylon Hose Processing Procedures:
